Section 502 (IPDM E/R (Intelligent Power Distribution Module Engine Room))
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Auto Active Test
>>
Inspection In Auto Active Test Mode
Inspection In Auto Active Test Mode
WARNING:
This page is about a different car, the 2004 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
When auto active test mode is actuated, the following eight steps are repeated three times.

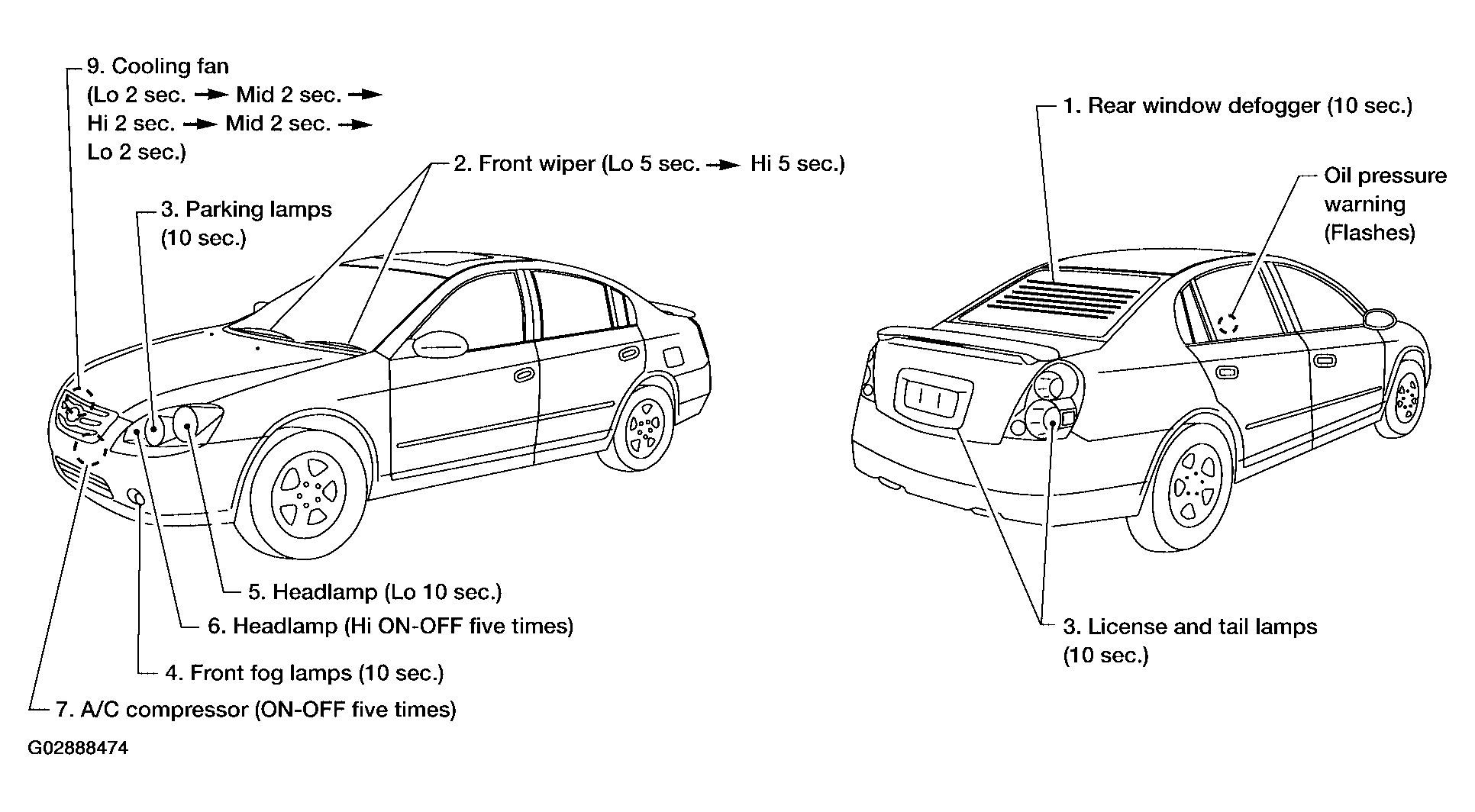

Fig 1: Identifying Auto Active Test Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
