Fail-Safe Mode

When the malfunction is detected, the ECM enters fail-safe mode.

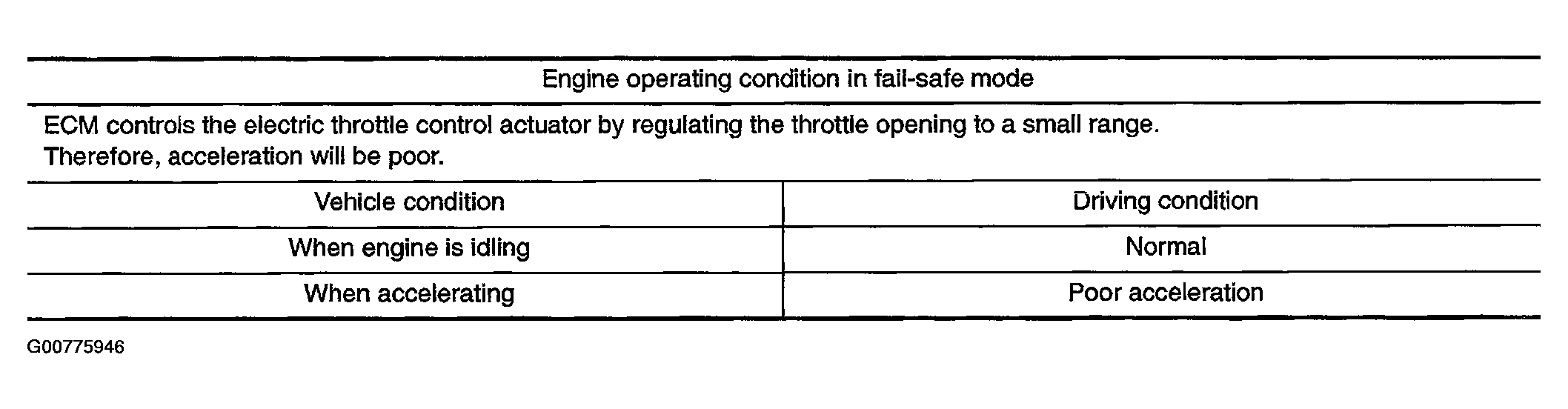

Fig 1: Identifying Fail-Safe Mode

G00775946

Courtesy of NISSAN MOTOR CO., U.S.A.
