On Board Diagnosis Logic

To judge the malfunction, the diagnosis checks that the A/F signal computed by ECM from the air fuel ratio (A/F) sensor 1 signal is not inordinately low.

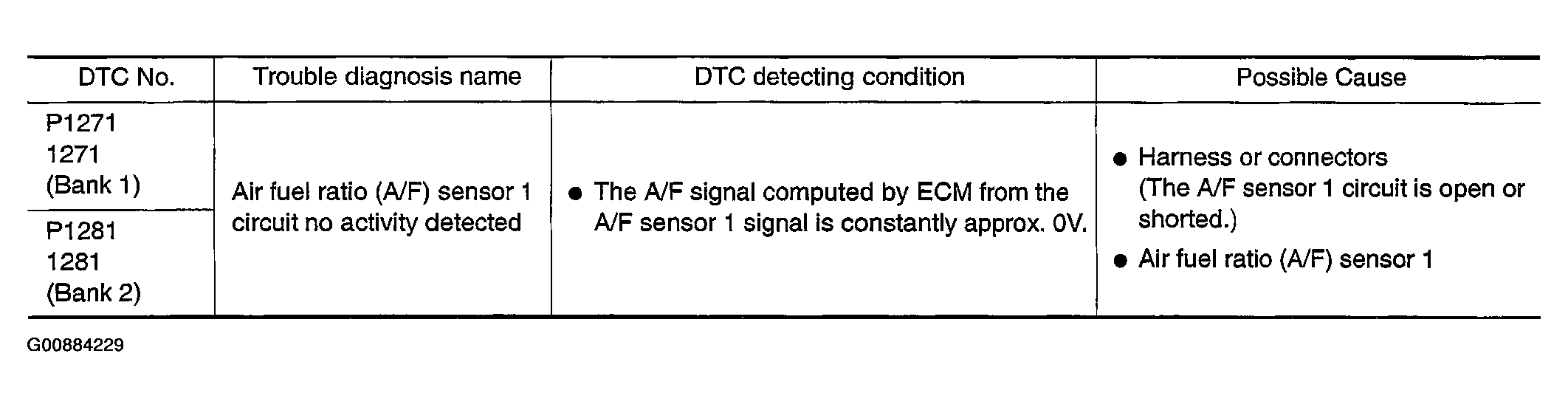

Fig 1: Diagnosis Trouble Code Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
