Cooling Fan Motors-1 And -2

  1. Disconnect cooling fan motor harness connectors.
  2. Supply cooling fan motor terminals with battery voltage and check operation.

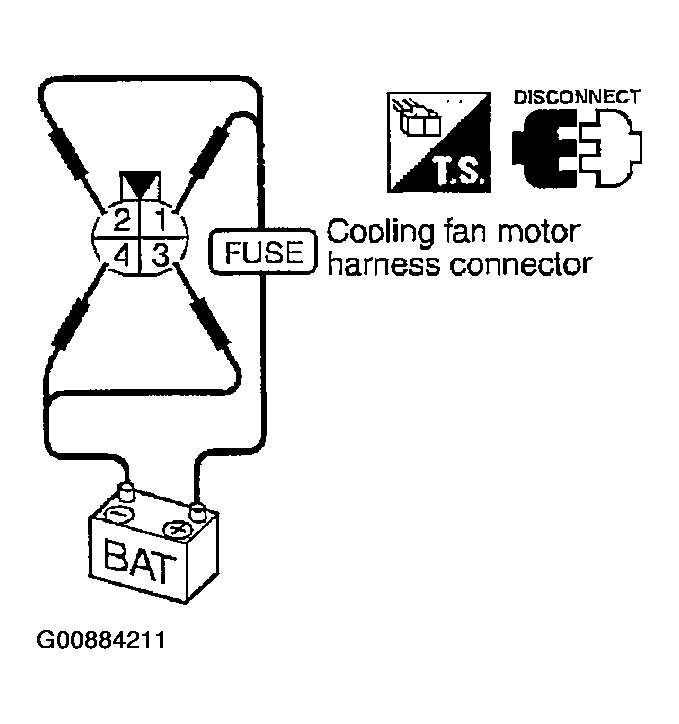

    Fig 1: Checking Operation Of Cooling Fan Motor
    G00884211Courtesy of NISSAN MOTOR CO., U.S.A.

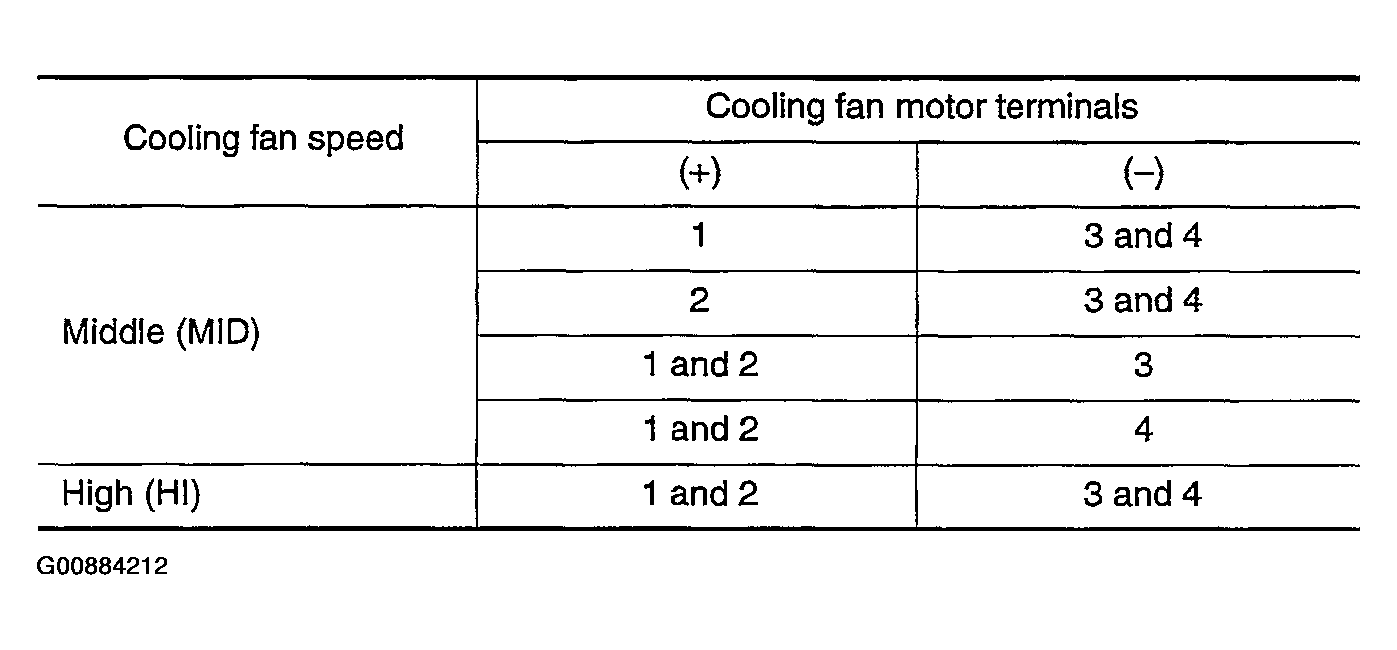

    Fig 2: Cooling Motor Terminal Specifications
    G00884212Courtesy of NISSAN MOTOR CO., U.S.A.

    Cooling fan motor should operate.

    If NG, replace cooling fan motor.
