On Board Diagnosis Logic

The MIL will not light up for these diagnoses.

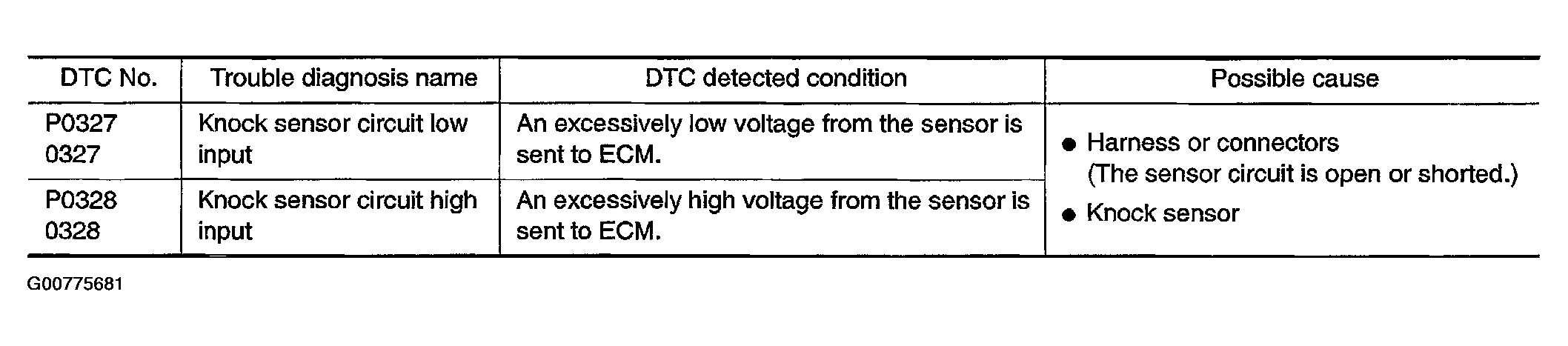

Fig 1: On Board Diagnosis Logic Chart

G00775681

Courtesy of NISSAN MOTOR CO., U.S.A.
