Consult-II Reference Value In Data Monitor Mode

Specification data are reference values.

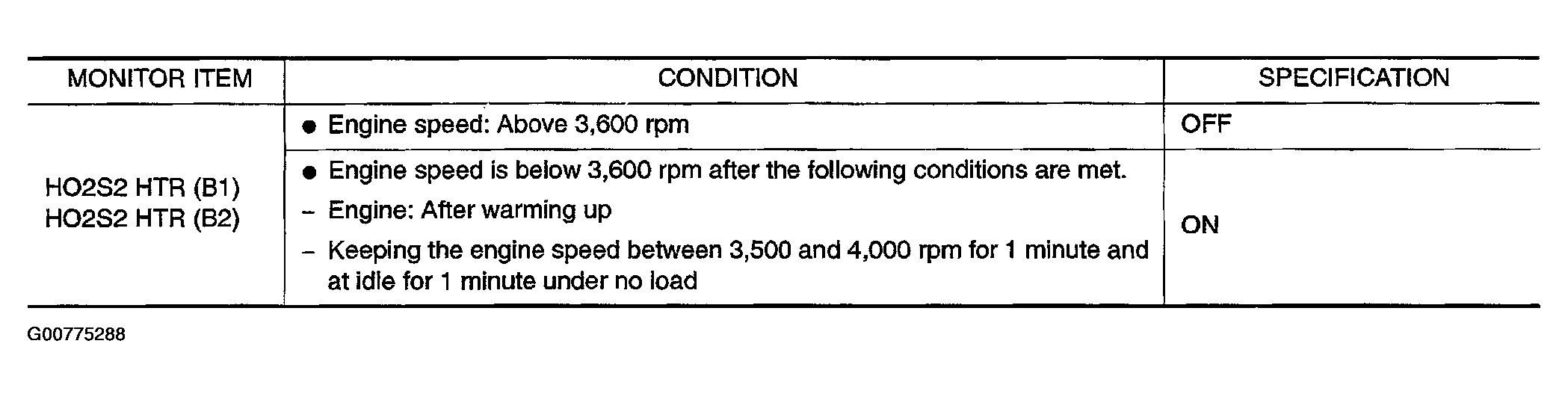

Fig 1: Identifying CONSULT-II Reference Value In Data Monitor Mode

G00775288

Courtesy of NISSAN MOTOR CO., U.S.A.
