System - Engine Mechanical & Other

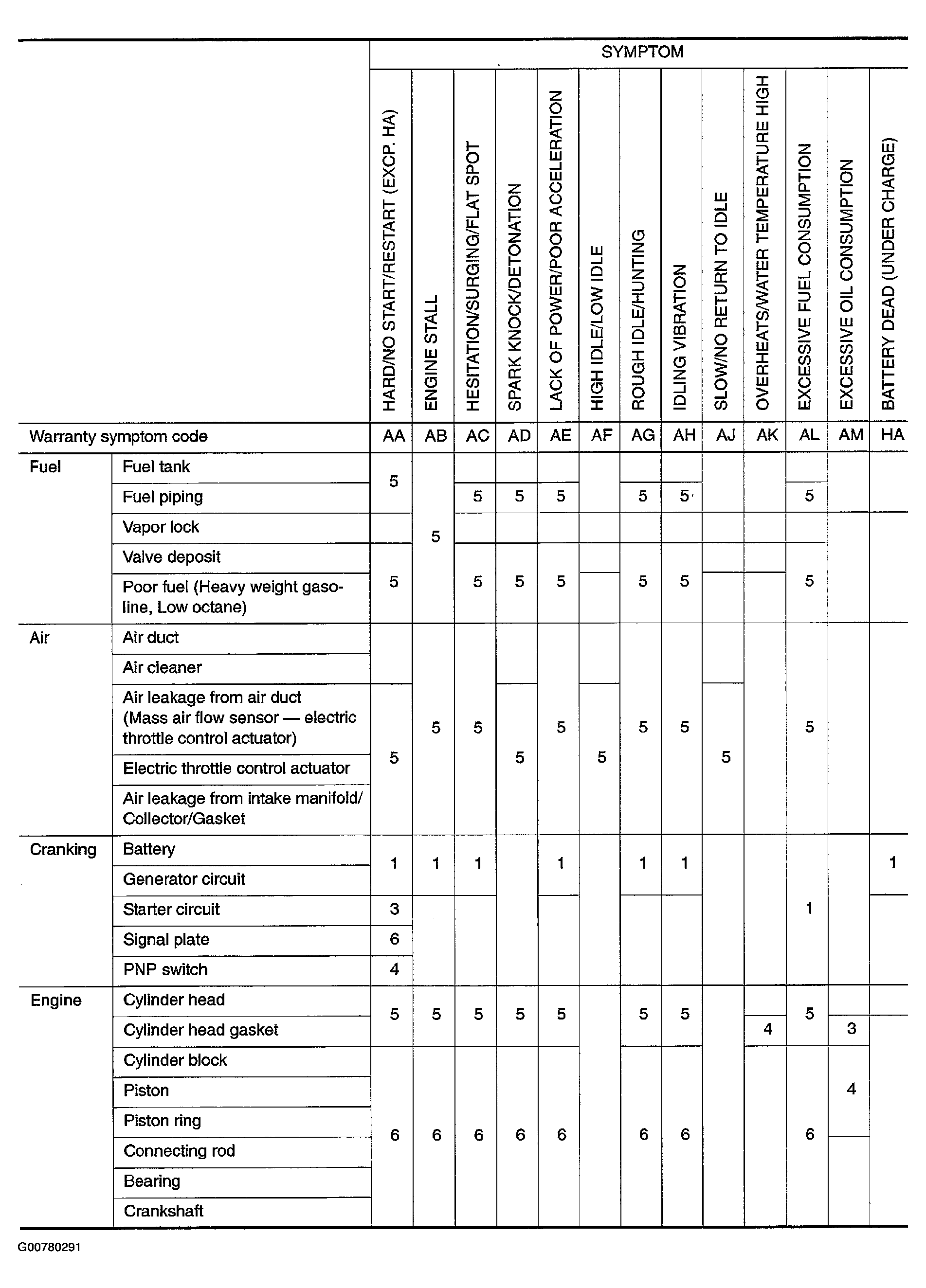

Fig 1: System - Engine Mechanical & Other Symptom Matrix Chart (1 Of 2)
G00780291Courtesy of NISSAN MOTOR CO., U.S.A.

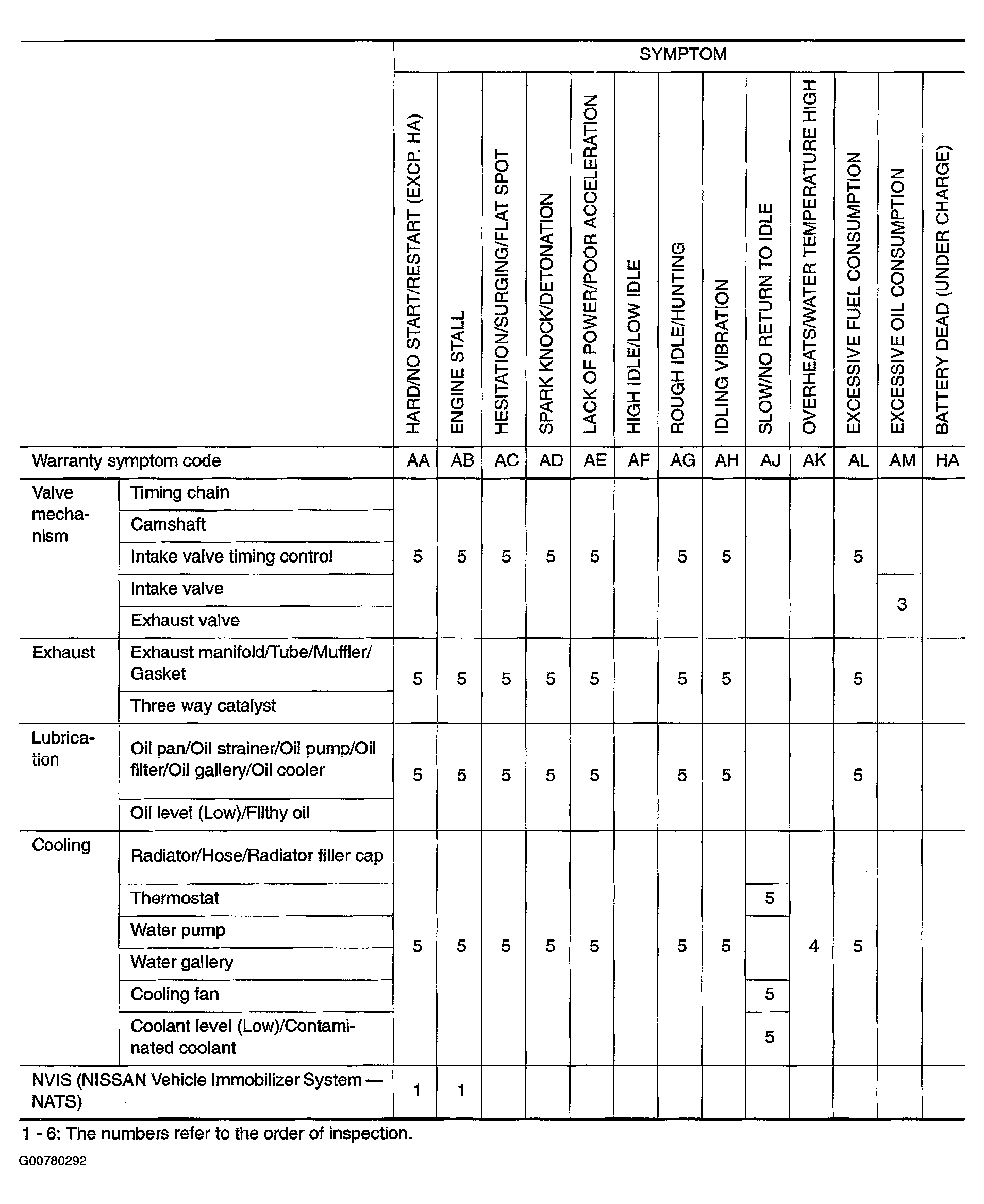

Fig 2: System - Engine Mechanical & Other Symptom Matrix Chart (2 Of 2)
G00780292Courtesy of NISSAN MOTOR CO., U.S.A.
