3. Check PNP Switch Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect PNP switch harness connector.

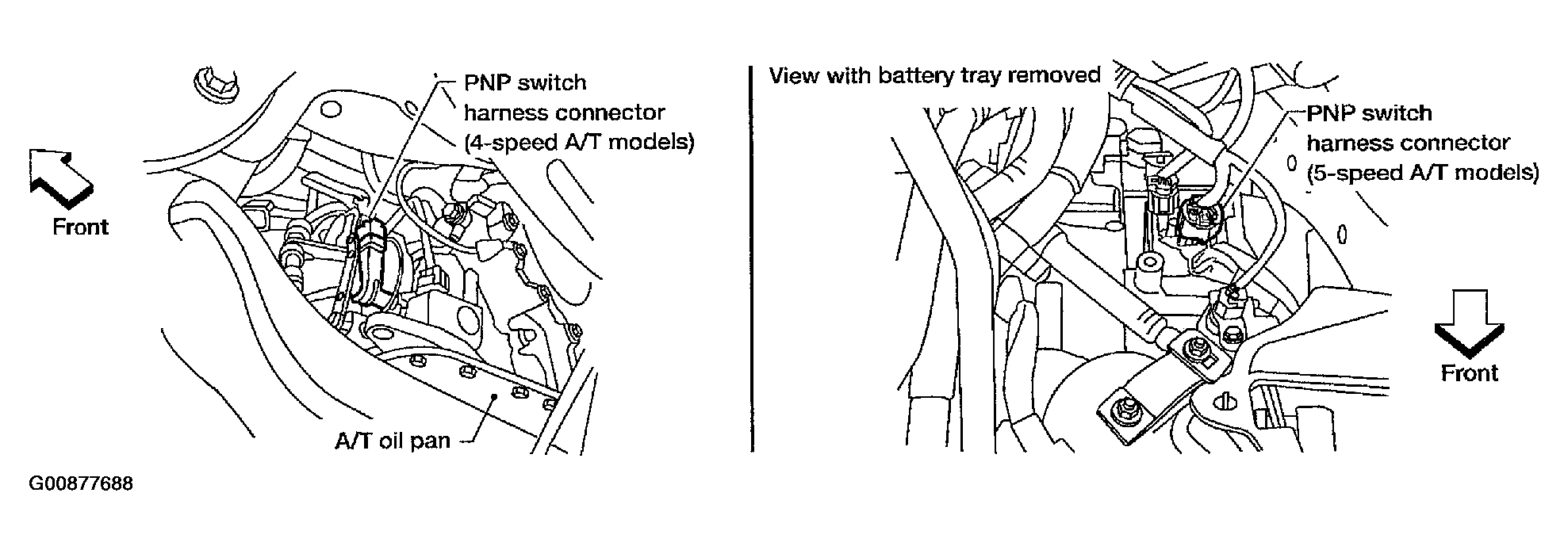

   Fig 1: Disconnect PNP Switch Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Check voltage between PNP switch terminal 3 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK: GO TO 5 .
2. NG: GO TO 4.

Fig 2: Check voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
