6. Check VIAS Control Solenoid Valve Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect VIAS control solenoid valve harness connector.
3. Turn ignition switch ON.

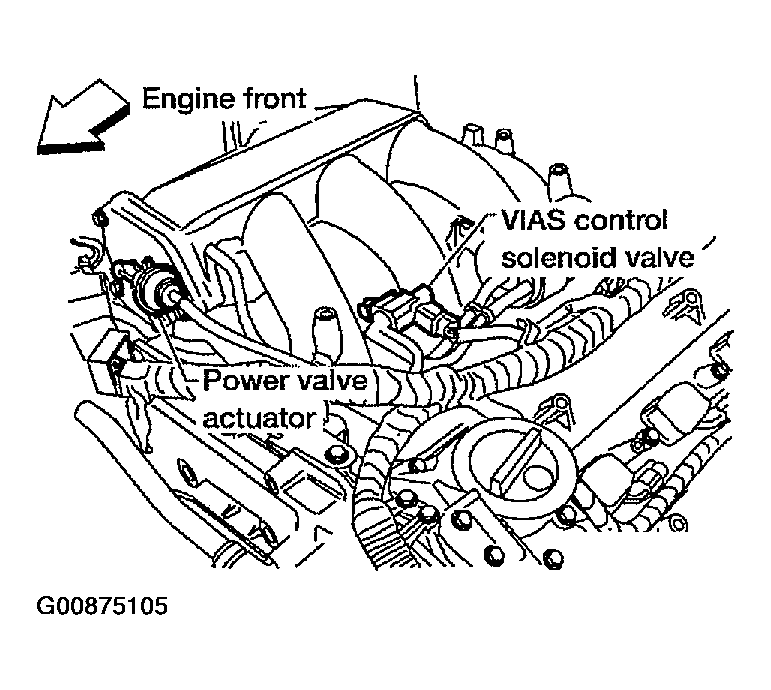

   Fig 1: Disconnect VIAS Control Solenoid Valve Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK : GO TO 8 .
2. NG : GO TO 7.

Fig 2: Check voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
