5. Check Ignition Coil Power Supply Circuit-II

1. Turn ignition switch OFF.
2. Disconnect condenser harness connector.
3. Turn ignition switch ON.

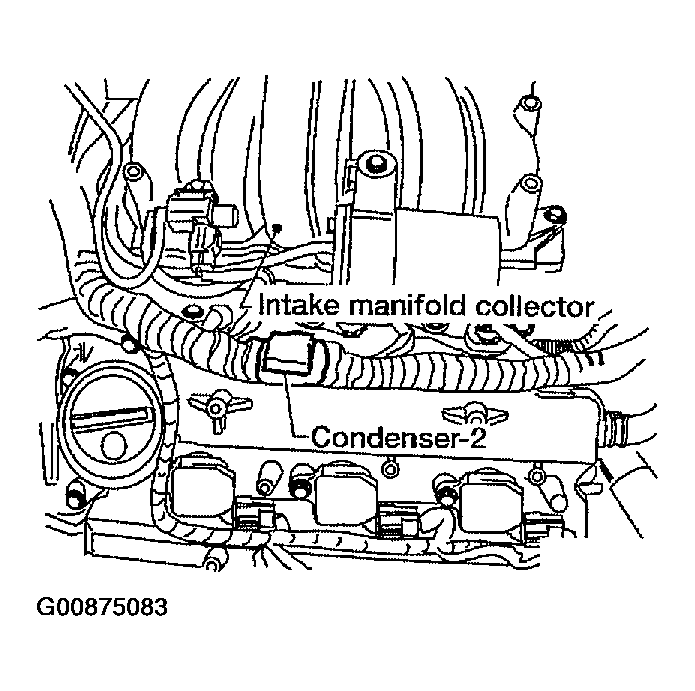

   Fig 1: Disconnect Condenser Harness Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between condenser terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK : GO TO 8 .
2. NG : GO TO 6.

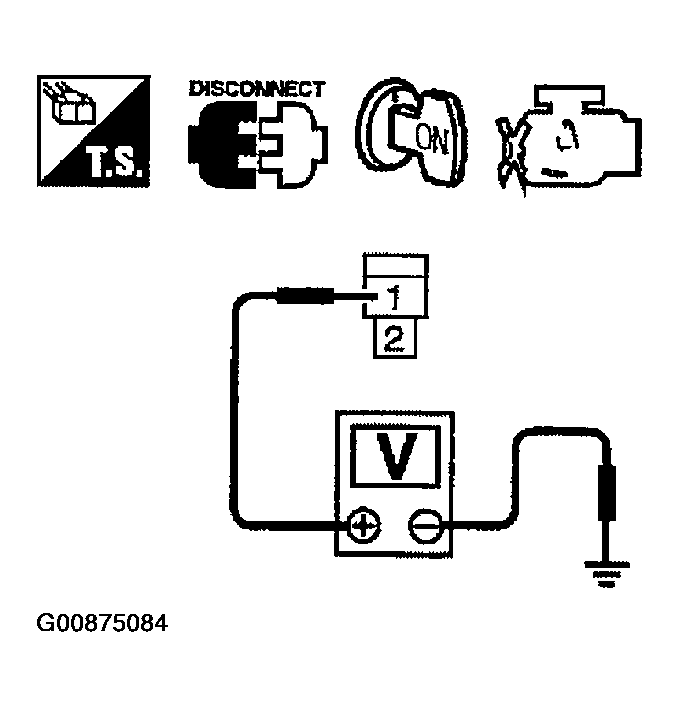

Fig 2: Check Ignition Coil Power Supply Circuit-II

Courtesy of NISSAN MOTOR CO., U.S.A.
