5. Check Condenser Power Supply Circuit-I

1. Turn ignition switch OFF.
2. Reconnect all harness connectors disconnected.
3. Disconnect condenser harness connector.
4. Turn ignition switch ON.
5. Check voltage between condenser terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage
6. Also check harness for short to ground and short to power.

OK or NG

1. OK : GO TO 9 .
2. NG : GO TO 6.

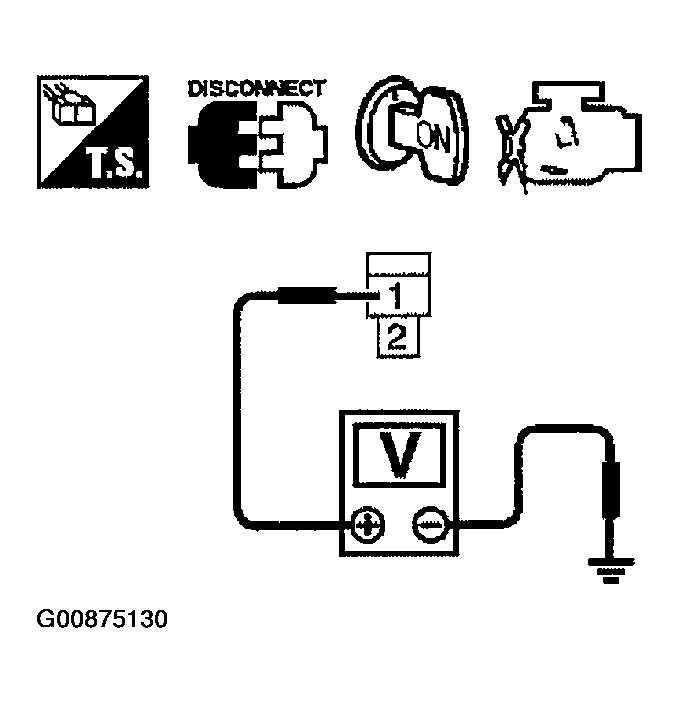

Fig 1: Check Condenser Power Supply Circuit-I

Courtesy of NISSAN MOTOR CO., U.S.A.
