Freeze Frame Data and 1st Trip Freeze Frame Data

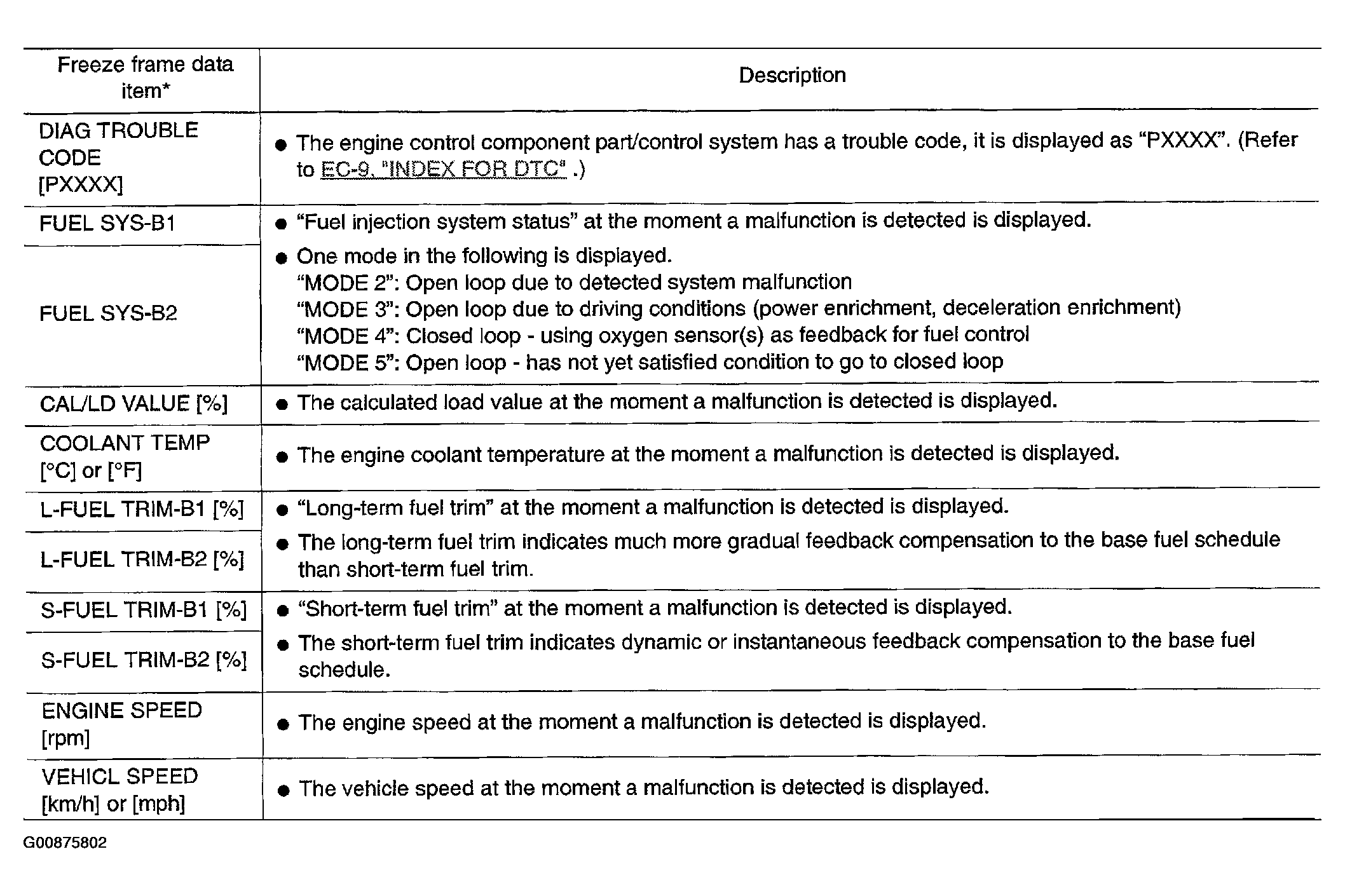

Fig 1: Freeze Frame Data and 1st Trip Freeze Frame Data (1 Of 2)
G00875802Courtesy of NISSAN MOTOR CO., U.S.A.

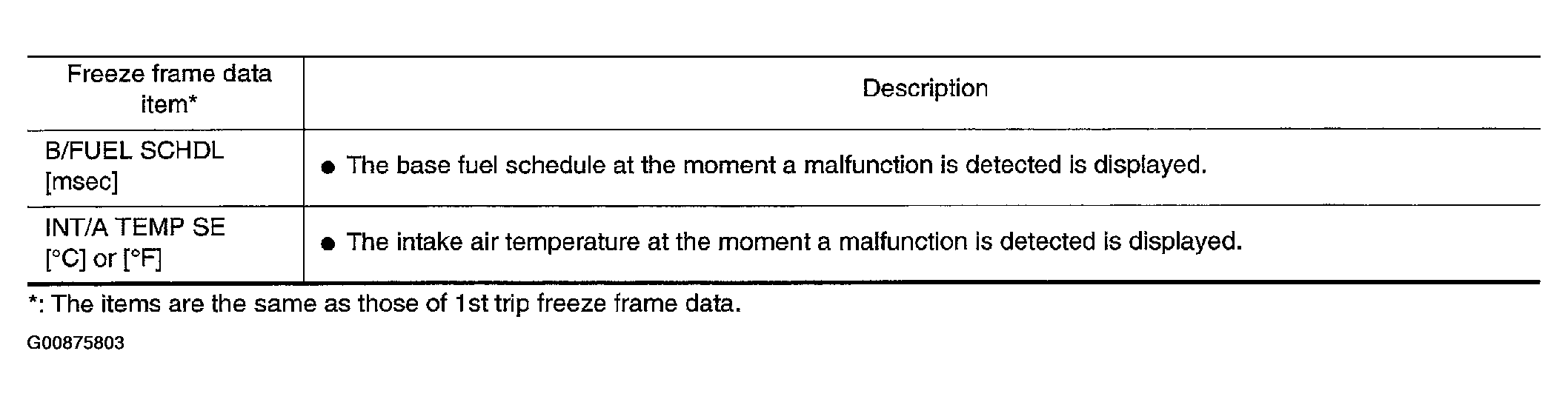

Fig 2: Freeze Frame Data and 1st Trip Freeze Frame Data (2 Of 2)
G00875803Courtesy of NISSAN MOTOR CO., U.S.A.
