2. Check Stop Lamp Switch Power Supply Circuit

1. Disconnect stop lamp switch harness connector.

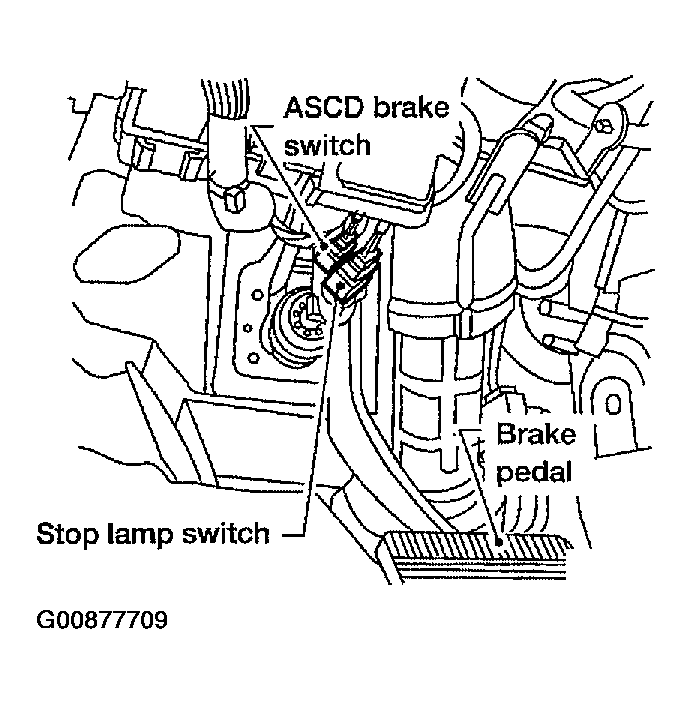

   Fig 1: Locating Brake Pedal Switches

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK: GO TO 4 .
2. NG: GO TO 3.

Fig 2: Check Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
