4. Check ASCD Clutch Switch Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect ASCD clutch switch harness connector.
3. Turn ignition switch ON.

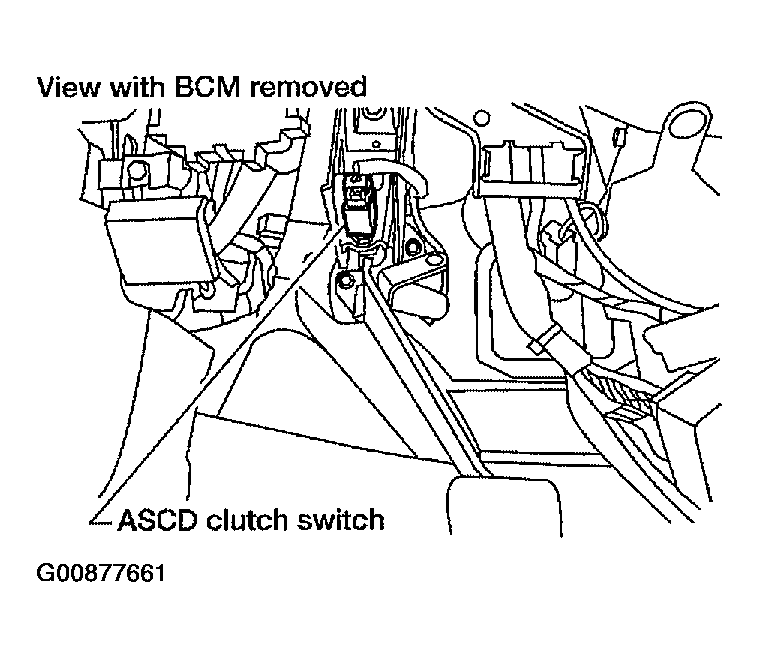

   Fig 1: Locating ASCD Clutch Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between ASCD clutch switch terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK: GO TO 6 .
2. NG: GO TO 5.

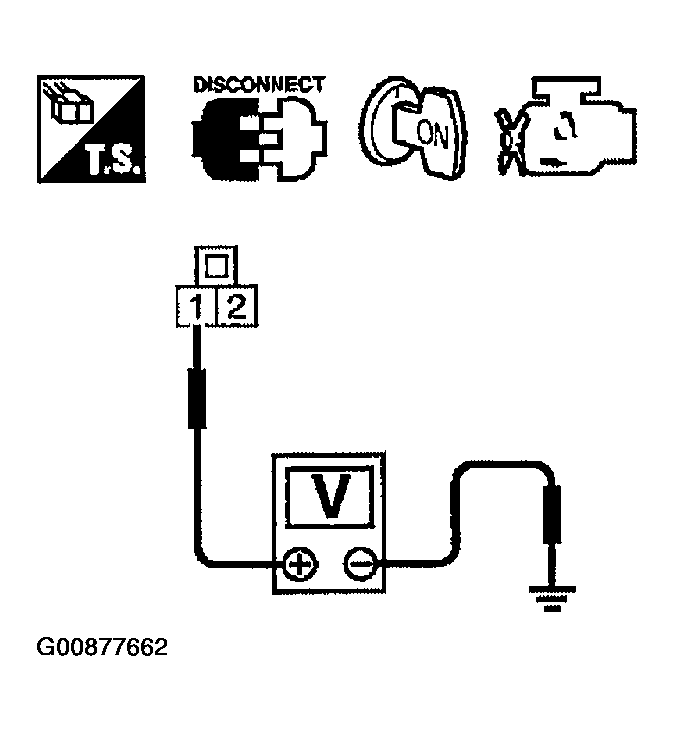

Fig 2: Check Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
