13. Check Stop Lamp Switch Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.

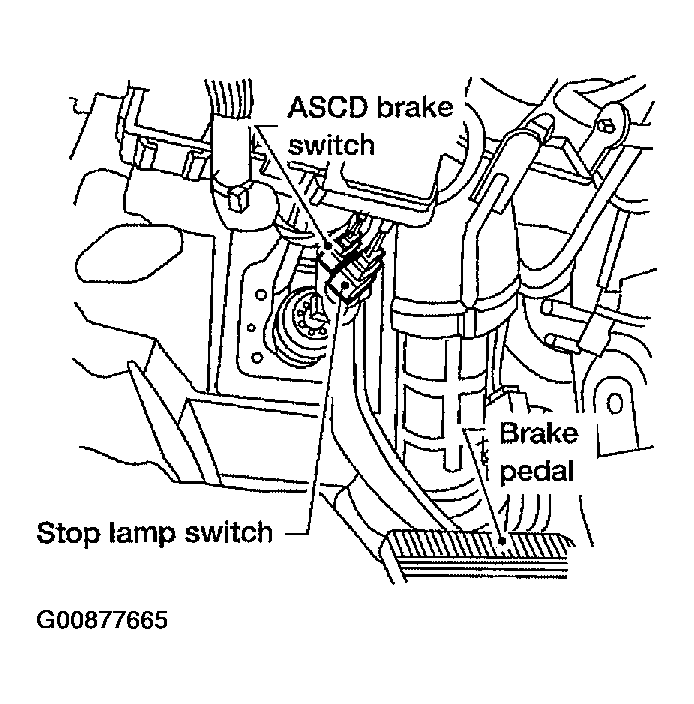

   Fig 1: Locating Brake Pedal Switches

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK: GO TO 15 .
2. NG: GO TO 14.

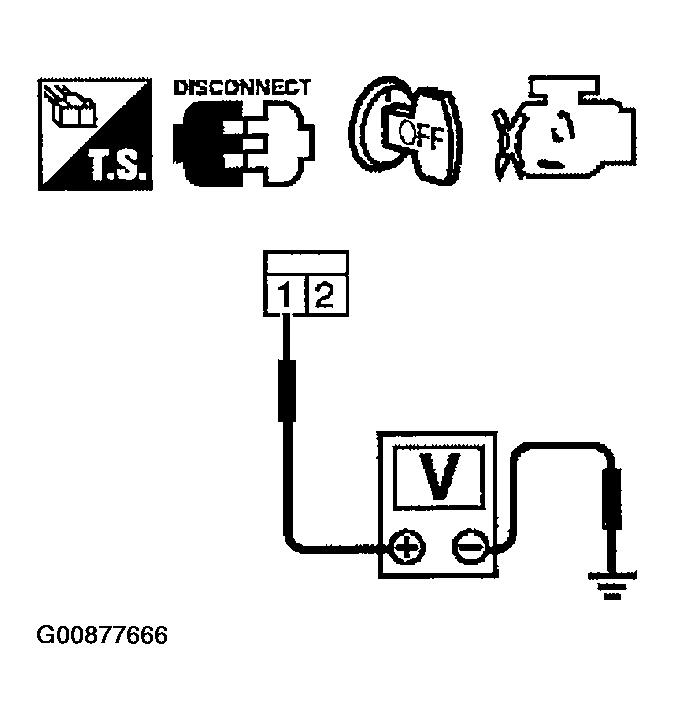

Fig 2: Check voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
