5. Check EVAP Control System Pressure Sensor Connector

  1. Disconnect EVAP control system pressure sensor harness connector.

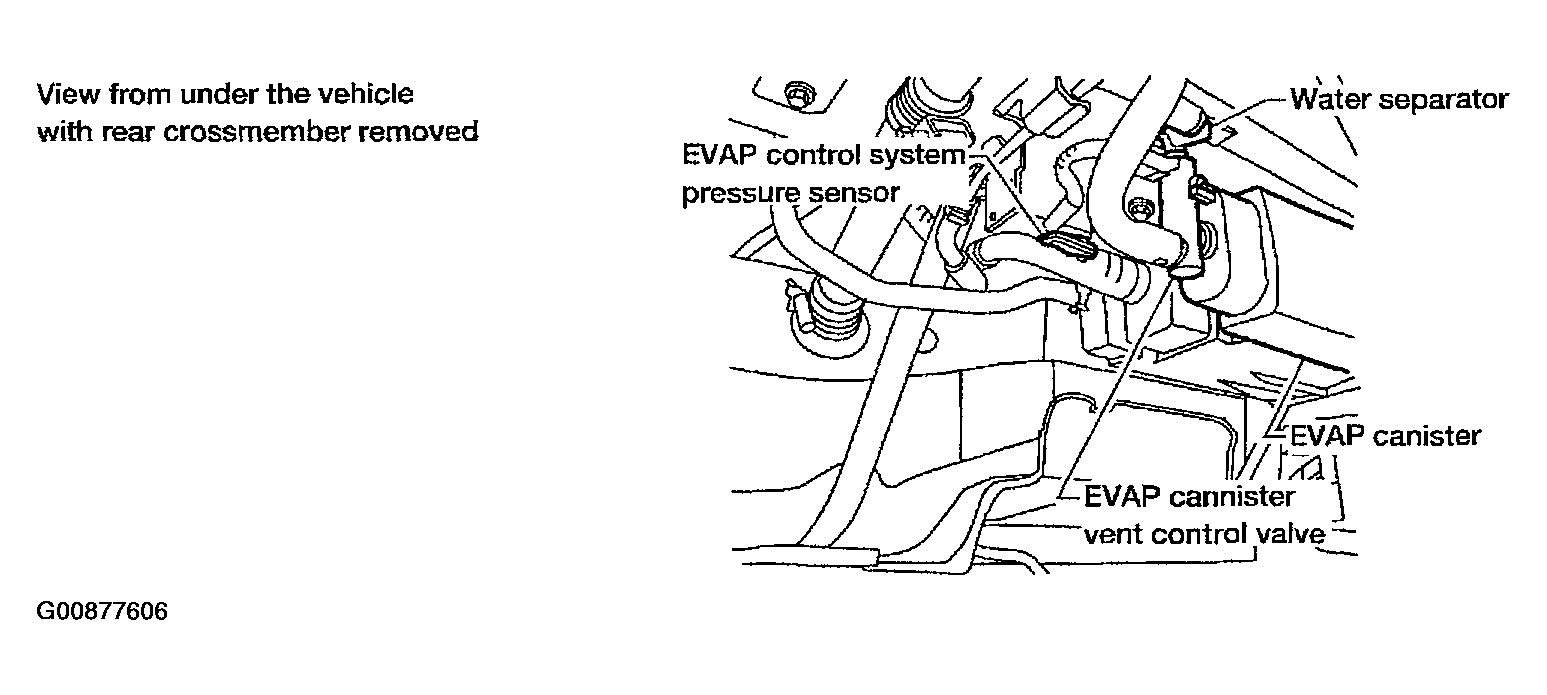

    Fig 1: Disconnect EVAP control system pressure sensor harness connector
    G00877606Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check connectors for water.
    1. Water should not exist.
