With CONSULT-II

  1. Start engine.
  2. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II. Check that engine speed varies according to the valve opening.

OK or NG

  1. OK: GO TO 8 .
  2. NG: GO TO 7.

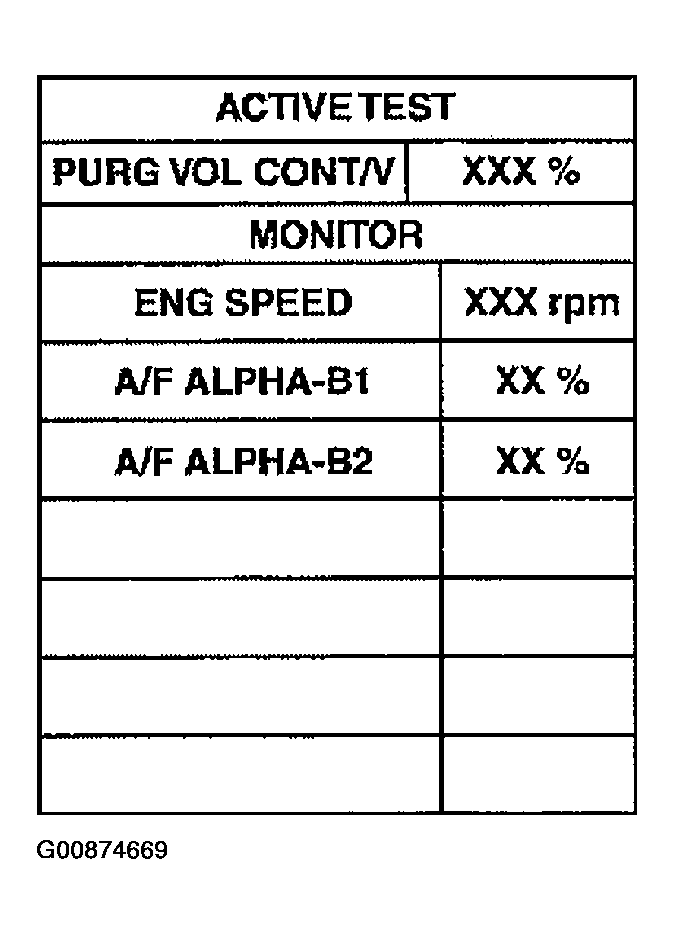

Fig 1: CONSULT-II Display Screen
G00874669Courtesy of NISSAN MOTOR CO., U.S.A.
