1. Check Exhaust Gas Leak

  1. Start engine and run it at idle.
  2. Listen for an exhaust gas leak before three way catalyst (manifold).

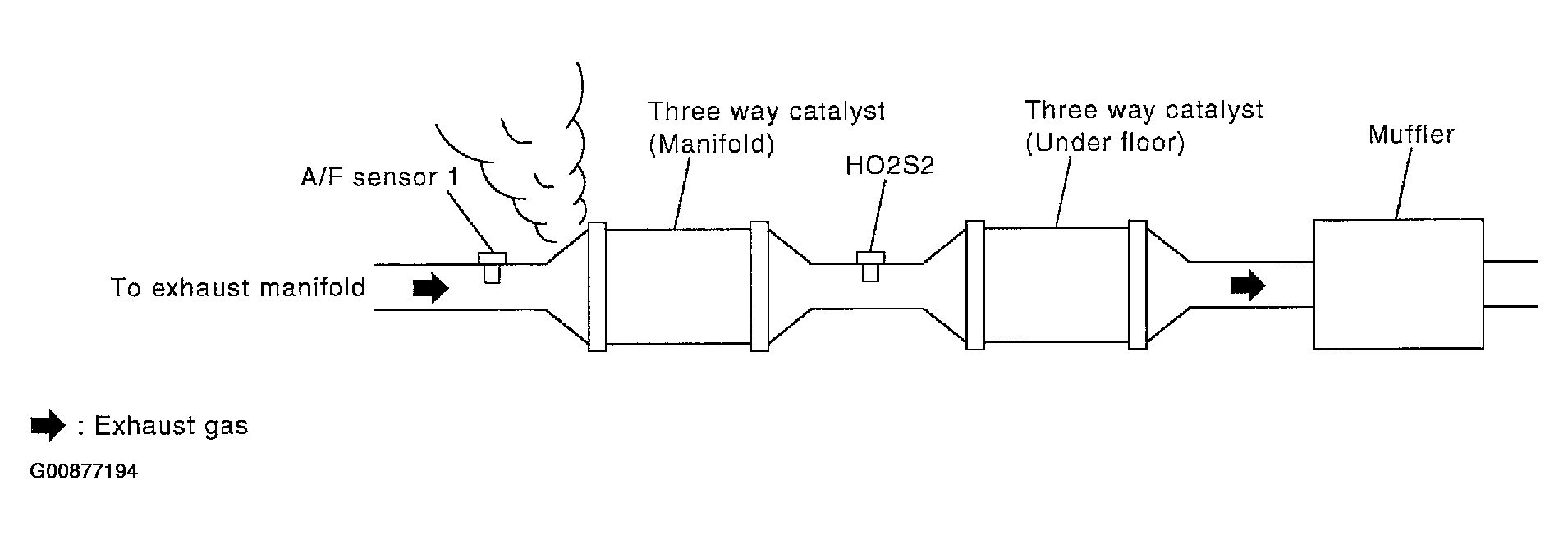

Fig 1: Listen For An Exhaust Gas Leak
G00877194Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 2.
  2. NG: Repair or replace.
