4. Check Electronic Controlled Engine Mount Power Supply Circuit

1. Turn ignition switch OFF.
2. Disconnect front electronic controlled engine mount harness connector and rear electronic controlled engine mount harness connector (A/T models only).

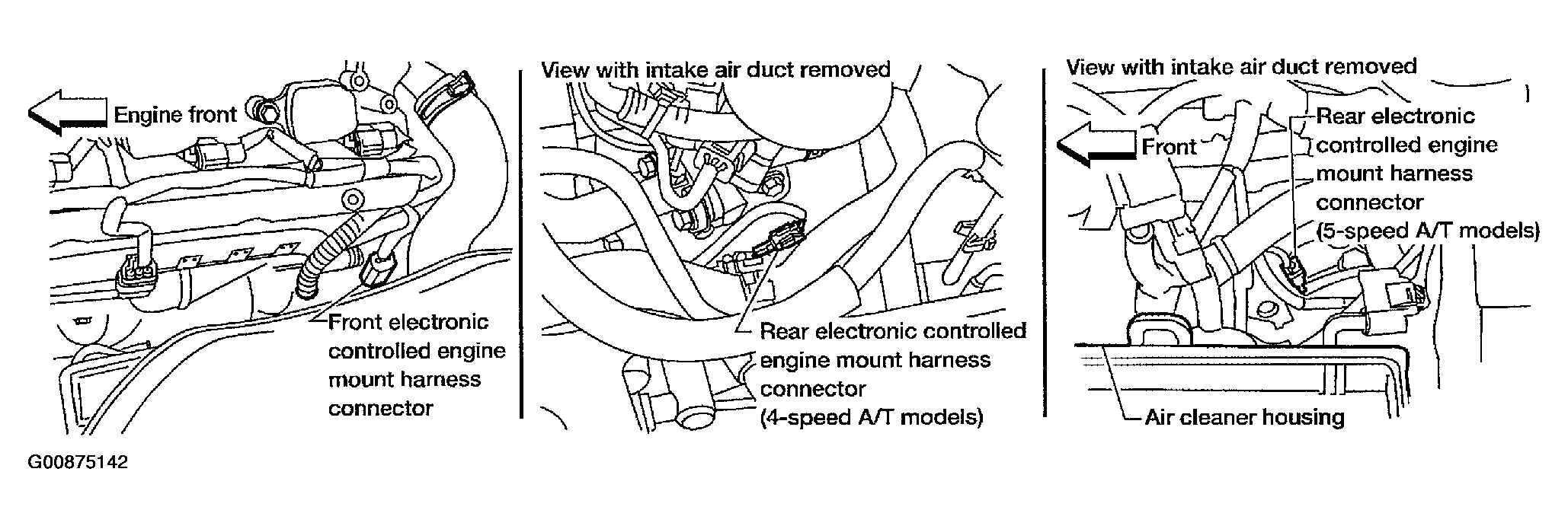

   Fig 1: Check Electronic Controlled Engine Mount Power Supply Circuit

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between electronic controlled engine mount terminal 3 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

OK or NG

1. OK : GO TO 6 .
2. NG : GO TO 4.

Fig 2: Check voltage

Courtesy of NISSAN MOTOR CO., U.S.A.
