Home >> Nissan-Datsun >> 2004 >> Frontier Base, Standard >> Repair and Diagnosis >> Steering >> Power Steering System >> Service Data And Specifications (SDS) >> Power Steering Gear >> Model: D600

Model: D600

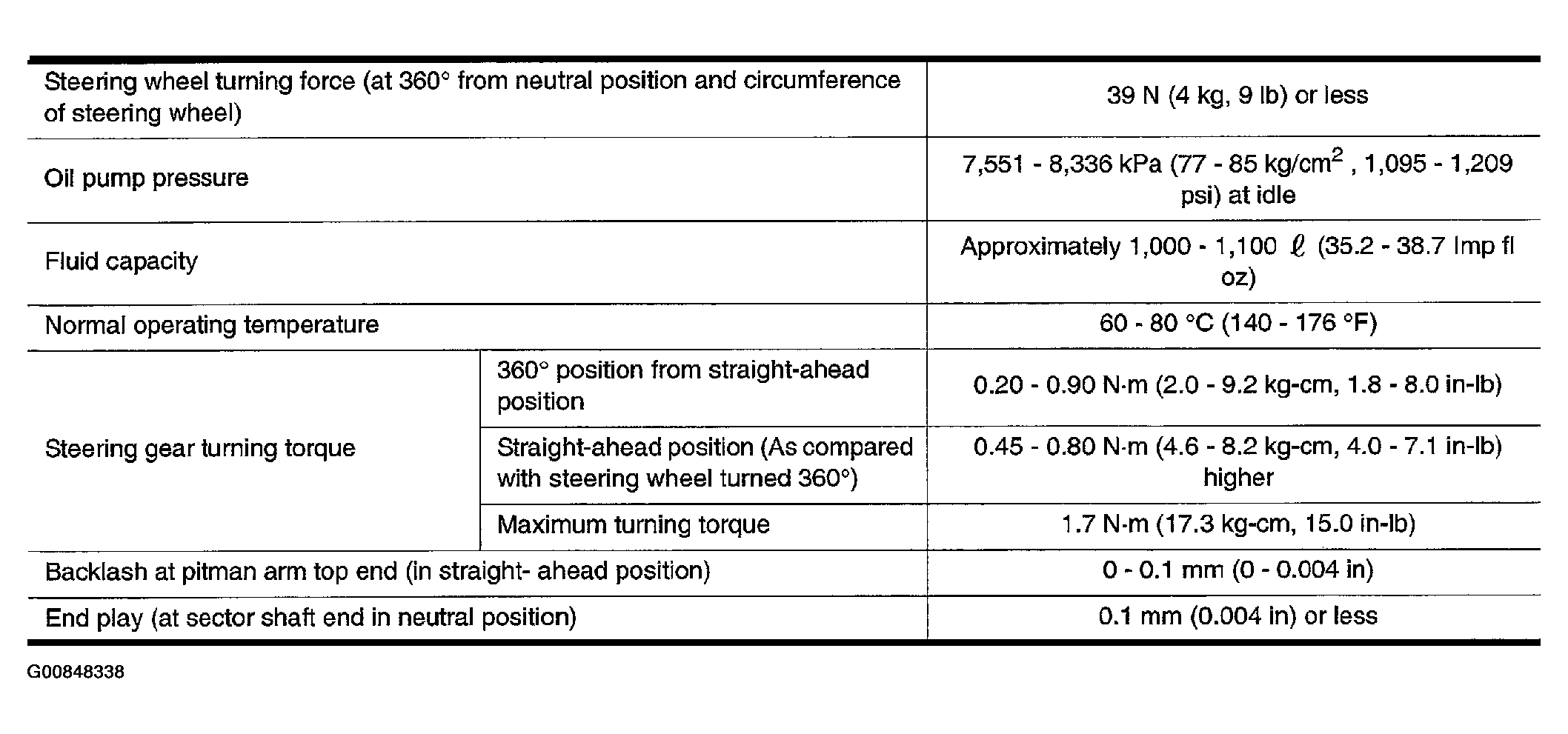

Fig 1: Power Steering Gear Specifications Chart (Model: D600)

G00848338

Courtesy of NISSAN MOTOR CO., U.S.A.
