Inspection Procedure

1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector which is located under LH dash panel near the fuse box cover.

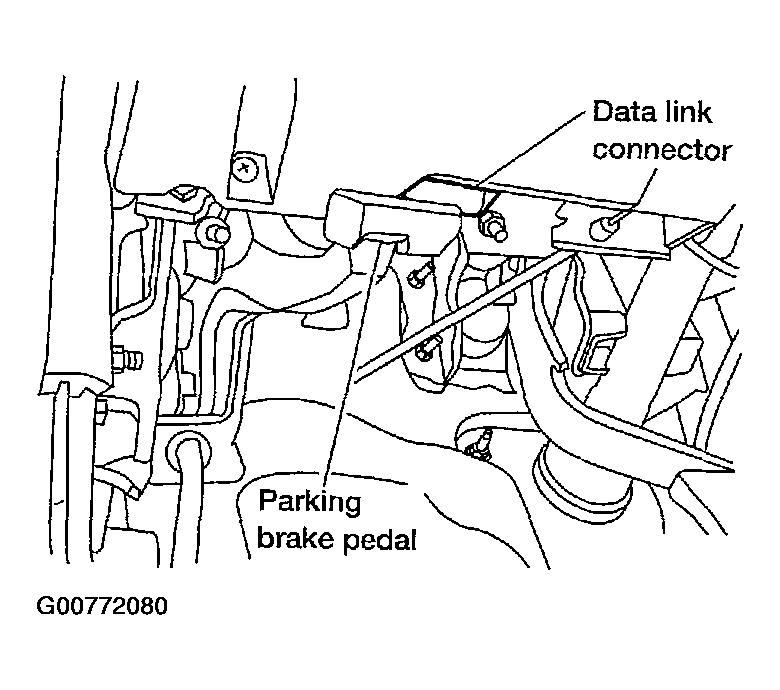

   Fig 1: Identifying Data Link Connector

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Turn ignition switch ON.
4. Touch "START (NISSAN BASED VHCL)".
   Fig 2: Displaying "START (NISSAN BASED VHCL)" Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Touch "ENGINE".

   If "ENGINE" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

   Fig 3: Displaying "ENGINE" Mode

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Perform each diagnostic test mode according to each service procedure.

For further information, see the CONSULT-II Operation Manual.

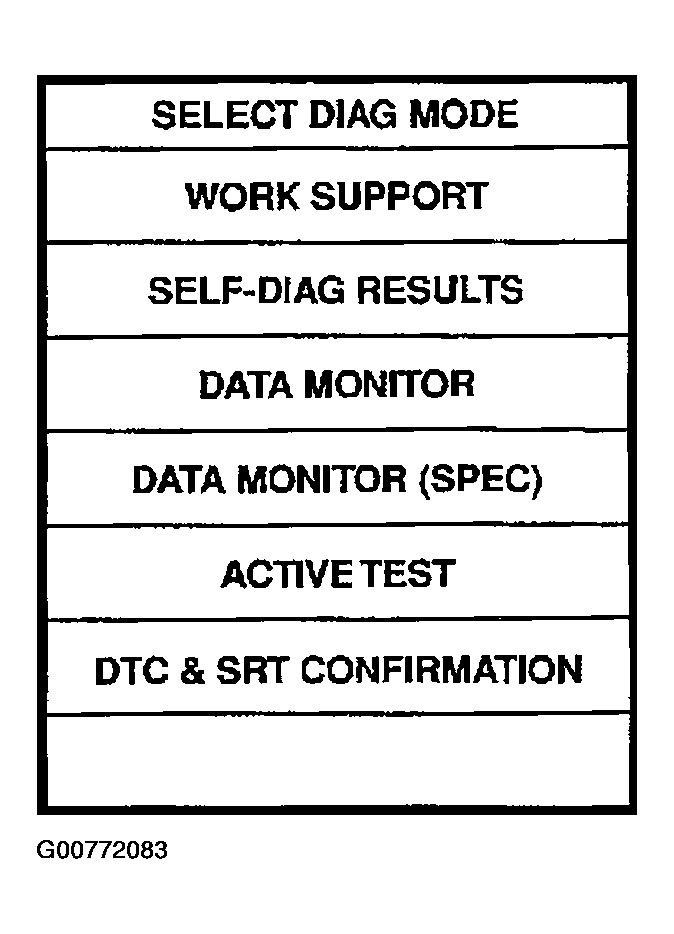

Fig 4: Displaying "SELECT DIAG MODE" Mode

Courtesy of NISSAN MOTOR CO., U.S.A.
