Idle Speed and Ignition Timing

WARNING: This page is about a different variant/trim than selected.

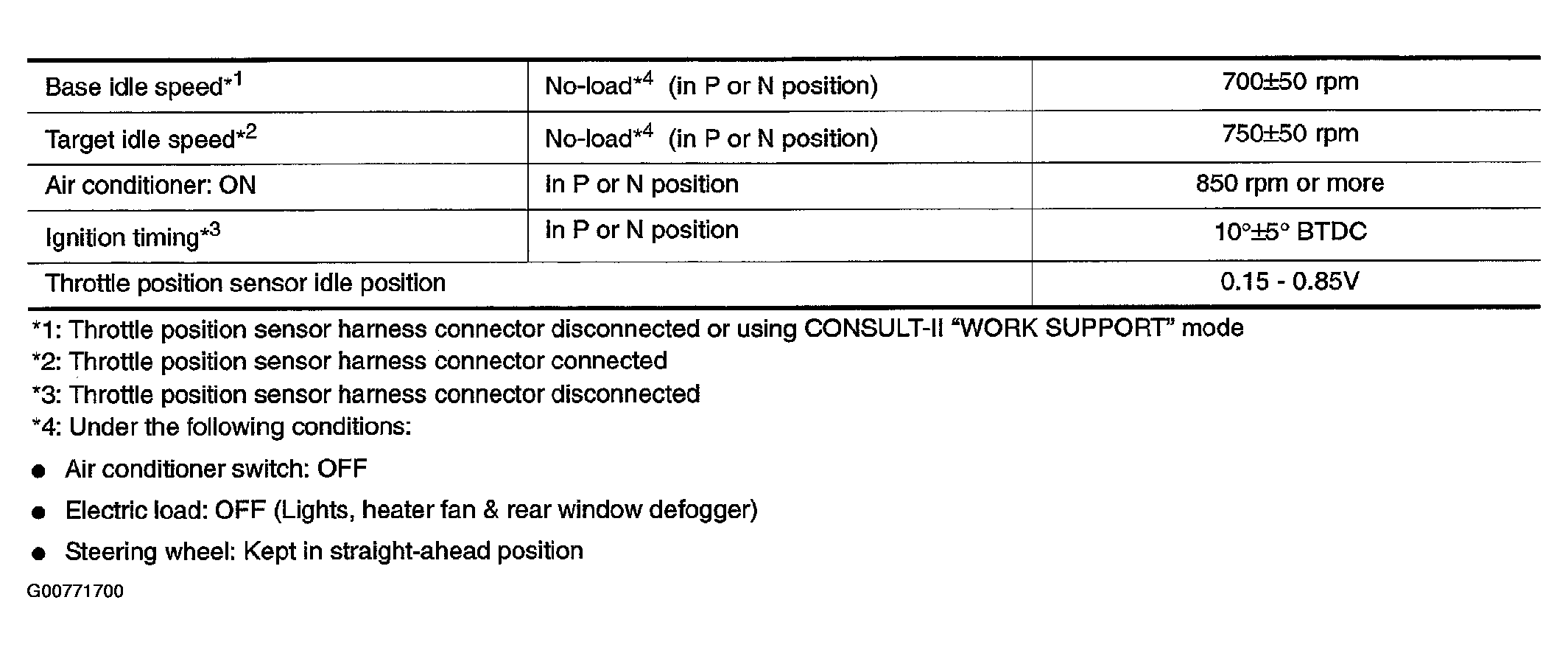

Fig 1: Idle Speed And Ignition Timing Specification Chart
G00771700Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Throttle position sensor harness connector disconnected or using CONSULT-II "WORK SUPPORT" mode
  2. Throttle position sensor harness connector connected
  3. Throttle position sensor harness connector disconnected
  4. Under the following conditions:
