Component Description

WARNING: This page is about a different variant/trim than selected.

The fuel tank temperature sensor is used to detect the fuel temperature inside the fuel tank. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the fuel temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

Fig 1: Identifying FTT Sensor Component Description

Courtesy of NISSAN MOTOR CO., U.S.A.

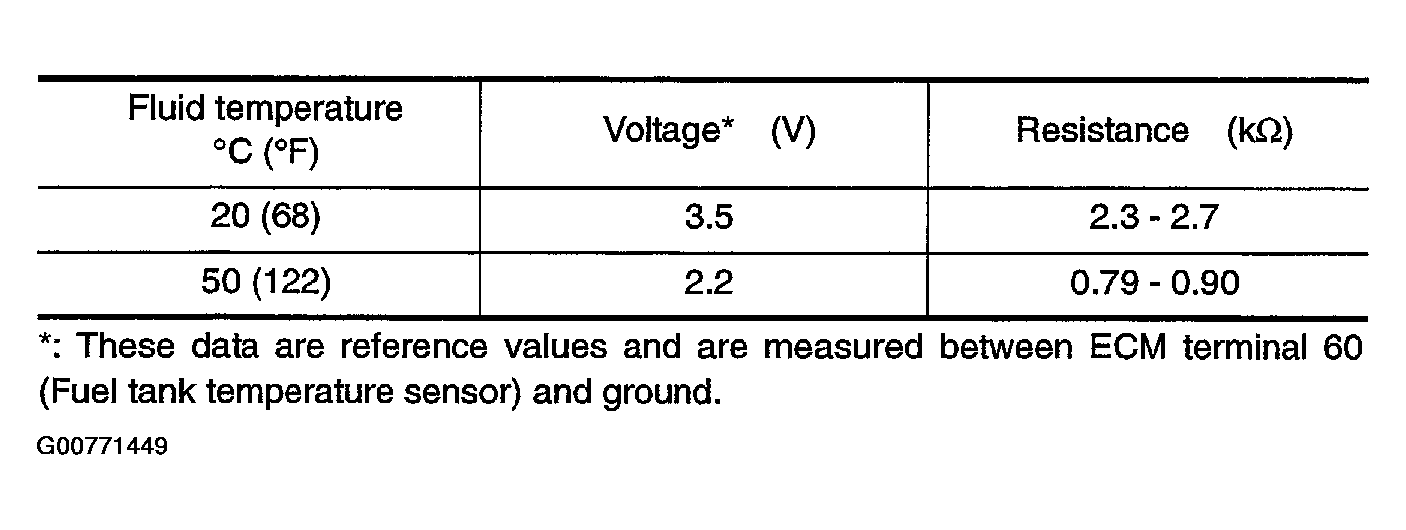

Fig 2: Reference Data Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Identifying Acceptable Resistance And Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than the ECM terminals, such as the ground.
