< Reference data >

WARNING: This page is about a different variant/trim than selected.

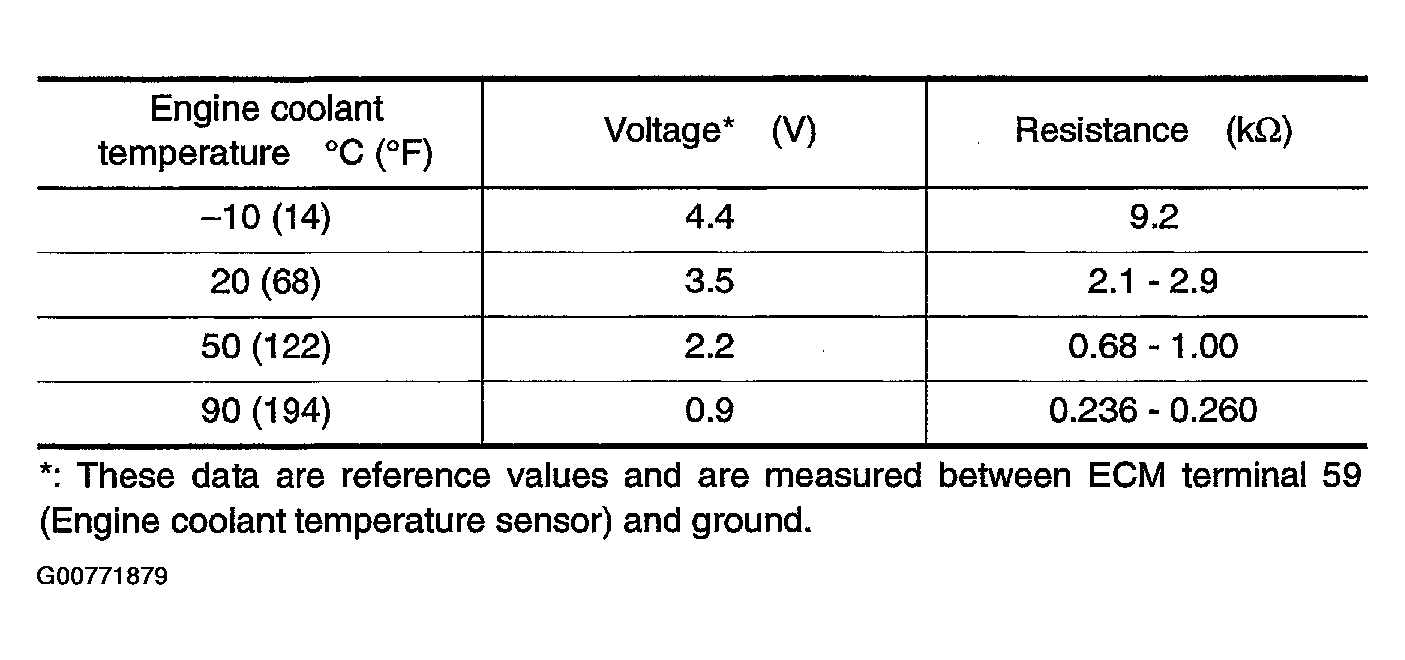

Fig 1: Engine Coolant Temperature Specification Chart
G00771879Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Temperature And Resistance Graph
G00771880Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than the ECM terminals, such as the ground.
