Procedure For Malfunction B

WARNING: This page is about a different variant/trim than selected.

CAUTION: Always drive vehicle at a safe speed.

With CONSULT-II

Start engine and warm it up to normal operating temperature.
Turn ignition switch OFF and wait at least 5 seconds.
Turn ignition switch ON.
Select "MANU TRIG" in "DATA MONITOR" mode with CONSULT-II.
Select "THRTL POS SEN" and "ABSOL TH.P/S" in "DATA MONITOR" mode with CONSULT-II.
Press RECORD on CONSULT-II screen at the same time accelerator pedal is depressed.
Print out the recorded graph and check the following:
- The voltage rise is linear in response to accelerator pedal depression.
- The voltage when accelerator pedal is fully depressed is approximately 4V.
  If NG, go to "DIAGNOSTIC PROCEDURE ".

  If OK, go to following step.

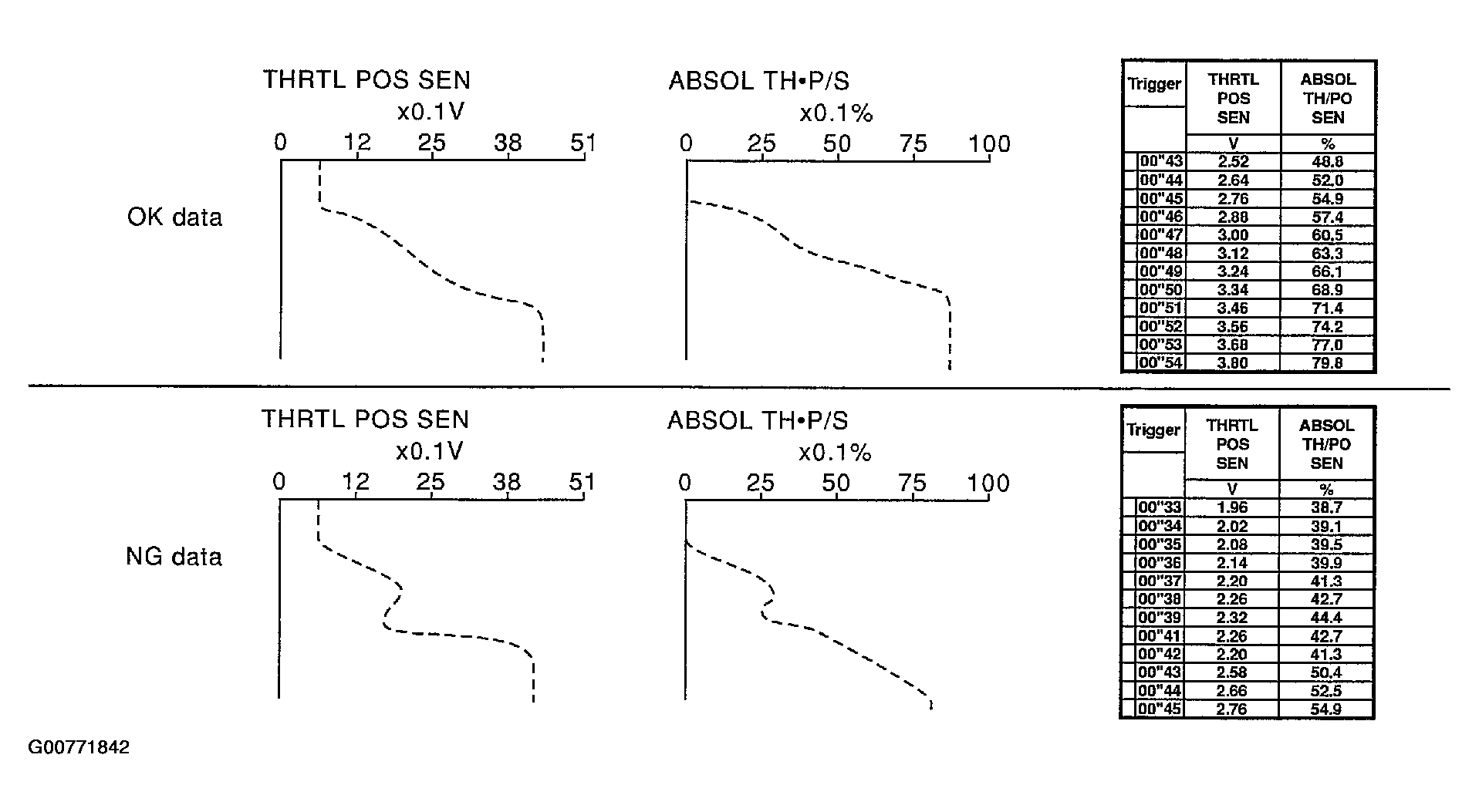

Fig 1: Displaying "THRTL POS SEN" And "ABSOL TH.P/S" In "DATA MONITOR" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Malfunction Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "AUTO TRIG" in "DATA MONITOR" mode with CONSULT-II.
Maintain the following conditions for at least 10 consecutive seconds.

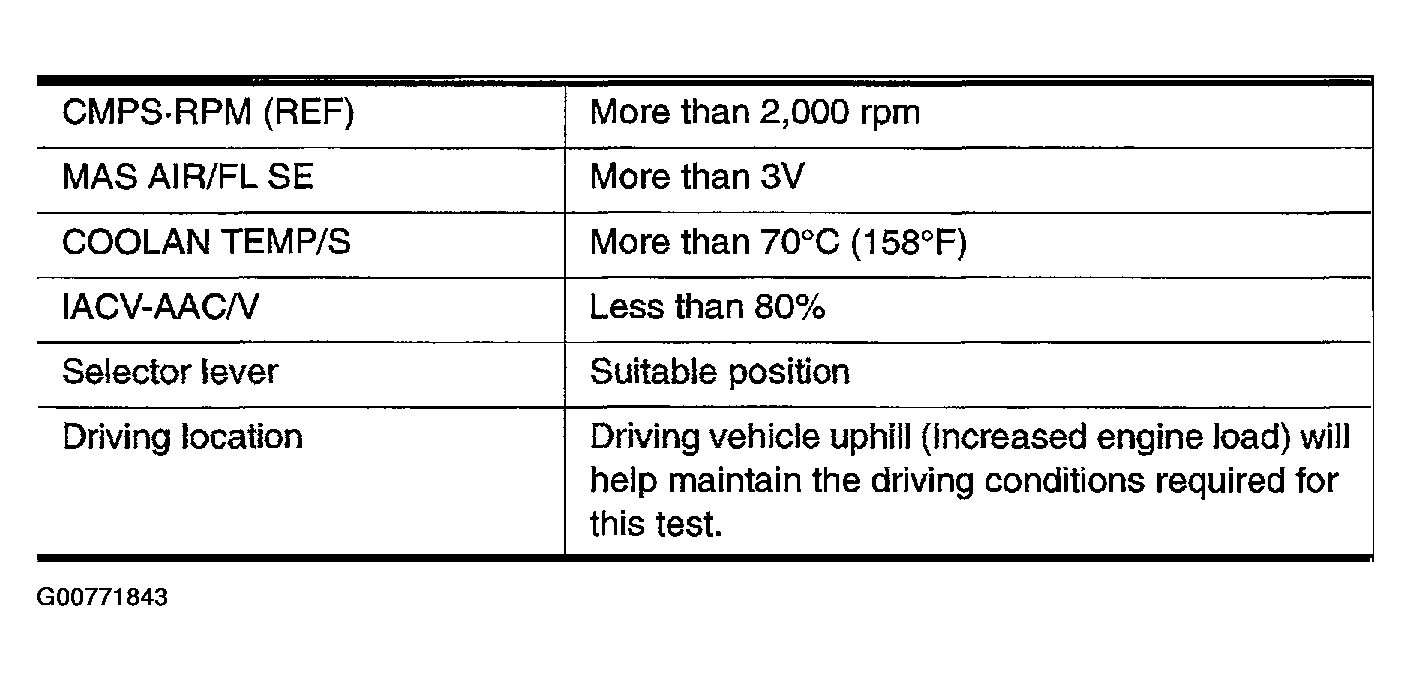

Fig 3: CMPS.RPM (REF) Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Displaying "DATA MONITOR" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

With GST

Follow the procedure "With CONSULT-II".
