Mass Air Flow Sensor

WARNING: This page is about a different variant/trim than selected.

Reconnect harness connectors disconnected.
Start engine and warm it up to normal operating temperature.
Check voltage between ECM terminal 54 (Mass air flow sensor signal) and ground.

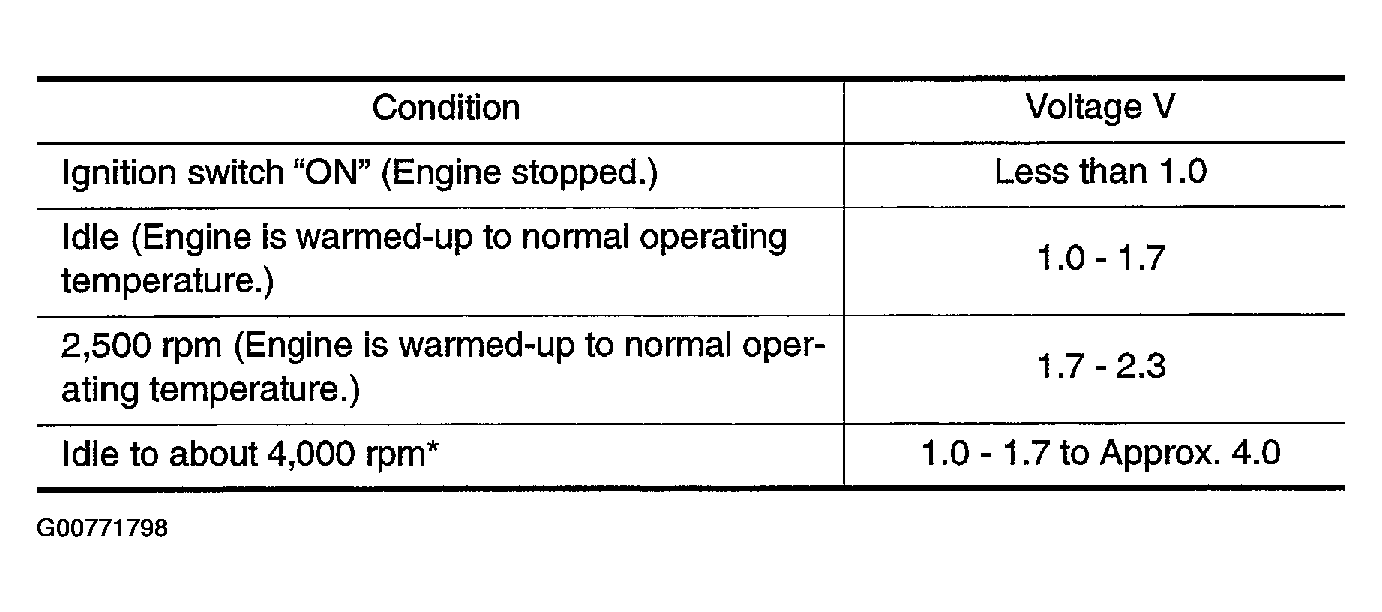

Fig 1: Voltage Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Voltage Between ECM Terminal 54 (Mass Air Flow Sensor Signal) And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
If the voltage is out of specification, proceed the following.
- Turn ignition switch OFF.
- Disconnect mass air flow sensor harness connector and reconnect it again.
- Perform step 2 and 3 again.
If NG, remove mass air flow sensor from air duct. Check hot wire for damage or dust.
If NG, clean or replace mass air flow sensor.
