Idle Speed and Ignition Timing

WARNING: This page is about a different variant/trim than selected.

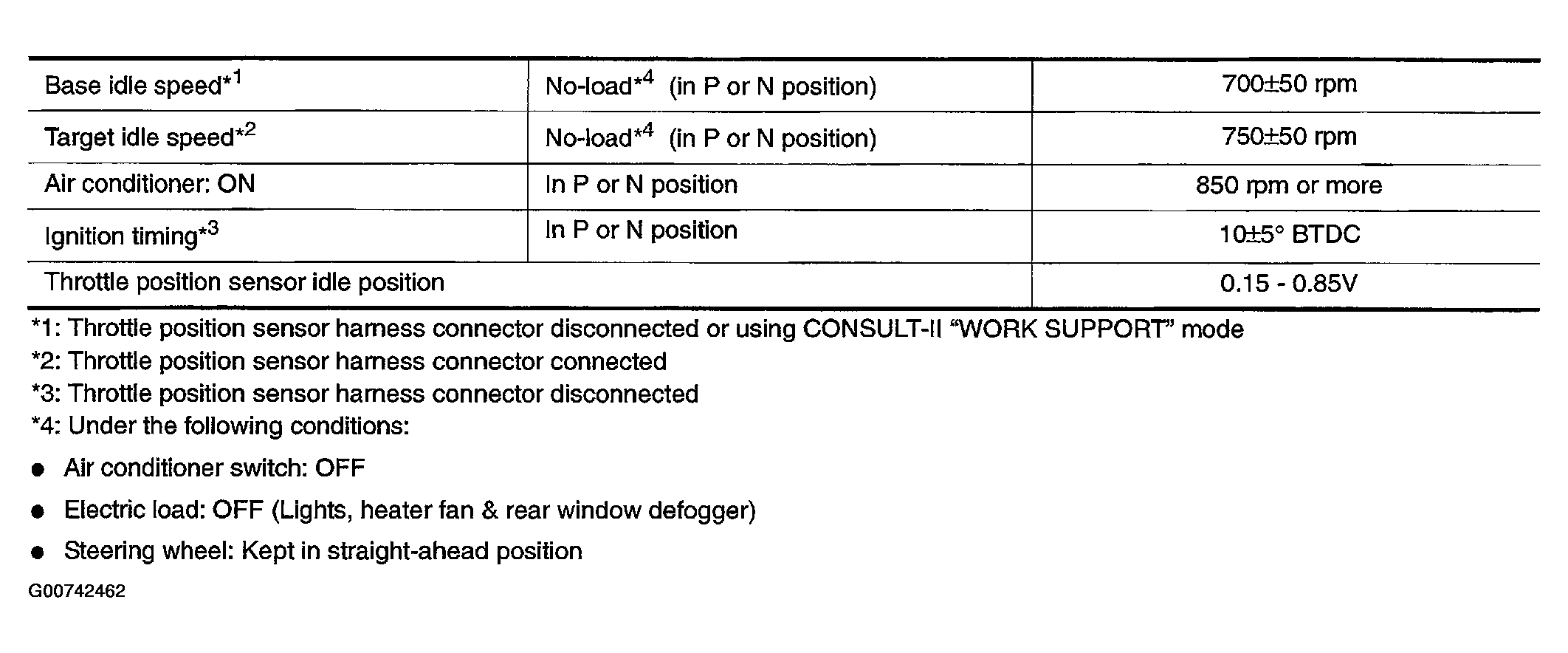

Fig 1: Idle Speed And Ignition Timing Specification Chart

G00742462

Courtesy of NISSAN MOTOR CO., U.S.A.
