Fail-safe Chart

WARNING: This page is about a different variant/trim than selected.

When the DTC listed below is detected, the ECM enters the fail-sate mode and the MIL illuminates.

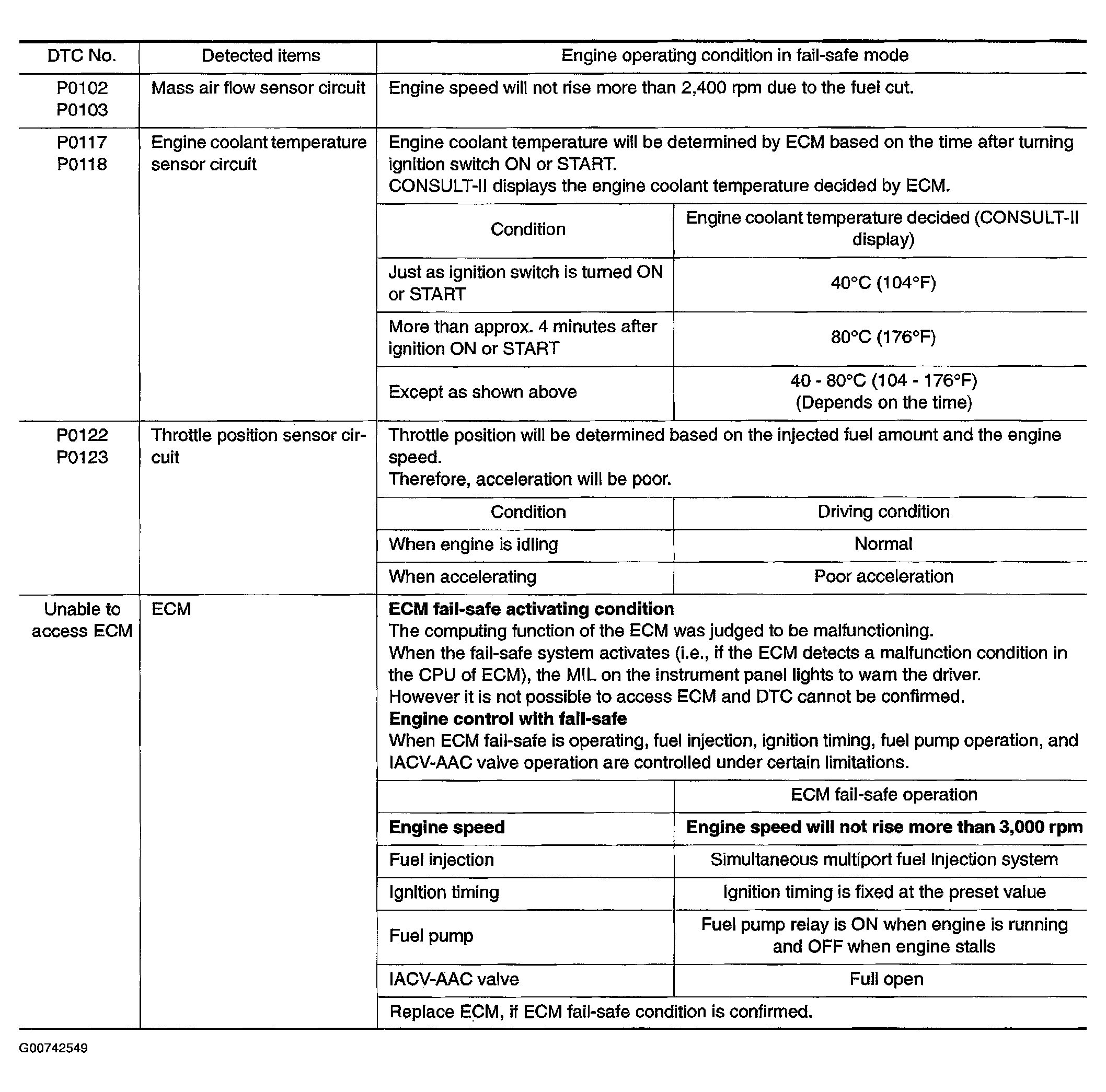

Fig 1: Fail-Safe Chart
G00742549Courtesy of NISSAN MOTOR CO., U.S.A.
