Test Item

WARNING: This page is about a different variant/trim than selected.

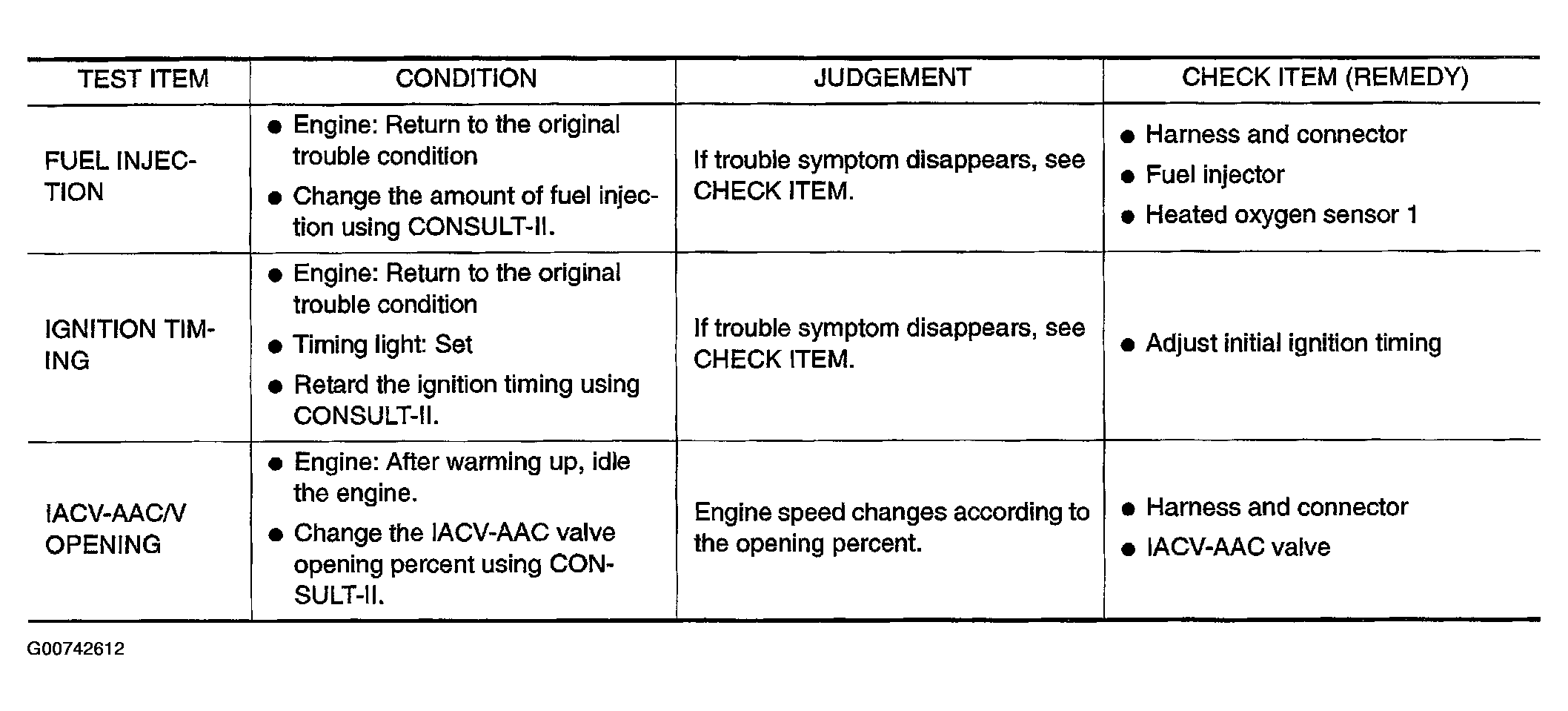

Fig 1: Active Test Mode Chart (1 Of 2)
G00742612Courtesy of NISSAN MOTOR CO., U.S.A.

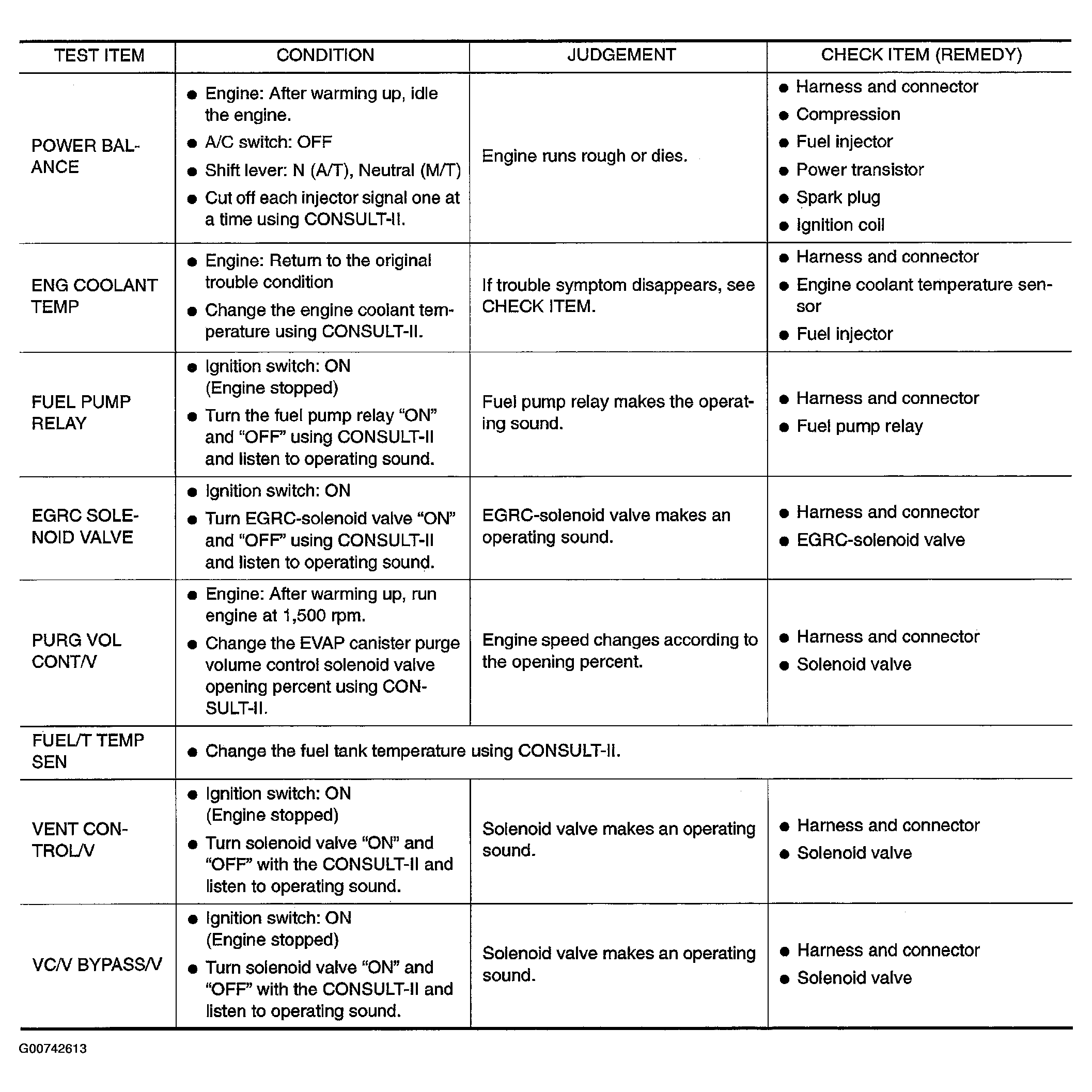

Fig 2: Active Test Mode Chart (2 Of 2)
G00742613Courtesy of NISSAN MOTOR CO., U.S.A.
