On Board Diagnosis Logic

This self-diagnosis has the one trip detection logic.

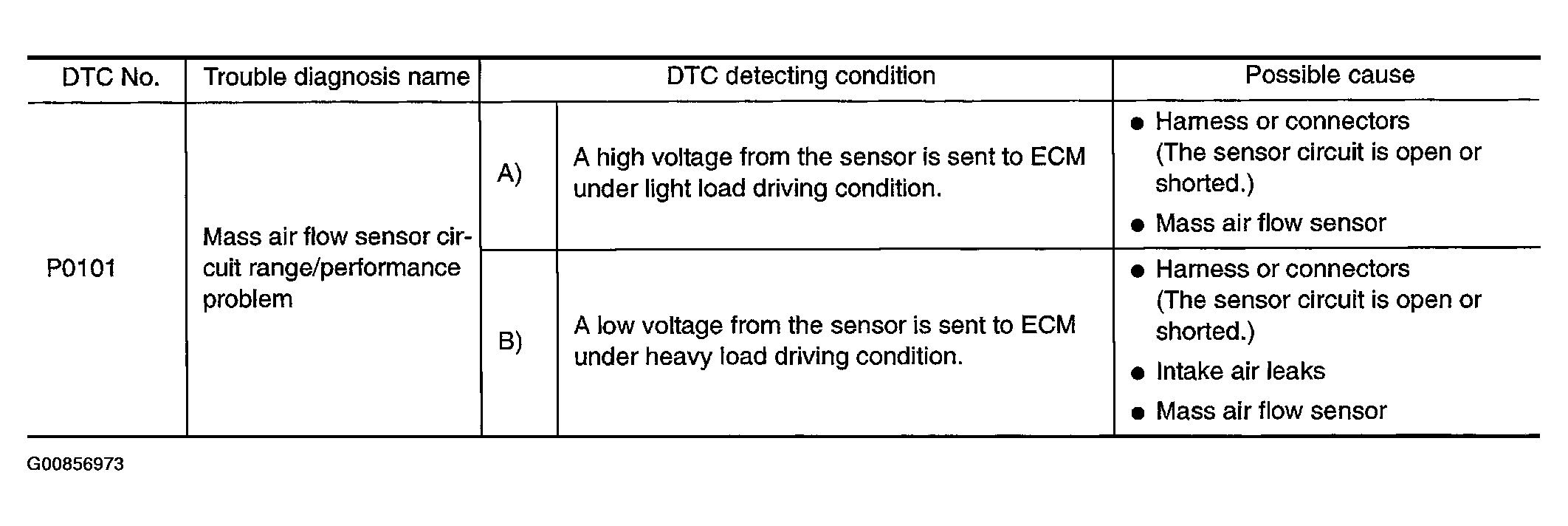

Fig 1: DTC Detecting Condition Chart

G00856973

Courtesy of NISSAN MOTOR CO., U.S.A.
