ABS Motor

Touch "ON" and "OFF" on the screen. Check that ABS motor relay operates as shown in table below.

Fig 1: ABS Motor Relay Motor Condition Table

Courtesy of NISSAN MOTOR CO., U.S.A.

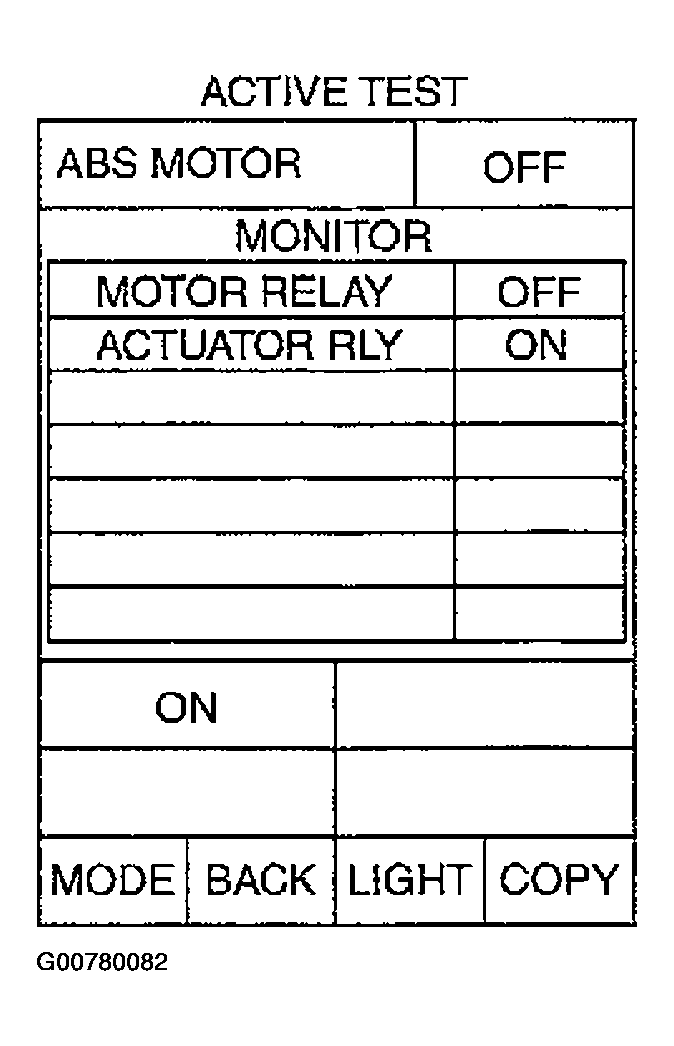

Fig 2: Display CONSULT-II ACTIVE TEST Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE:

If active test is performed with brake pedal depressed, pedal stroke may change. This is normal.
"TEST IS STOPPED" is displayed approximately 10 seconds after operation starts.
