Wiring Diagram - KEYLES -

NOTE: For references to PG-POWER, see GROUND DISTRIBUTION & POWER DISTRIBUTION .

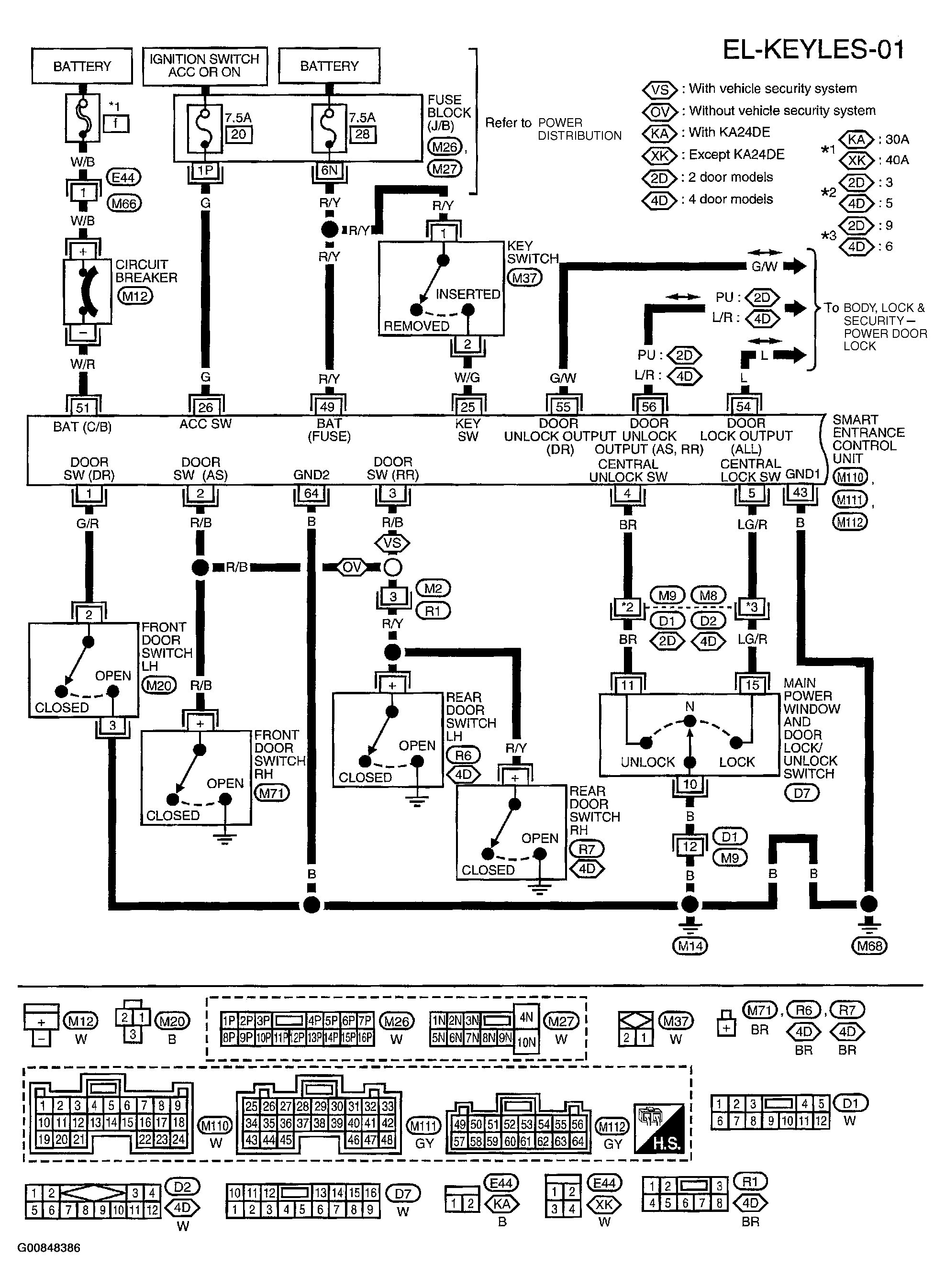

Fig 1: Wiring Diagram - EL-KEYLES-01
G00848386Courtesy of NISSAN MOTOR CO., U.S.A.

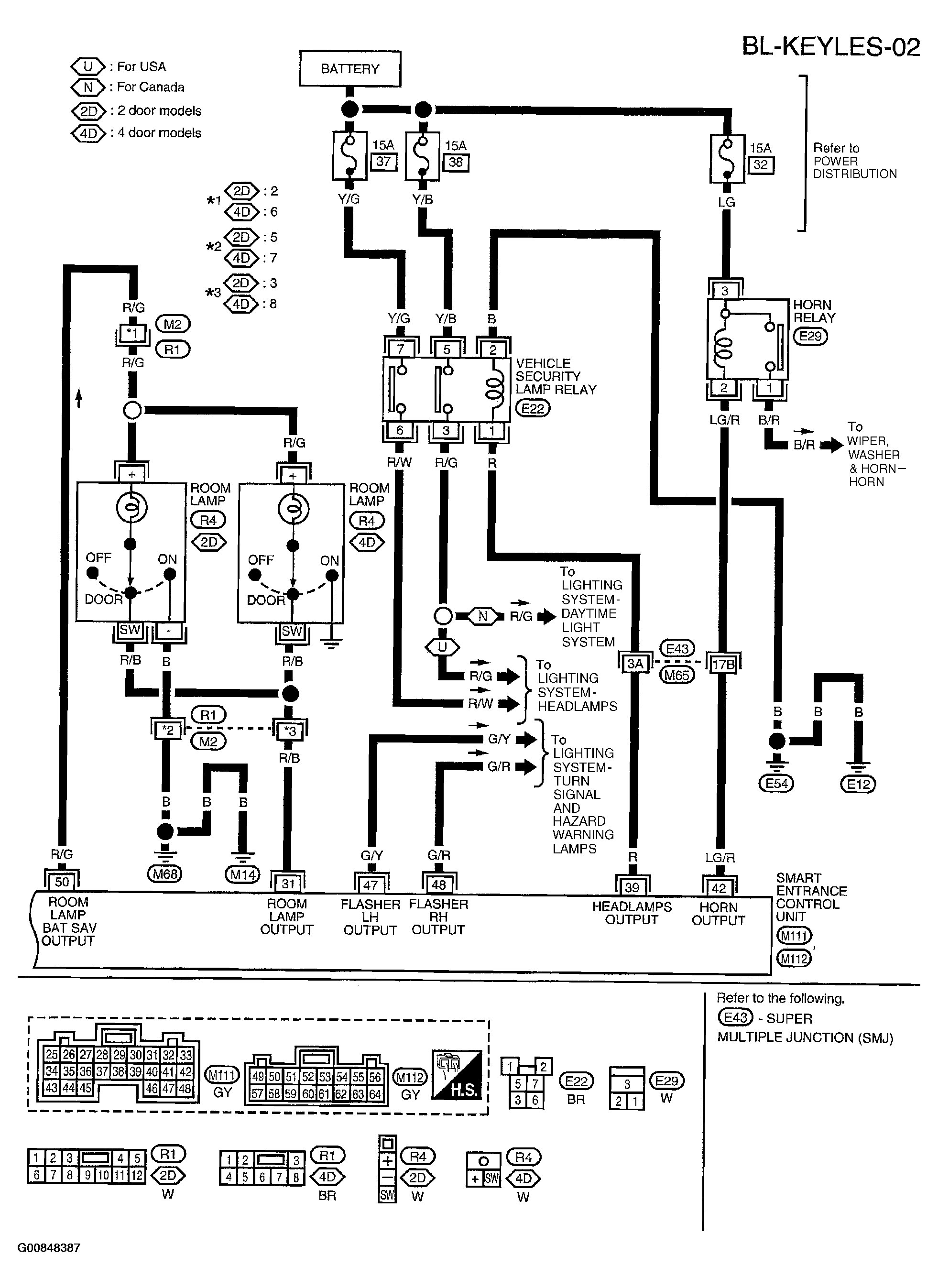

Fig 2: Wiring Diagram - EL-KEYLES-02
G00848387Courtesy of NISSAN MOTOR CO., U.S.A.
