Automatic Speed Control Device (ASCD)
>>
Circuit Diagram
Circuit Diagram

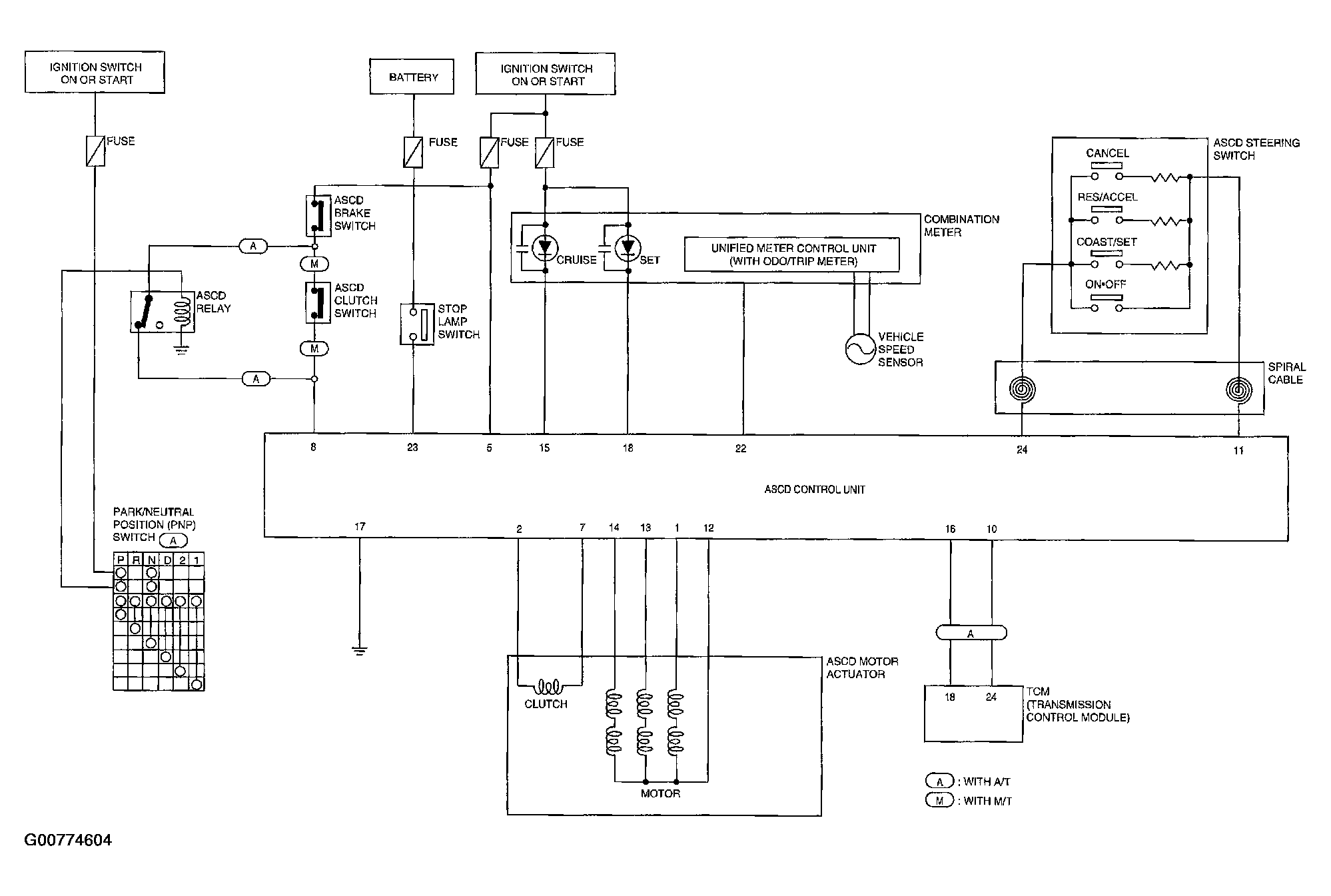

Fig 1: ASCD Circuit Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
