Diagnostic Procedure
- CHECK GROUND CONNECTIONS
- Turn ignition switch OFF.

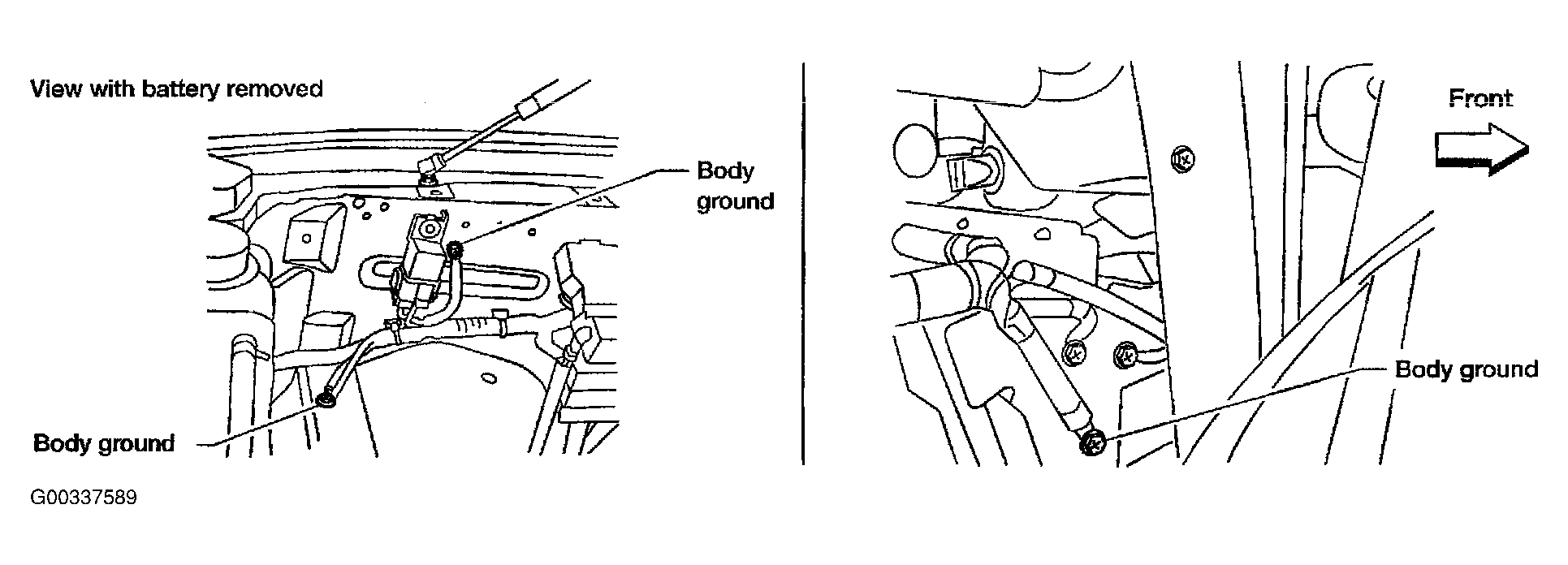

- Loosen and retighten ground three screws on the body.
Refer to Ground Inspection .
OK or NG
- OK >> GO TO 2.
- NG >> Repair or replace ground connections.
- CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT

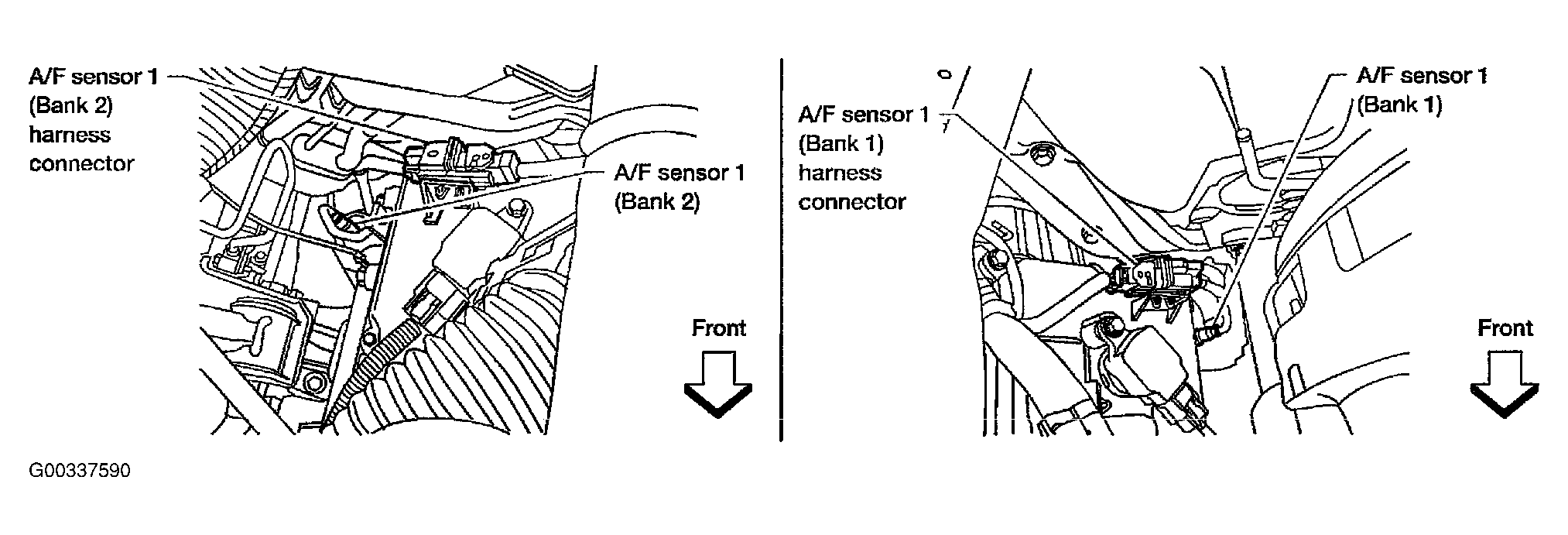

- Disconnect A/F sensor 1 harness connector.
- Turn ignition switch ON.

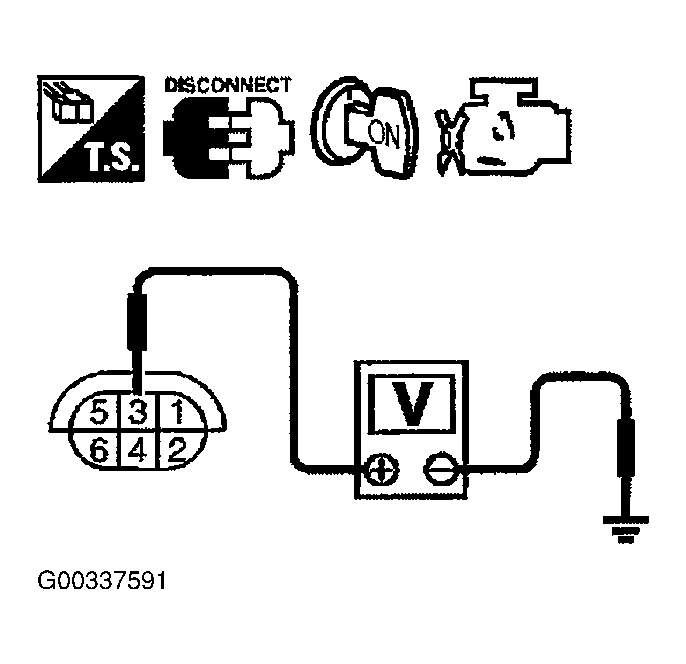

- Check voltage between A/F sensor 1 terminal 3 and ground with CONSULT-II or tester.
- Voltage: Battery voltage
OK or NG
- DETECT MALFUNCTIONING PART
Check the following.
- Harness connectors E5, F14
- IPDM E/R harness connector E119
- 10A fuse
- Harness for open or short between A/F sensor 1 and fuse
- >> Repair or replace harness or connectors.
- CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
- Turn ignition switch OFF.
- Disconnect ECM harness connector.

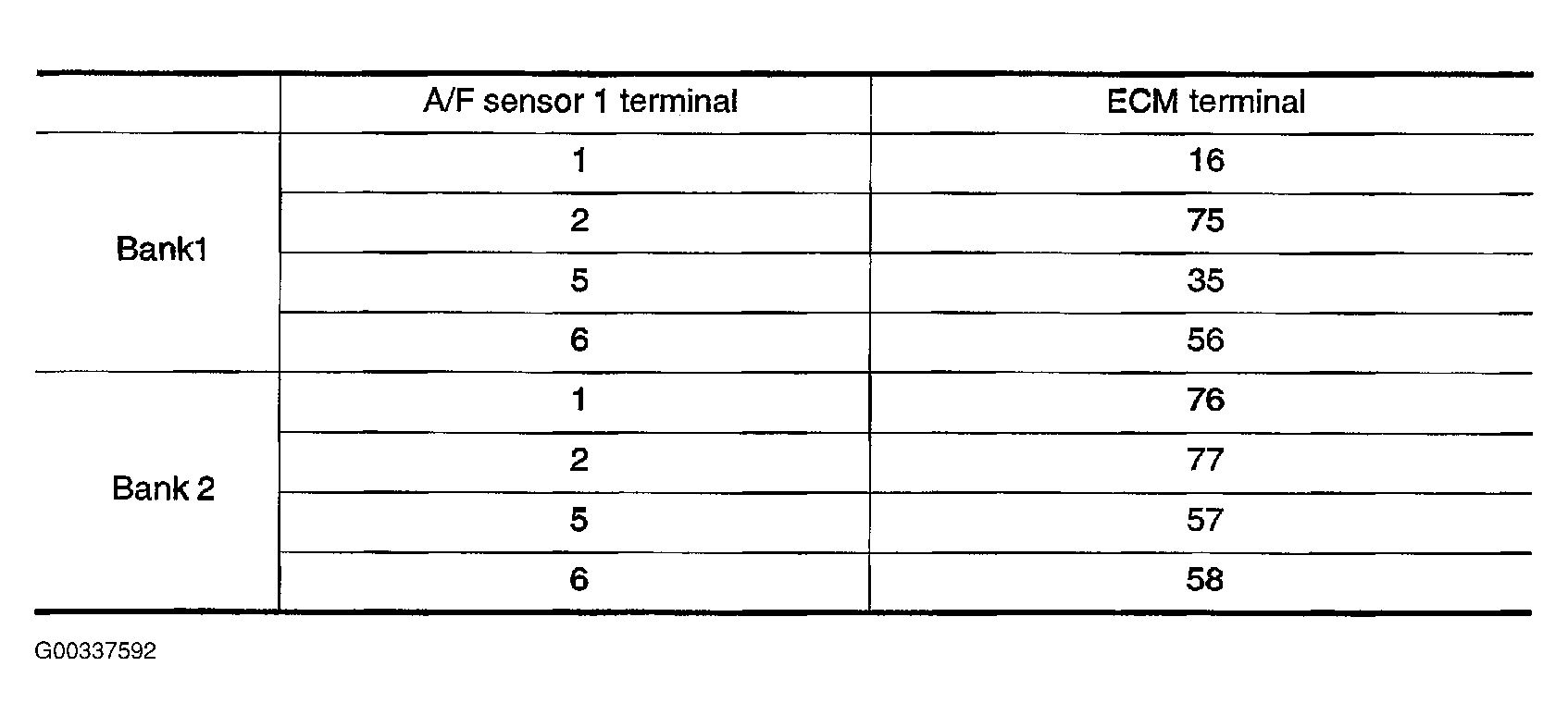

- Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows.
Refer to Wiring Diagram.
- Continuity should exist.
- Check harness continuity between the previous terminals and ground.
Refer to Wiring Diagram.
- Continuity should not exist.
- Also check harness for short to power.
OK or NG
- OK >> GO TO 5.
- NG >> Repair open circuit or short to ground or short to power in harness or connectors.
- CHECK INTERMITTENT INCIDENT
Perform TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT
OK or NG
- OK >> Replace A/F sensor 1.
- NG >> Repair or replace.
