2. Check App Sensor 1 Power Supply Circuit

1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.

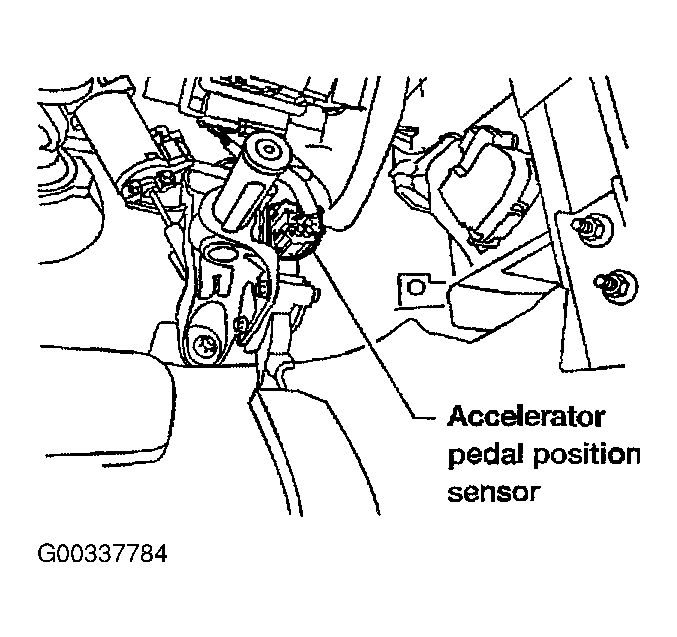

   Fig 1: Locating Accelerator Pedal Position Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check voltage between APP sensor terminal 6 and ground with CONSULT-II or tester.
   1. Voltage: Approximately 5V

OK or NG

OK >> GO TO 3. CHECK APP SENSOR 1 GROUND CIRCUIT FOR OPEN AND SHORT .

NG >> Repair open circuit or short to ground or short to power in harness or connectors.

Fig 2: Check Voltage Between APP Sensor Terminal 6 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.
