DTC P1217: Engine Over Temperature
>>
Main 12 Causes of Overheating
Main 12 Causes of Overheating

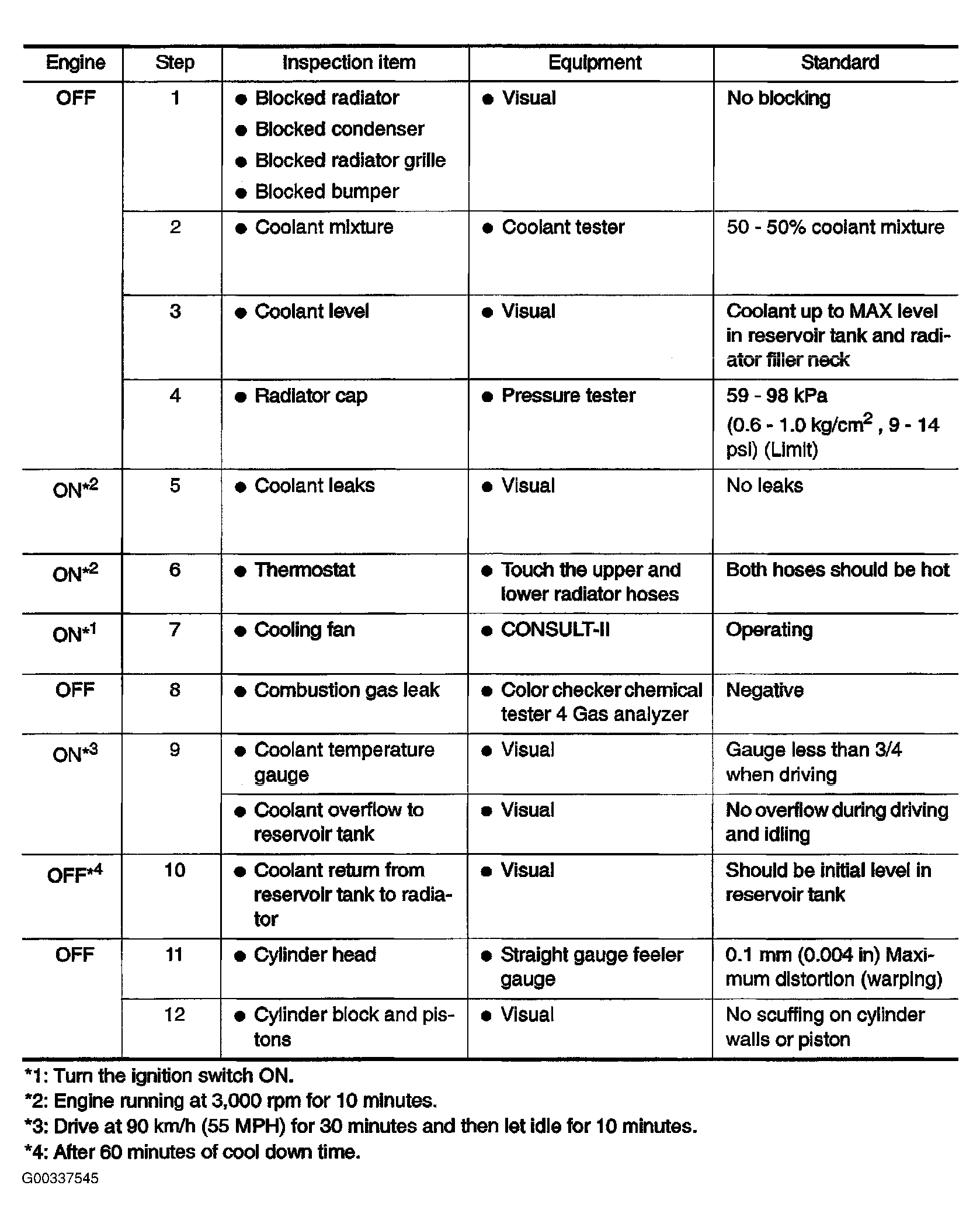

Fig 1: Main 12 Causes of Overheating
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
