Diagnostic Procedure

  1. CHECK GROUND CONNECTIONS
    1. Turn ignition switch OFF.
    2. Loosen and retighten two engine ground screws. Refer to "GROUND INSPECTION ".

    OK or NG

    1. OK : GO TO 2.
    2. NG : Repair or replace ground connections.

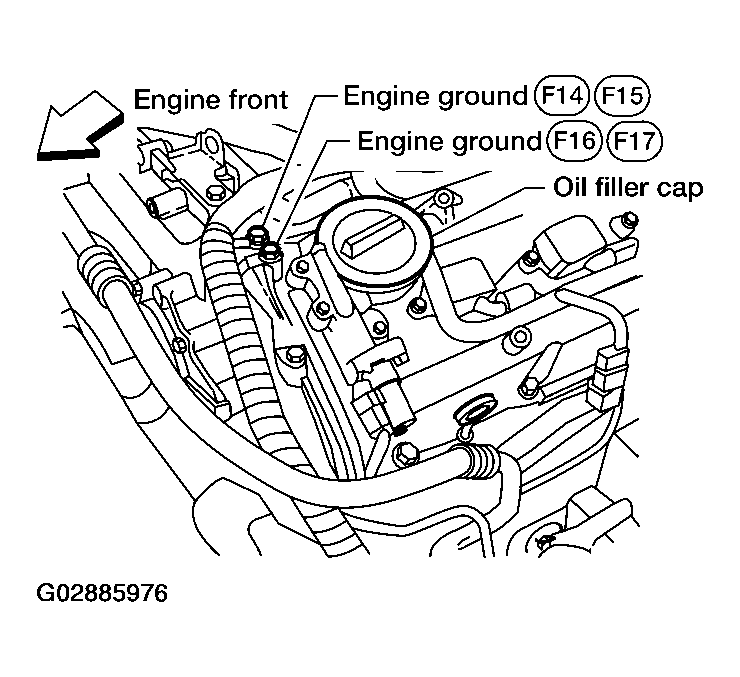

      Fig 1: Checking Engine Ground Connections
      G02885976Courtesy of NISSAN MOTOR CO., U.S.A.
  2. CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT
    1. Disconnect accelerator pedal position (APP) sensor harness connector.
    2. Turn ignition switch ON.

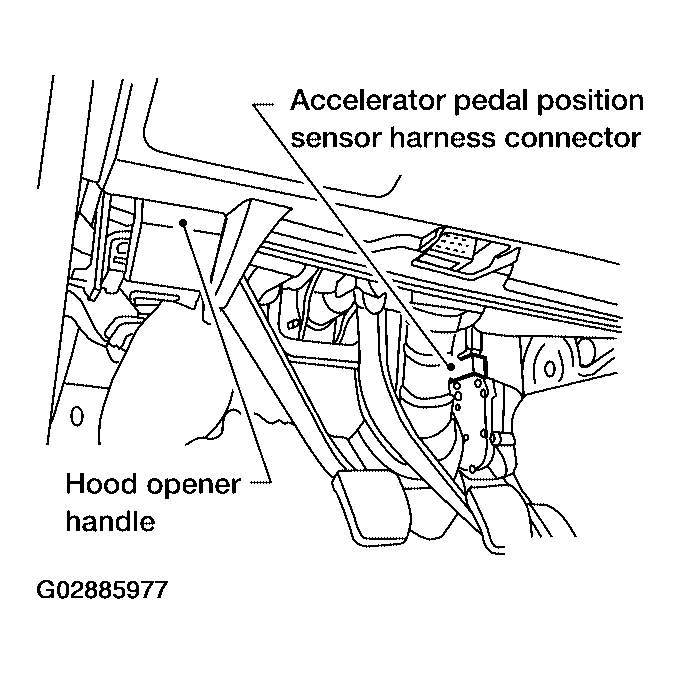

      Fig 2: Disconnecting Accelerator Pedal Position (APP) Sensor Harness Connector
      G02885977Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between APP sensor terminal 1 and ground with CONSULT-II or tester.

      Voltage: Approximately 2.5V

    OK or NG

    1. OK : GO TO  4.
    2. NG : GO TO 3.
      Fig 3: Checking Voltage Between APP Sensor Terminal 1 And Ground
      G02885978Courtesy of NISSAN MOTOR CO., U.S.A.
  3. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E21, F34
    • Harness for open or short between ECM and accelerator pedal position sensor
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  4. CHECK APP SENSOR 2 GROUND CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between APP sensor terminal 5 and ECM terminal 70.

      Refer to Wiring Diagram .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  6.
    2. NG : GO TO 5.
  5. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E21, F34
    • Harness for open or short between ECM and accelerator pedal position sensor
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  6. CHECK APP SENSOR 2 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Check harness continuity between ECM terminal 74 and APP sensor terminal 6.

      Refer to Wiring Diagram .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.

    OK or NG

    1. OK : GO TO  8.
    2. NG : GO TO 7.
  7. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E21, F34
    • Harness for open or short between ECM and accelerator pedal position sensor
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  8. CHECK APP SENSOR

    Refer to "COMPONENT INSPECTION ".

    OK or NG

    1. OK : GO TO 9.
    2. NG : Replace accelerator pedal assembly.
  9. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    1. : INSPECTION END
