Schematic (With Left Front Only Power Window Anti-Pinch System)

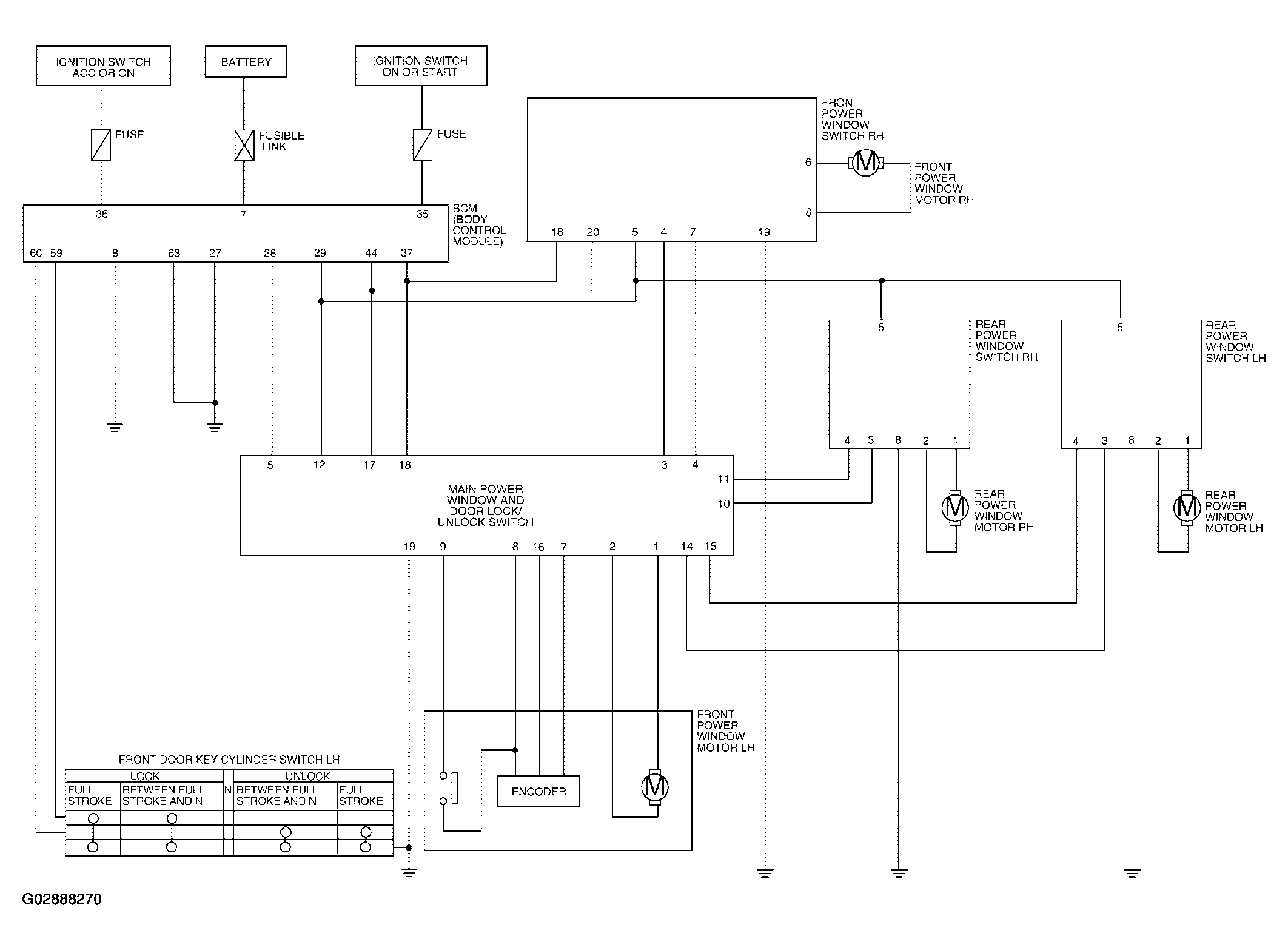

Fig 1: Schematic (With Left Front Only Power Window Anti-Pinch System)

G02888270

Courtesy of NISSAN MOTOR CO., U.S.A.
