MAINSHAFT C-Ring

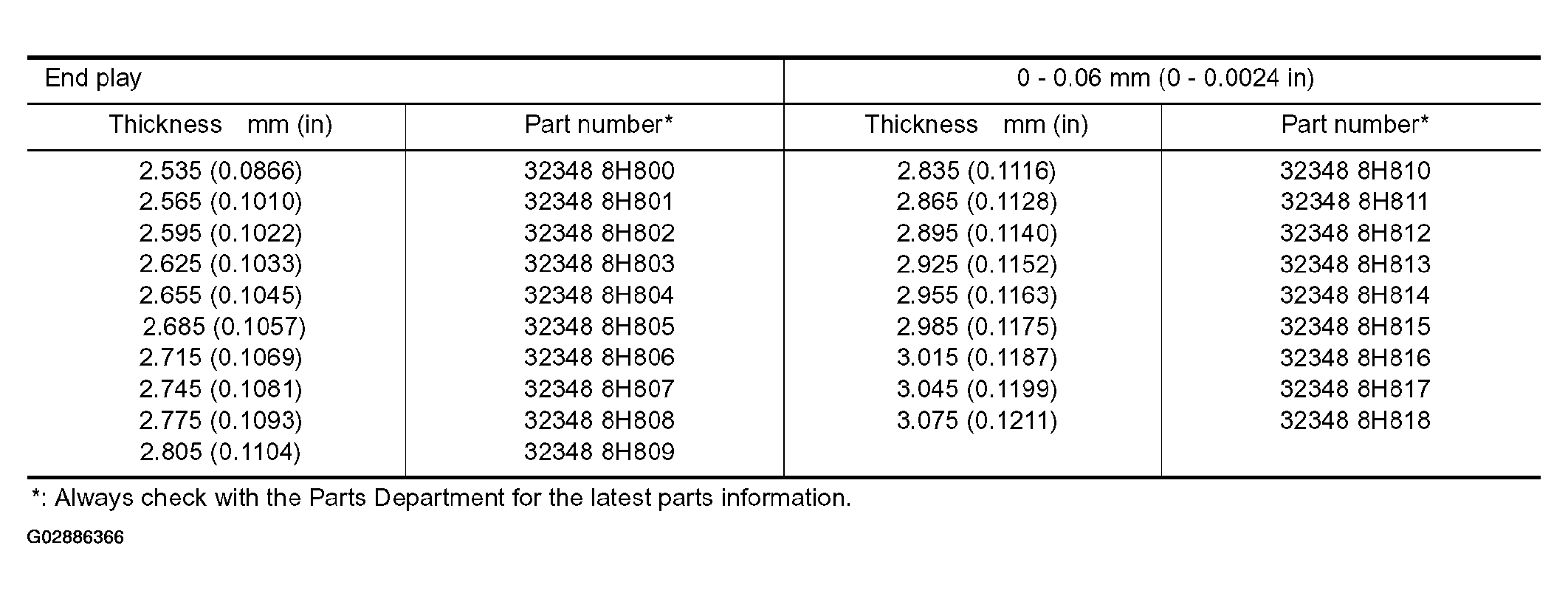

Fig 1: Identifying Mainshaft C-Ring Specification

G02886366

Courtesy of NISSAN MOTOR CO., U.S.A.
