Section 6 (Engine Control System - 3.5L)
>>
Trouble Diagnosis
>>
Symptom Matrix Chart
>>
System - Basic Engine Control System
System - Basic Engine Control System
WARNING:
This page is about a different variant/trim than selected.
1 - 6: The numbers refer to the order of inspection.

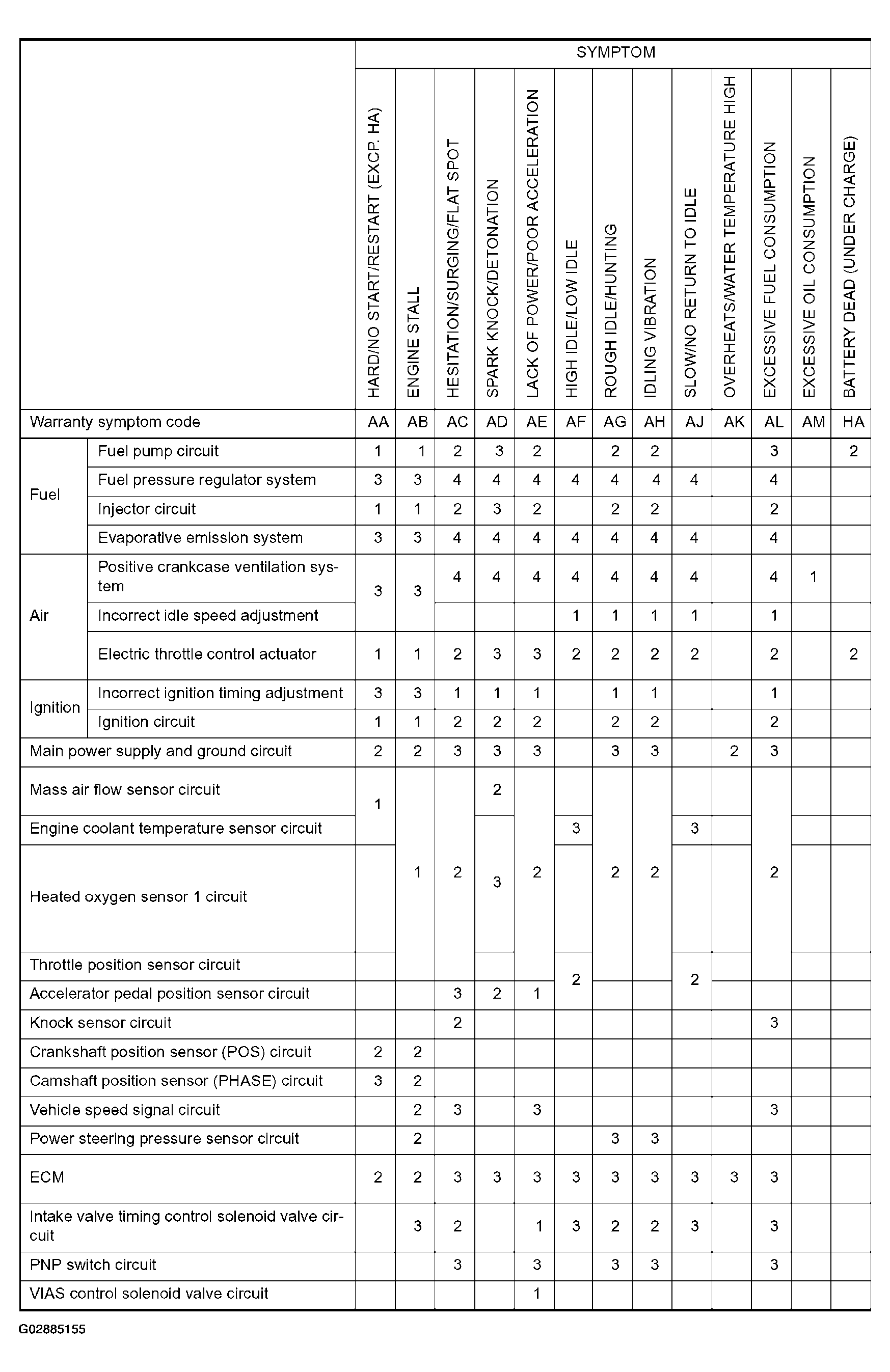

Fig 1: Symptom Matrix Chart (Basic Engine Control System - 1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

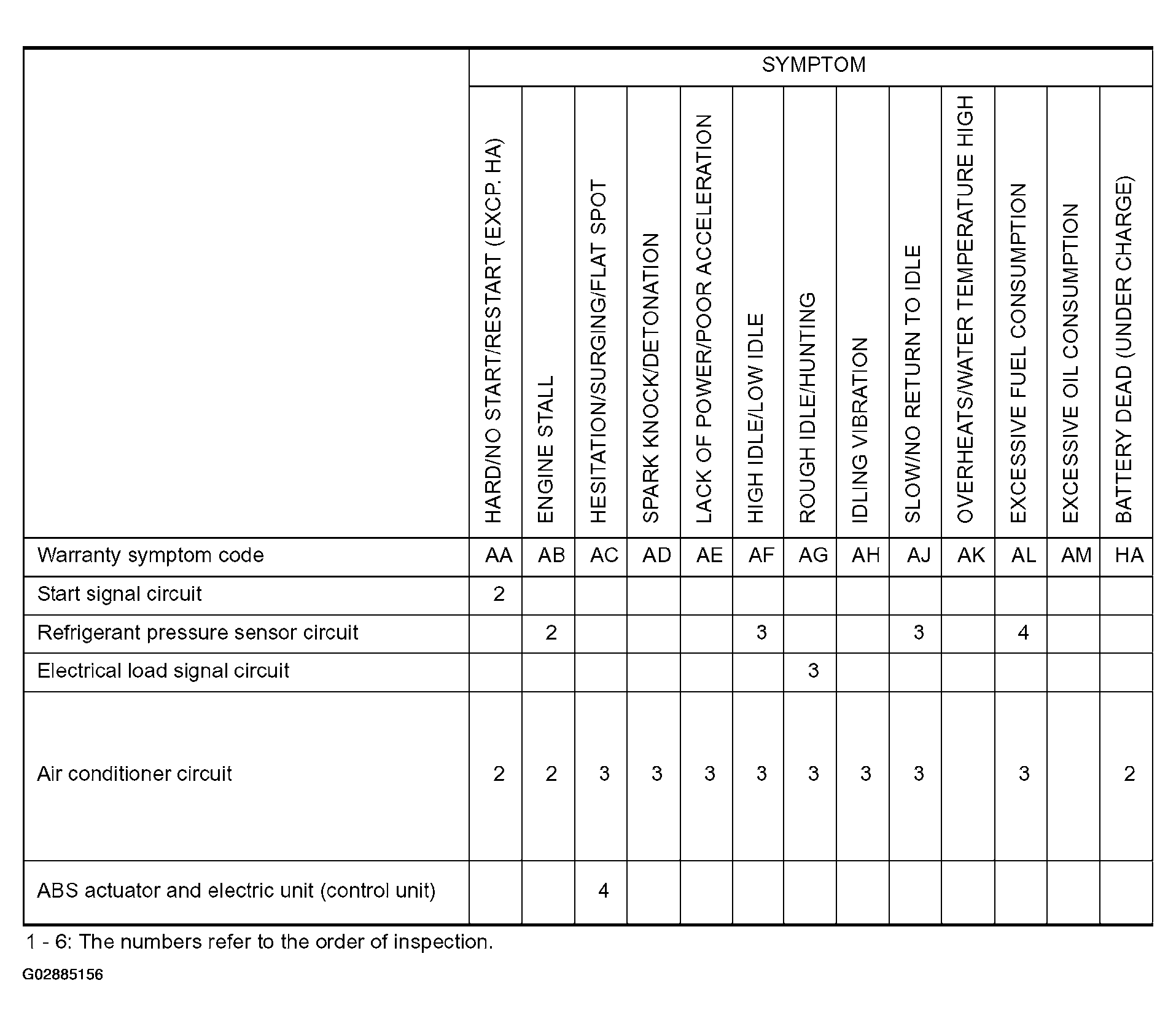

Fig 2: Symptom Matrix Chart (Basic Engine Control System - 2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
