Work Item

WARNING: This page is about a different variant/trim than selected.

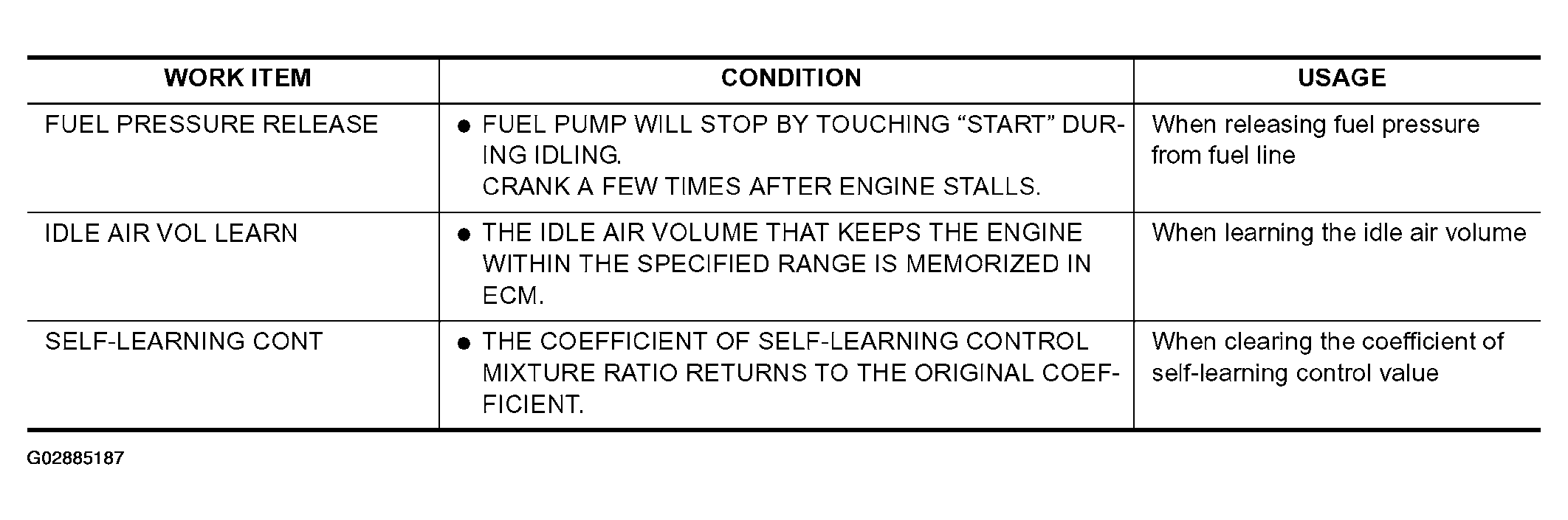

Fig 1: Work Item Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

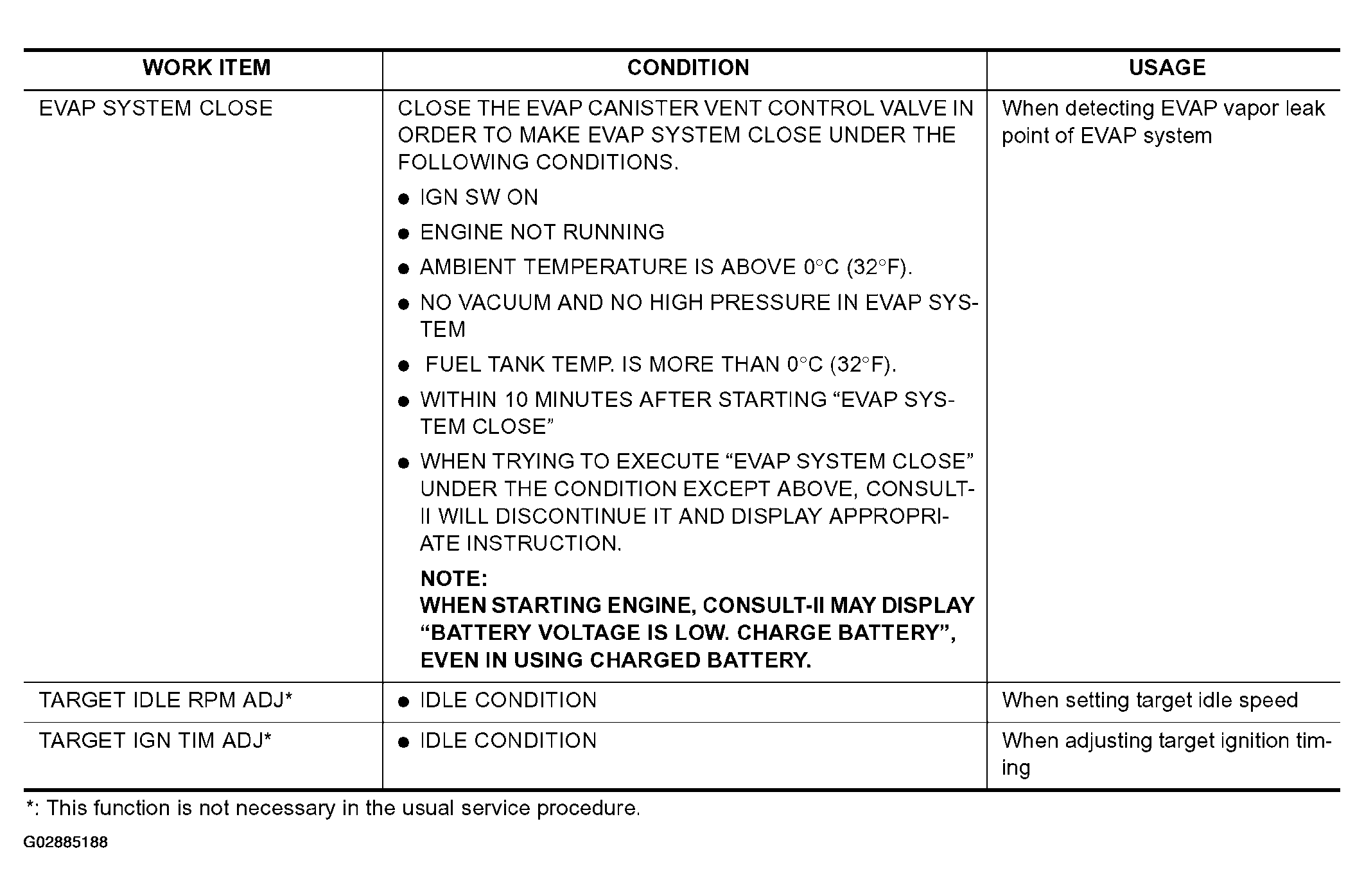

Fig 2: Work Item Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

*: This function is not necessary in the usual service procedure.
