Input/Output Signal Chart

WARNING: This page is about a different variant/trim than selected.

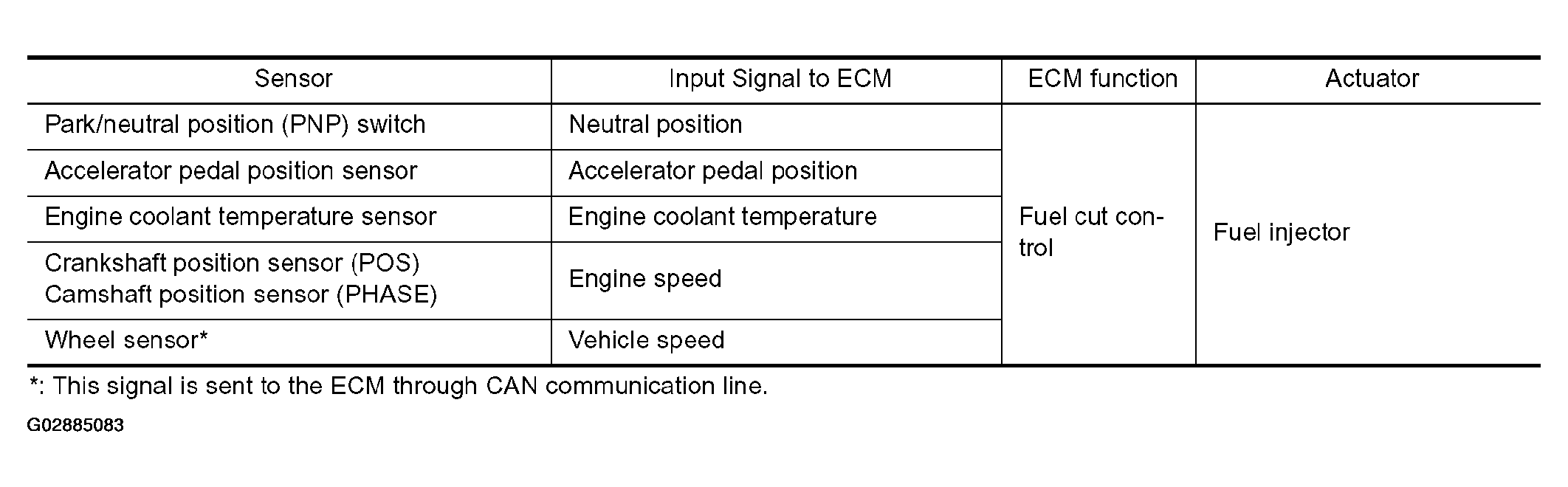

Fig 1: Input/Output Signal Chart - Fuel Cut Control (At No Load And High Engine Speed)
G02885083Courtesy of NISSAN MOTOR CO., U.S.A.
