Active Test Mode

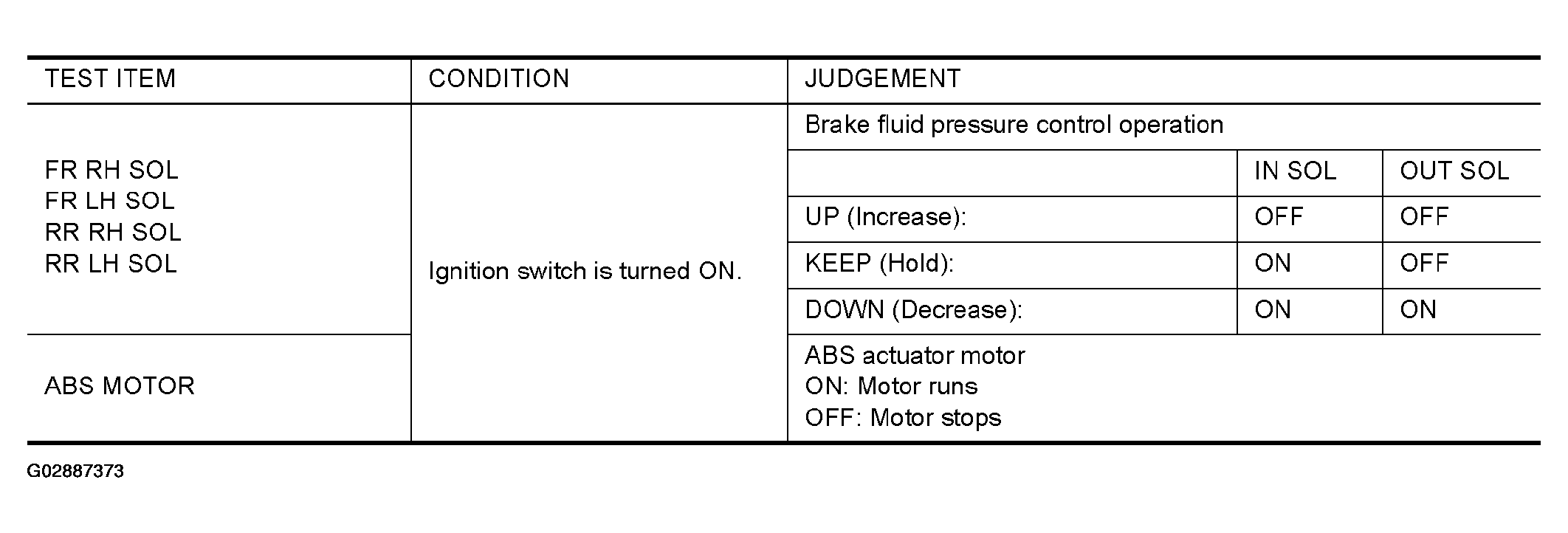

Fig 1: Active Test Mode Chart

G02887373

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Active test will automatically stop ten seconds after the test starts. (TEST IS STOPPED is displayed.)
