Removal and Installation: Installation

Installation is the reverse order of removal.

• When installing the transaxle to the engine, use the tightening torque and sequence shown below:
  CAUTION: When installing transaxle, be careful not to bring transaxle input shaft into contact with the clutch cover.

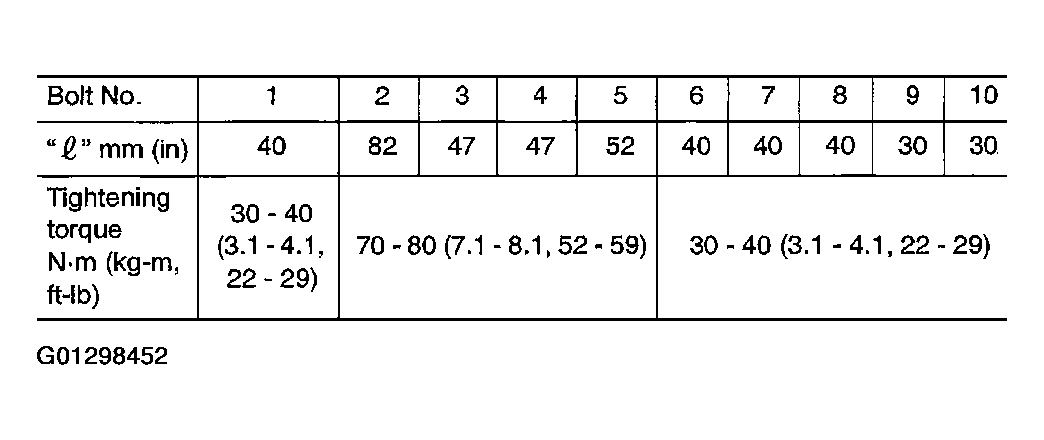

  Fig 1: Bolt Specifications (1 Of 2)

  Courtesy of NISSAN MOTOR CO., U.S.A.

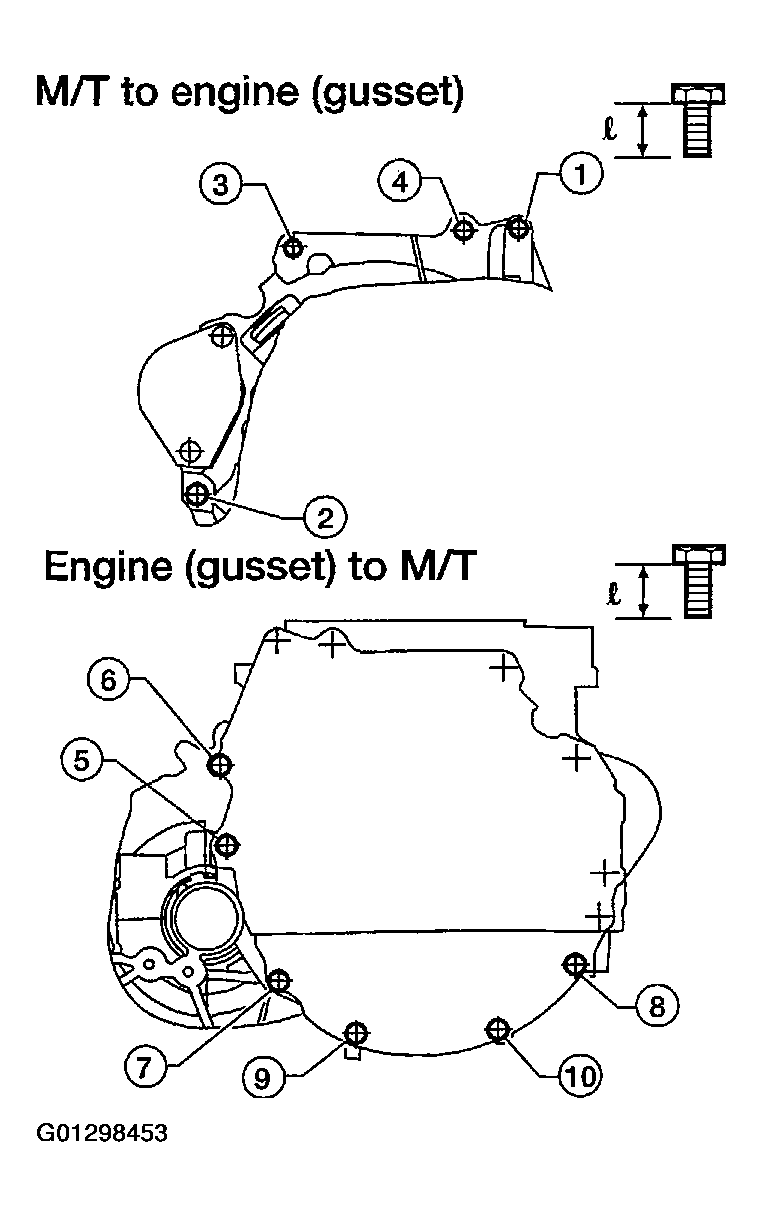

  Fig 2: Bolt Specifications (2 Of 2)

  Courtesy of NISSAN MOTOR CO., U.S.A.
• After installation, check oil level, and look for leaks and loose mechanisms.
