Input Shaft Thrust Washer

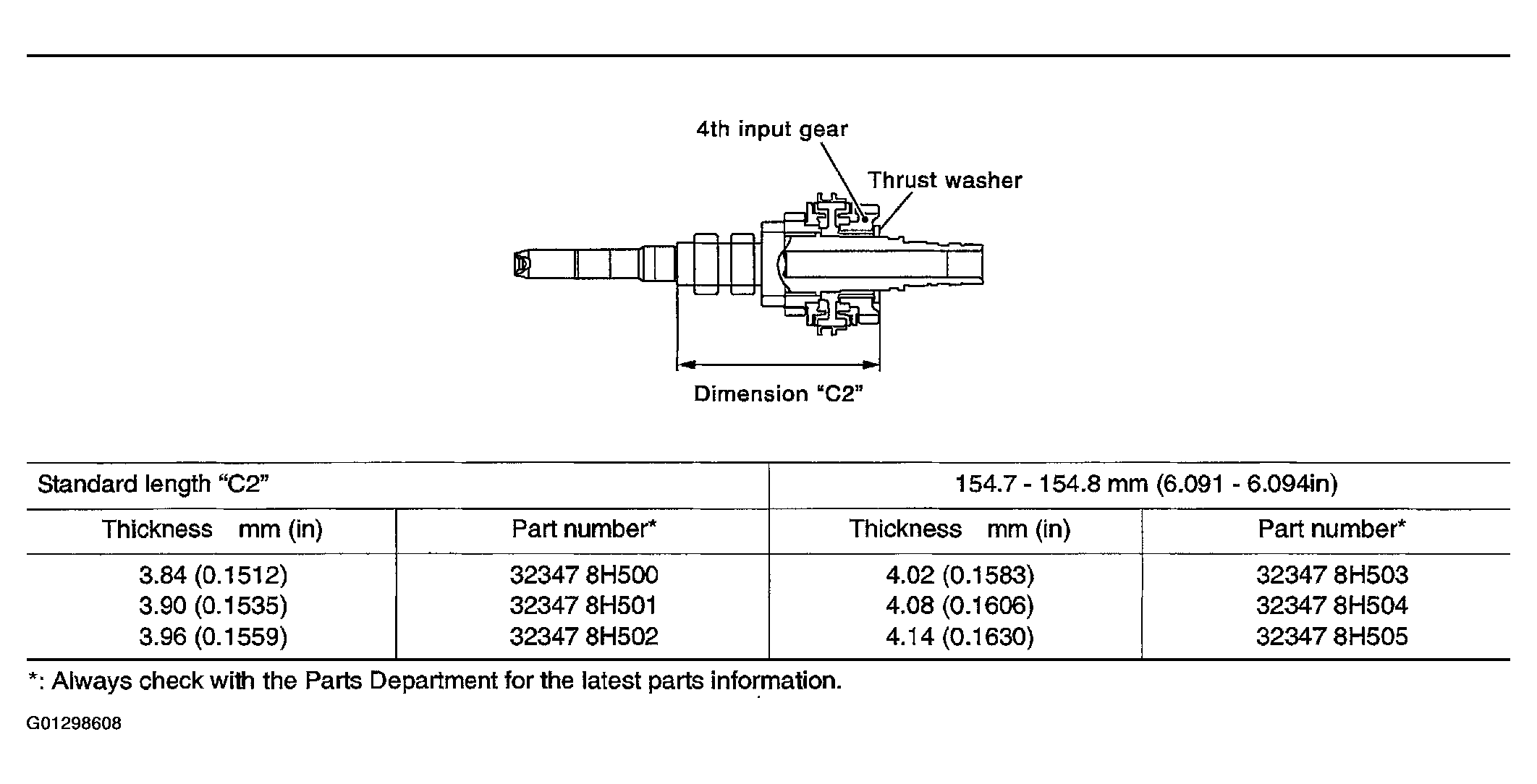

Fig 1: Input Shaft Thrust Washer Specifications Chart

G01298608

Courtesy of NISSAN MOTOR CO., U.S.A.
