Assembly (4)

WARNING: This page is about a different variant/trim than selected.
  1. Install final drive assembly on transmission case.

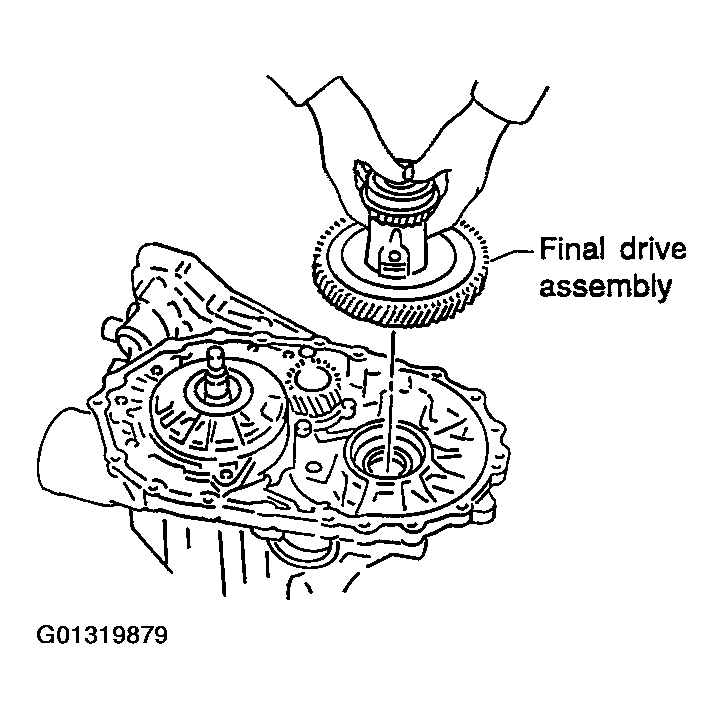

    Fig 1: Installing Final Drive Assembly On Transmission Case
    G01319879Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Install oil tube on converter housing.

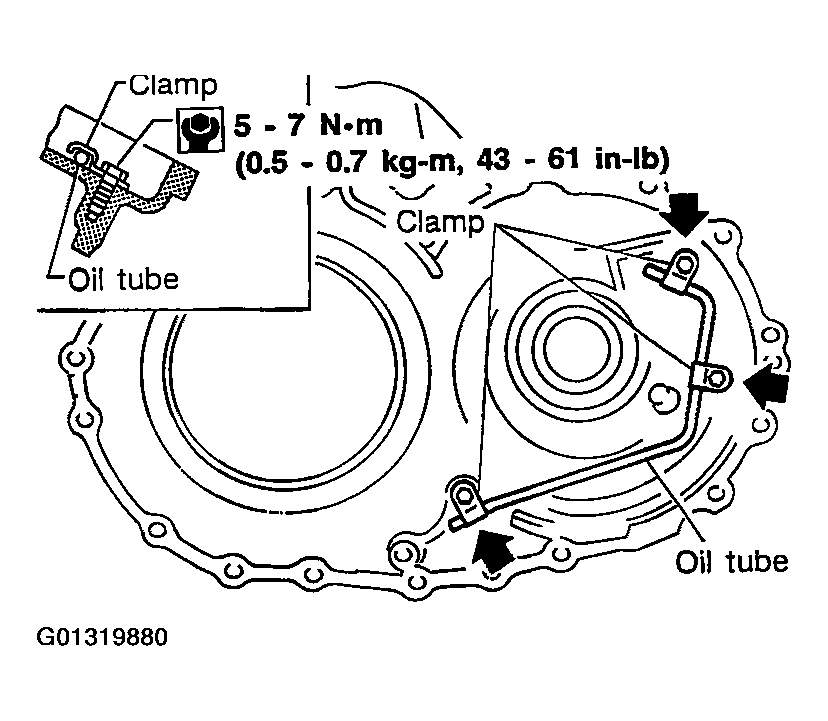

    Fig 2: Locating Oil Tube Clamp
    G01319880Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Install O-ring on differential oil port of transmission case.
  4. Install converter housing on transmission case.
    • Apply locking sealant to mating surface of converter housing.
    Fig 3: Identifying Bolt And Length Specifications Chart
    G01319881Courtesy of NISSAN MOTOR CO., U.S.A.

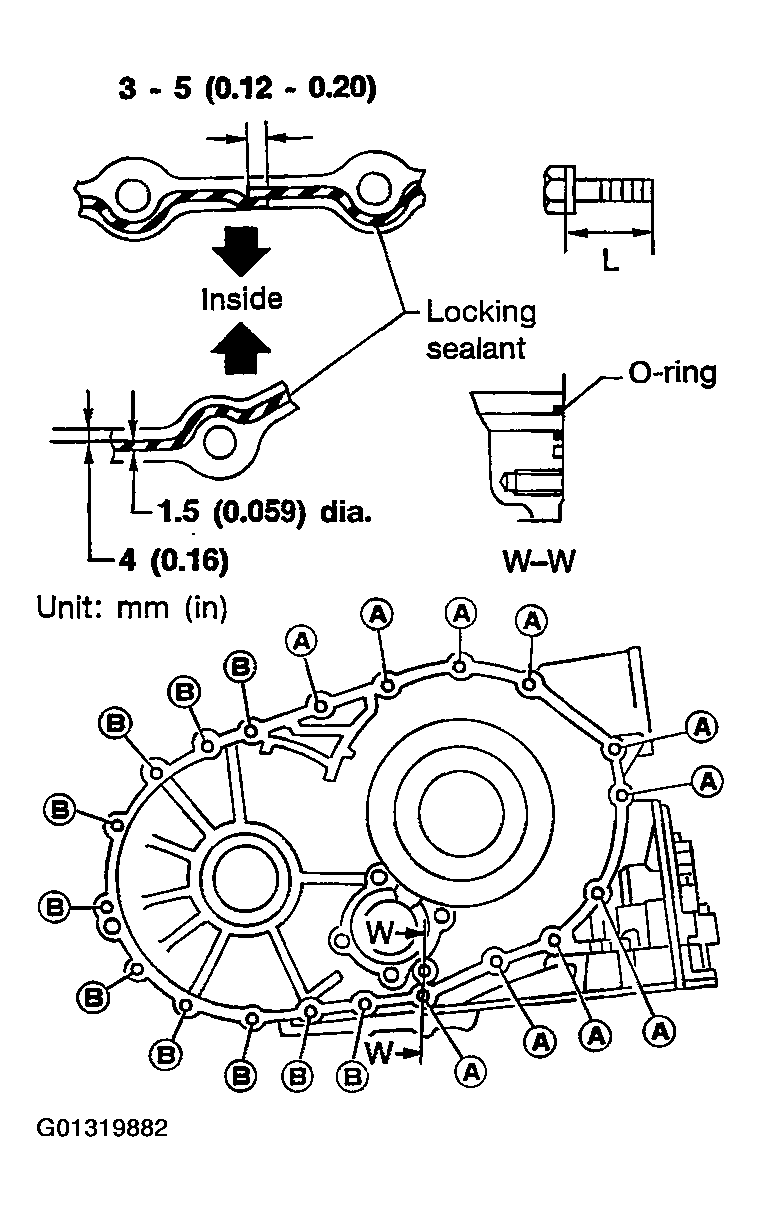

    Fig 4: Identifying Placement Of Convertor Housing Bolts
    G01319882Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Install accumulator piston.
    1. Check contact surface of accumulator piston for damage.
      Fig 5: Identifying Contact Surface Of Accumulator Piston
      G01319883Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install O-rings on accumulator piston.
      • Apply ATF to O-rings.

        Accumulator piston O-rings: Refer to  "O-RING ".

      Fig 6: Identifying O-Rings Of Accumulator Piston
      G01319884Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Install accumulator pistons and return springs on transmission case.
      • Apply ATF to inner surface of transmission case.

        Return springs: Refer to  "RETURN SPRING ".

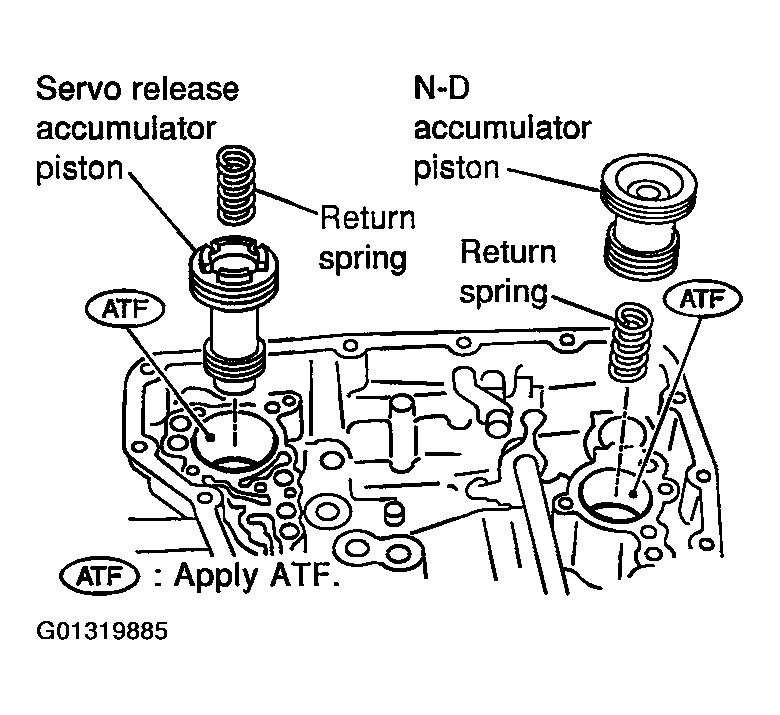

      Fig 7: Installing Accumulator Pistons And Return Springs On Transmission Case
      G01319885Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Install lip seals for band servo oil holes on transmission case.

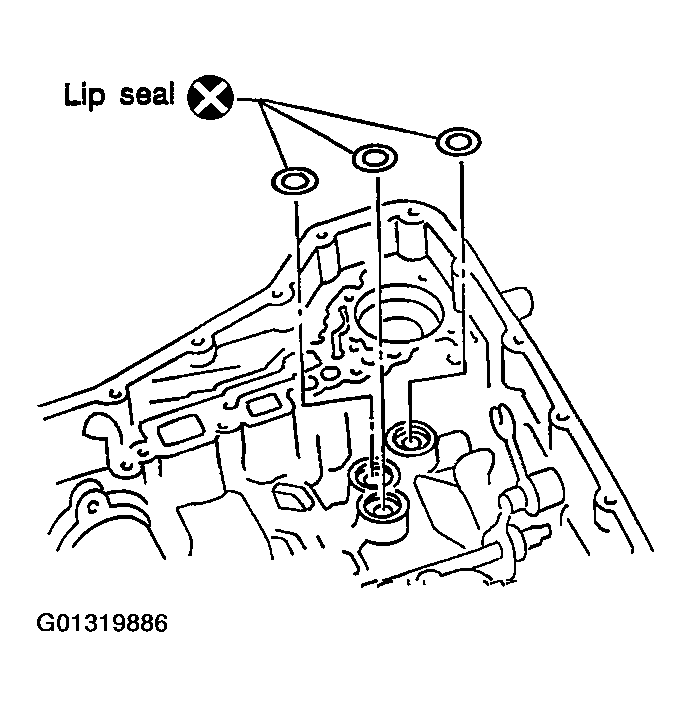

    Fig 8: Installing Lip Seals For Band Servo Oil Holes
    G01319886Courtesy of NISSAN MOTOR CO., U.S.A.

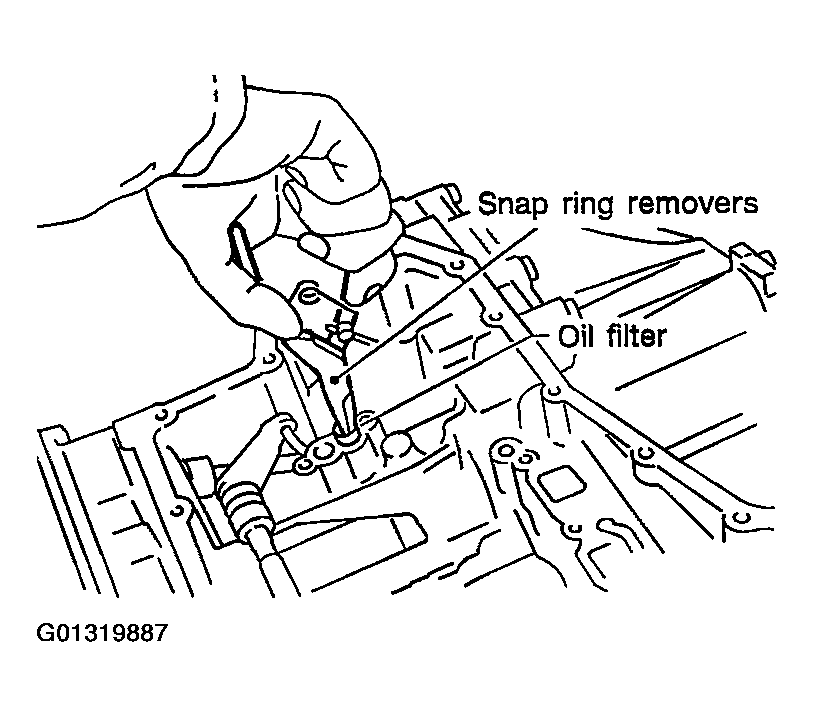

    Fig 9: Identifying Oil Filter
    G01319887Courtesy of NISSAN MOTOR CO., U.S.A.
    • Apply petroleum jelly to lip seals.
  7. Install control valve assembly.
    1. Insert manual valve into control valve assembly.
      • Apply ATF to manual valve.

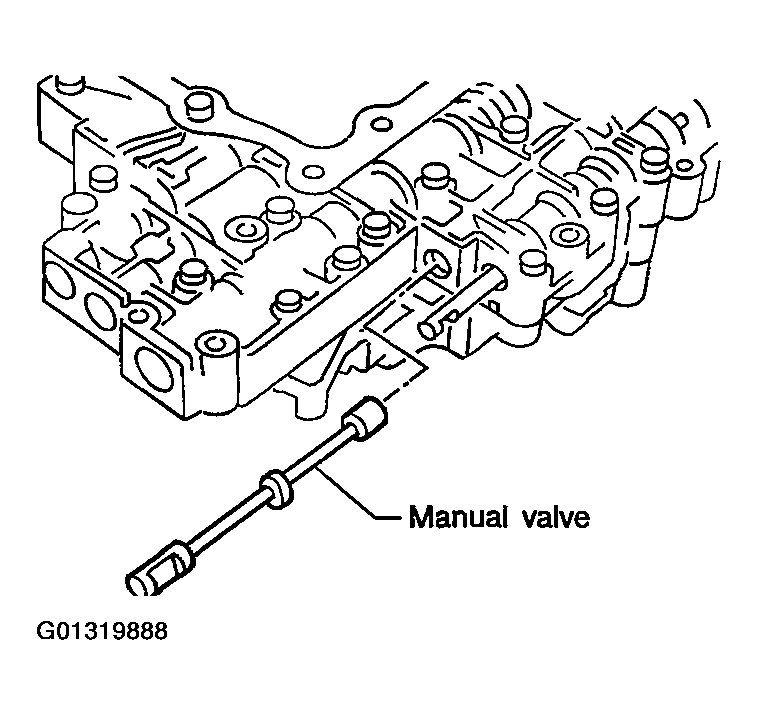

      Fig 10: Identifying Manual Valve
      G01319888Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Pass solenoid harness through transmission case and install terminal body on transmission case by pushing it.
    3. Install stopper ring to terminal body.

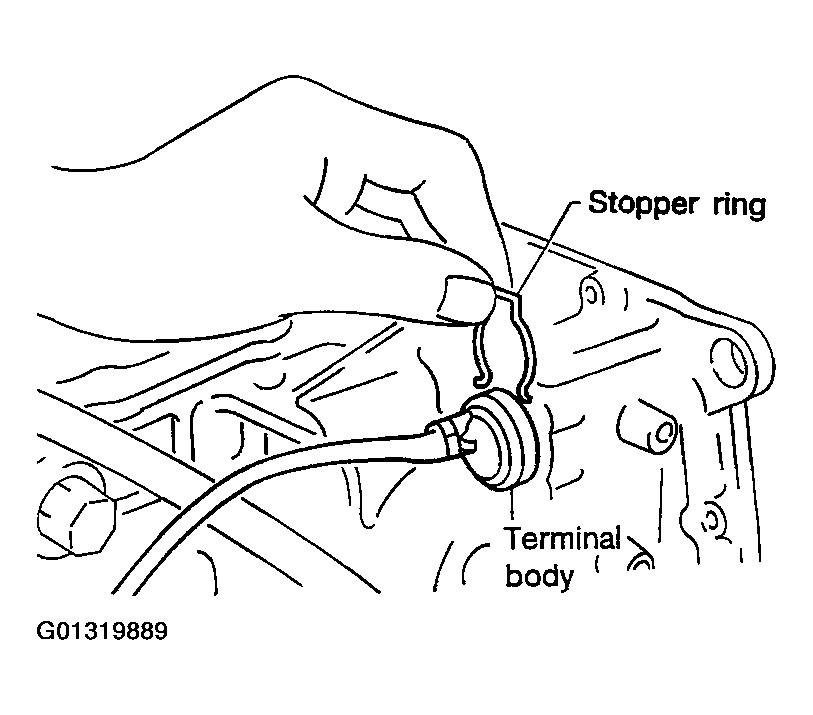

      Fig 11: Identifying Stopper Ring
      G01319889Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Tighten bolts , and .

      : 7 - 9 N.m (0.7 - 0.9 kg-m, 61 - 78 in-lb)

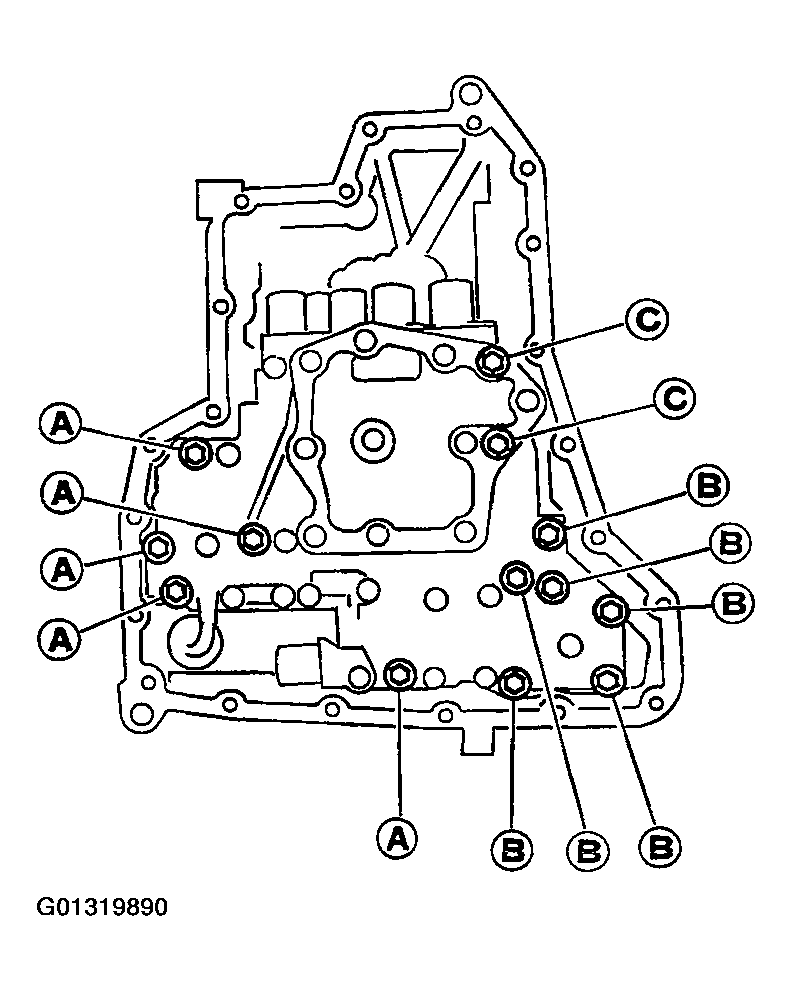

      Fig 12: Identifying Bolts A, B And C
      G01319890Courtesy of NISSAN MOTOR CO., U.S.A.

      Bolt length, number and location

      Fig 13: Bolts Length And Number Chart
      G01319891Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Install oil pan
    1. Attach magnet to oil pan.
      Fig 14: Locating Oil Pan Magnet
      G01319892Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install new oil pan gasket on transmission case.
    3. Install oil pan on transmission case.
      • Always replace oil pan bolts as they are self-sealing bolts.
      • Tighten the bolts in a criss-cross pattern to prevent dislocation of gasket.
    4. Fig 15: Locating Oil Pan Bolts
      G01319893Courtesy of NISSAN MOTOR CO., U.S.A.
    5. Tighten drain plug to specified torque.
  9. Install PNP switch.
    1. Set manual shaft in "P" position.
    2. Temporarily install PNP switch on manual shaft.

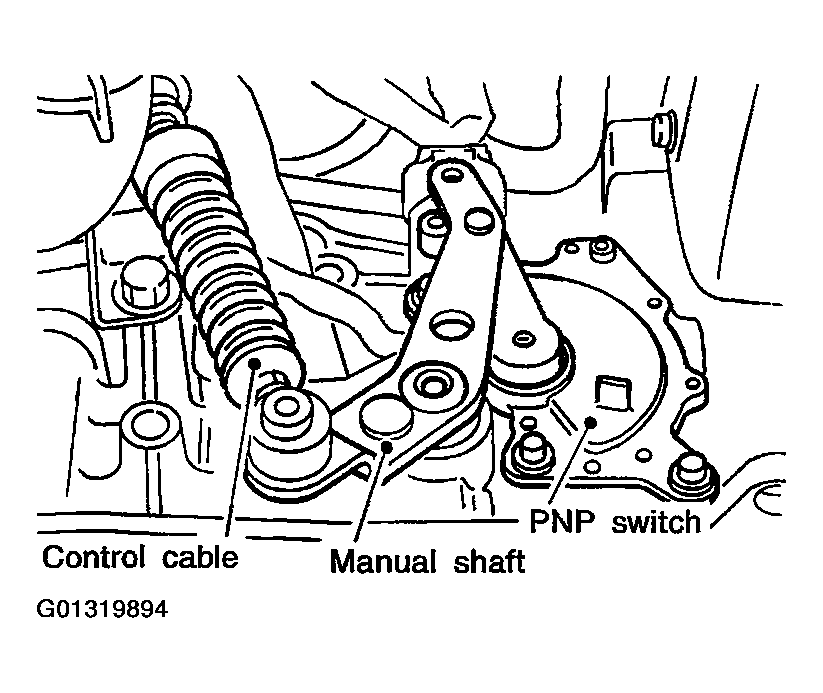

    3. Fig 16: Identifying Control Cable, Manual Shaft And PNP Switch
      G01319894Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Move selector lever to "N" position.
    5. Use a 4 mm (0.157 in) pin for this adjustment.
      1. Insert the pin straight into the manual shaft adjustment hole.
      2. Rotate PNP switch until the pin can also be inserted straight into hole in PNP switch.
    6. Tighten PNP switch fixing bolts.
    7. Remove pin from adjustment hole after adjusting PNP switch.

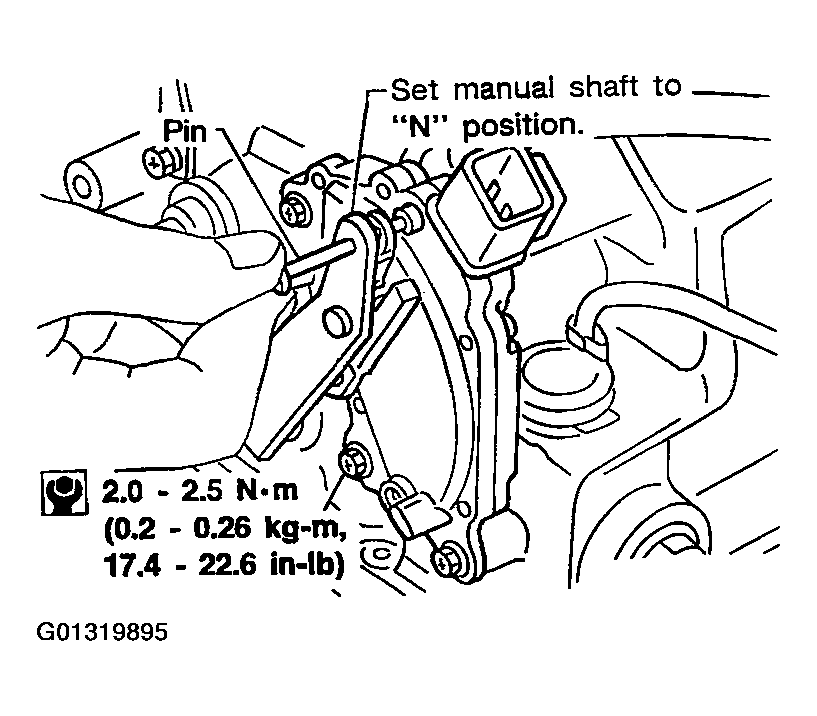

    Fig 17: Setting Manual Shaft To "N" Position
    G01319895Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Install oil charging pipe and oil cooler tube to transmission case.

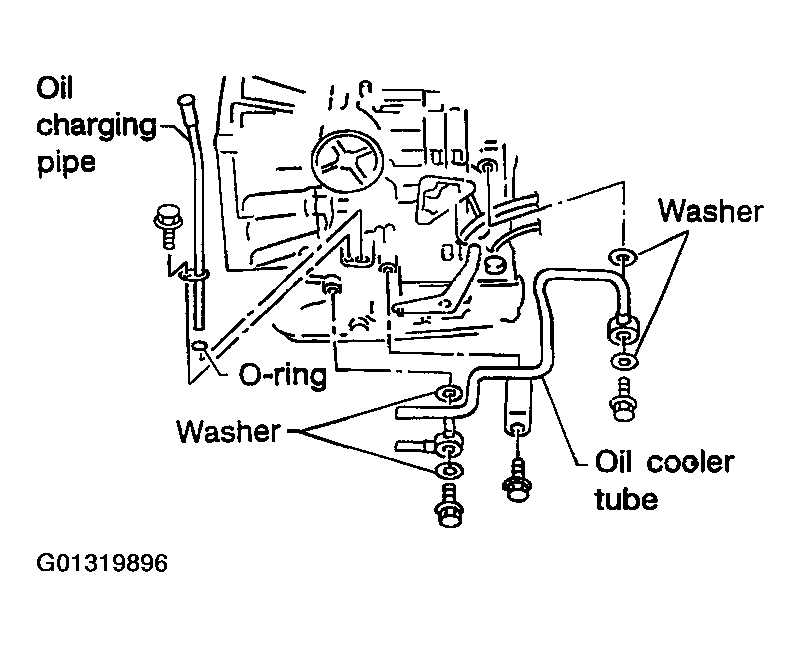

    Fig 18: Identifying Oil Charging Pipe And Oil Cooler Tube
    G01319896Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Install torque converter.
    1. Pour ATF into torque converter.
      • Approximately 1 liter (1-1/8 US qt, 7/8 lmp qt) of fluid is required for a new torque converter.
      • When reusing old torque converter, add the same amount of fluid as was drained.
      Fig 19: Pouring ATF Into Torque Converter
      G01319897Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Install torque converter while aligning notches of torque converter with notches of oil pump.

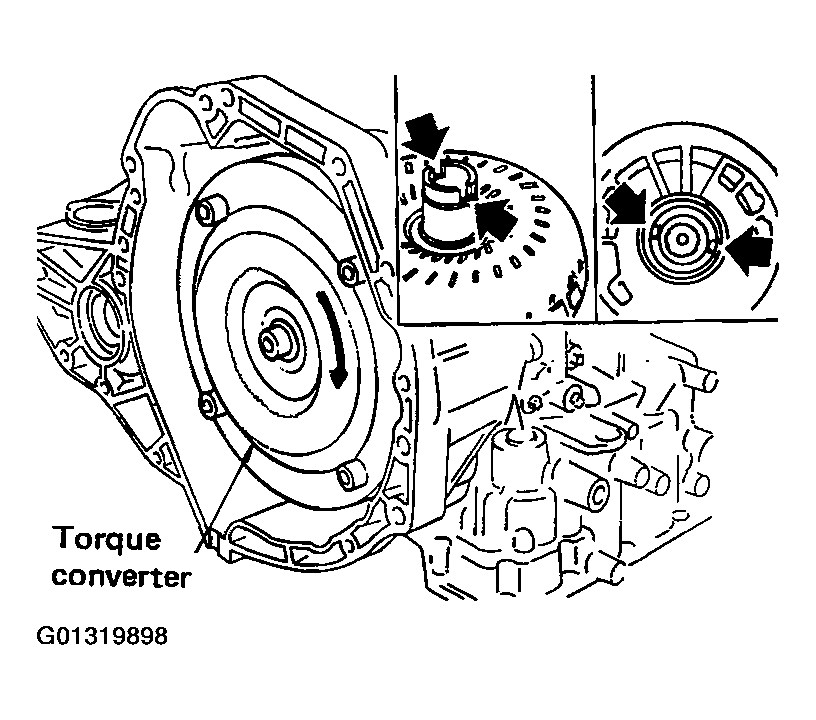

      Fig 20: Locating Notches Of Oil Pump
      G01319898Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Measure distance "A" to check that torque converter is in proper position.

      Distance "A": 21.1 mm (0.831 in)

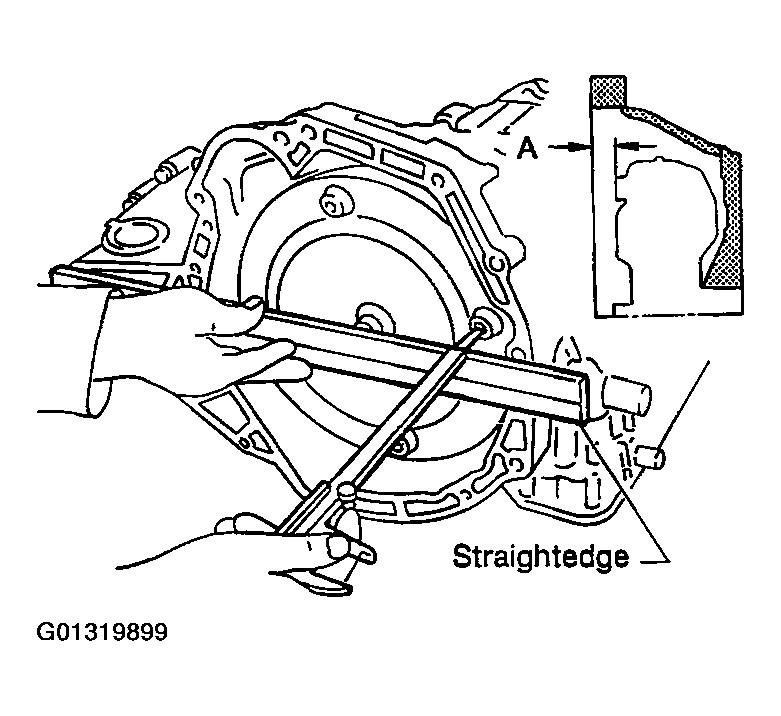

      Fig 21: Measuring Distance "A"
      G01319899Courtesy of NISSAN MOTOR CO., U.S.A.
