O-Ring And Refrigerant Connection: Notes

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The new and former refrigerant connections use different O-ring configurations. Do not confuse O-rings since they are not interchangeable. If a wrong O-ring is installed, refrigerant will leak at, or around, the connection.

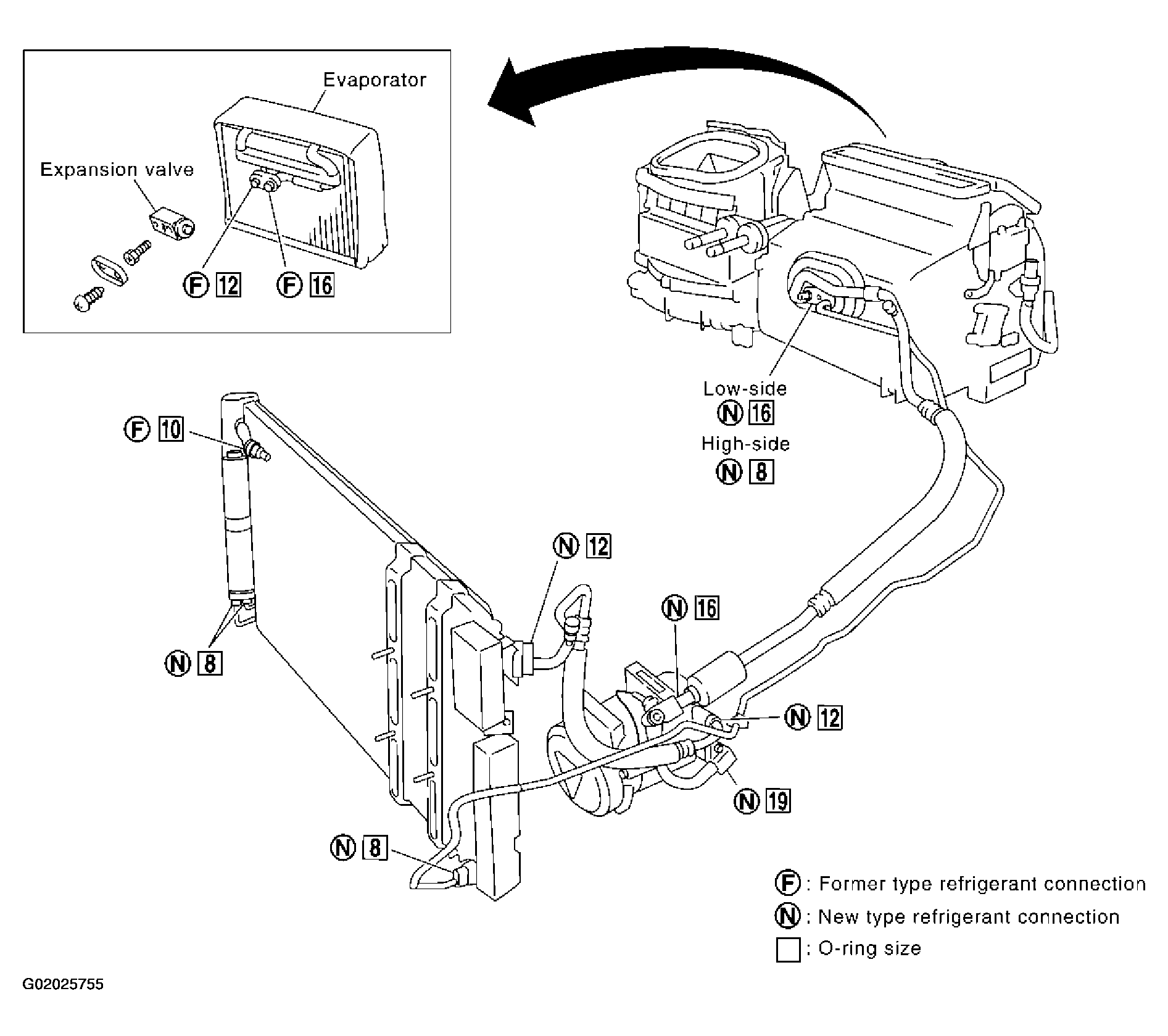

Fig 1: Locating Refrigerant Connection
G02025755Courtesy of NISSAN MOTOR CO., U.S.A.
