SLIP Lamp

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Touch "ON" and "OFF" on screen. Make sure SLIP indicator lamp operates as shown in Fig 1 .

Fig 1: SLIP Lamp Condition Table
G02157853Courtesy of NISSAN MOTOR CO., U.S.A.

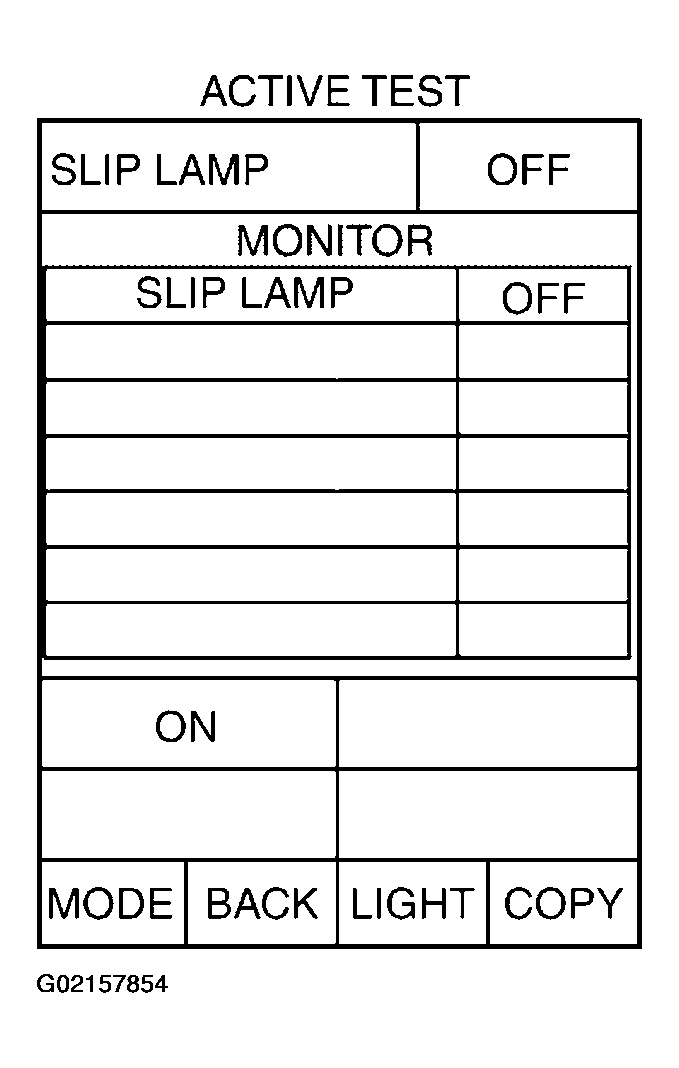

Fig 2: Touch ON And OFF On Screen
G02157854Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: If "OFF" is touched on screen during active test, VDC OFF indicator lamp, SLIP indicator lamp, and ABS warning lamp all turn ON for a moment. This is normal.
