Limit Switch Circuit Check (Passenger Side)

WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK POWER WINDOW SUB-SWITCH (PASSENGER SIDE) LIMIT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window regulator (front passenger side) connector and ground.

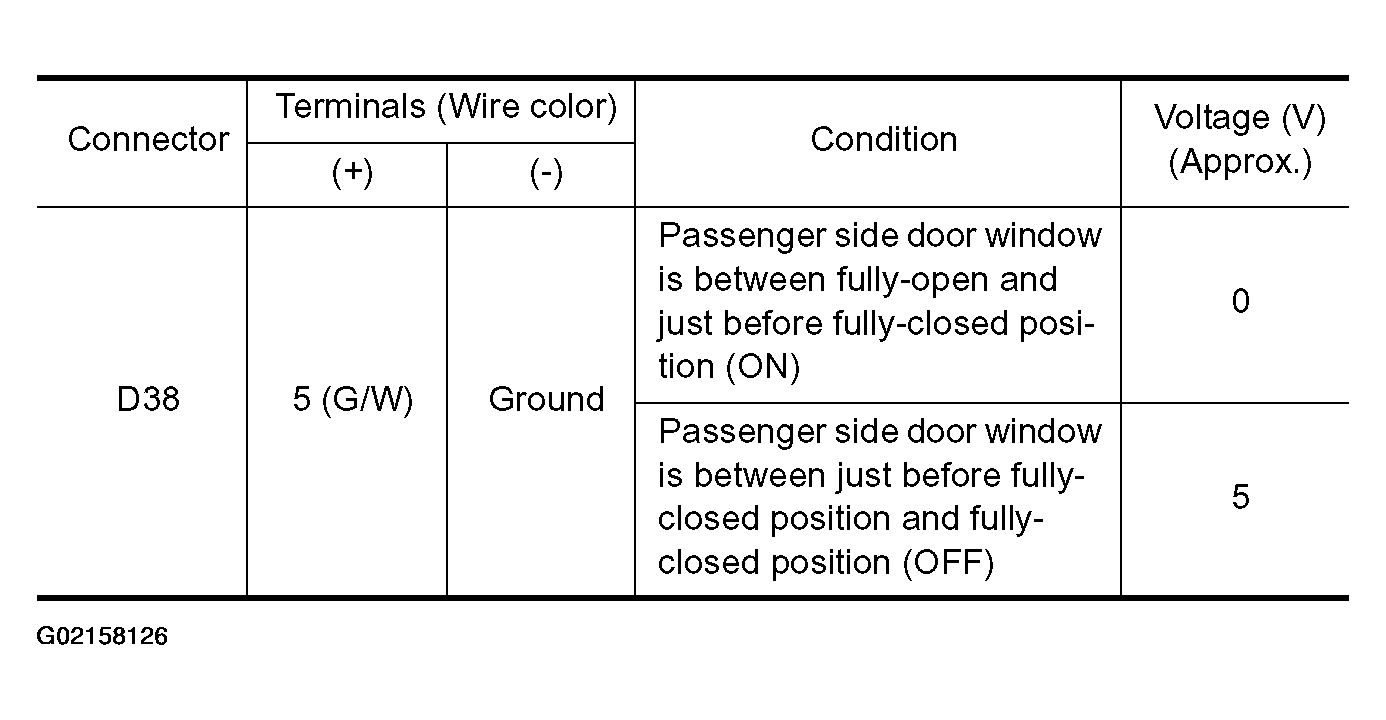

    Fig 1: Power Window Sub-Switch (Passenger Side) Limit Signal Reference Data Chart
    G02158126Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 2: Checking Voltage Between Power Window Regulator (Front Passenger Side) Connector And Ground
    G02158127Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Limit sw circuit is OK.
    2. NG : GO TO 2.
  2. CHECK LIMIT SWITCH GROUND CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect power window regulator (front passenger side) connector.
    3. Check continuity between power window regulator (front passenger side) connector D38 terminal 6 and ground.
      1. 6 (W/B) - Ground: Continuity should exist.

    OK or NG

    1. OK : GO TO  4
    2. NG : GO TO 3
    Fig 3: Checking Continuity Between Power Window Regulator (Front Passenger Side) And Ground
    G02158128Courtesy of NISSAN MOTOR CO., U.S.A.
  3. CHECK HARNESS CONTINUITY
    1. Disconnect power window sub-switch (front passenger side) connector.
    2. Check continuity between power window regulator (front passenger side) connector D38 terminal 6 and power window sub-switch (front passenger side) connector D36 terminal 20.
      1. 6 (W/B) - 20 (W/B): Continuity should exist.

    OK or NG

    1. OK : Replace power window sub-switch (front passenger side).
    2. NG : Repair or replace harness between power window sub-switch and power window regulator (front passenger side).
    Fig 4: Checking Continuity Between Connector D38 And Connector D36
    G02158129Courtesy of NISSAN MOTOR CO., U.S.A.
  4. CHECK POWER WINDOW SUB-SWITCH (FRONT PASSENGER SIDE) OUTPUT SIGNAL
    1. Turn ignition switch ON.
    2. Check voltage between power window sub-switch (front passenger side) connector D36 terminal 16 and ground.
      1. 16 (G/W) - Ground: Approx. 5V

    OK or NG

    1. OK : GO TO 5
    2. NG : Replace power window sub-switch (front passenger side).
    Fig 5: Checking Voltage Between Connector D36 And Ground
    G02158130Courtesy of NISSAN MOTOR CO., U.S.A.
  5. CHECK HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect power window sub-switch (front passenger side) connector.
    3. Check continuity between power window sub-switch (front passenger side) connector D36 terminal 16 and power window regulator (front passenger side) connector D38 terminal 5.
      1. 16 (G/W) - 5 (G/W): Continuity should exist.

    OK or NG

    1. OK : GO TO 6
    2. NG : Repair or replace harness between power window subswitch and power window regulator (front passenger side).
    Fig 6: Checking Continuity Between Connector D36 And Connector D38
    G02158131Courtesy of NISSAN MOTOR CO., U.S.A.
  6. CHECK LIMIT SWITCH
    1. Connect power window regulator (front passenger side) and power window sub-switch (front passenger side) connector.
    2. Turn ignition switch ON.
    3. Check continuity between power window regulator (front passenger side) connector D38 terminal 5 and 6.

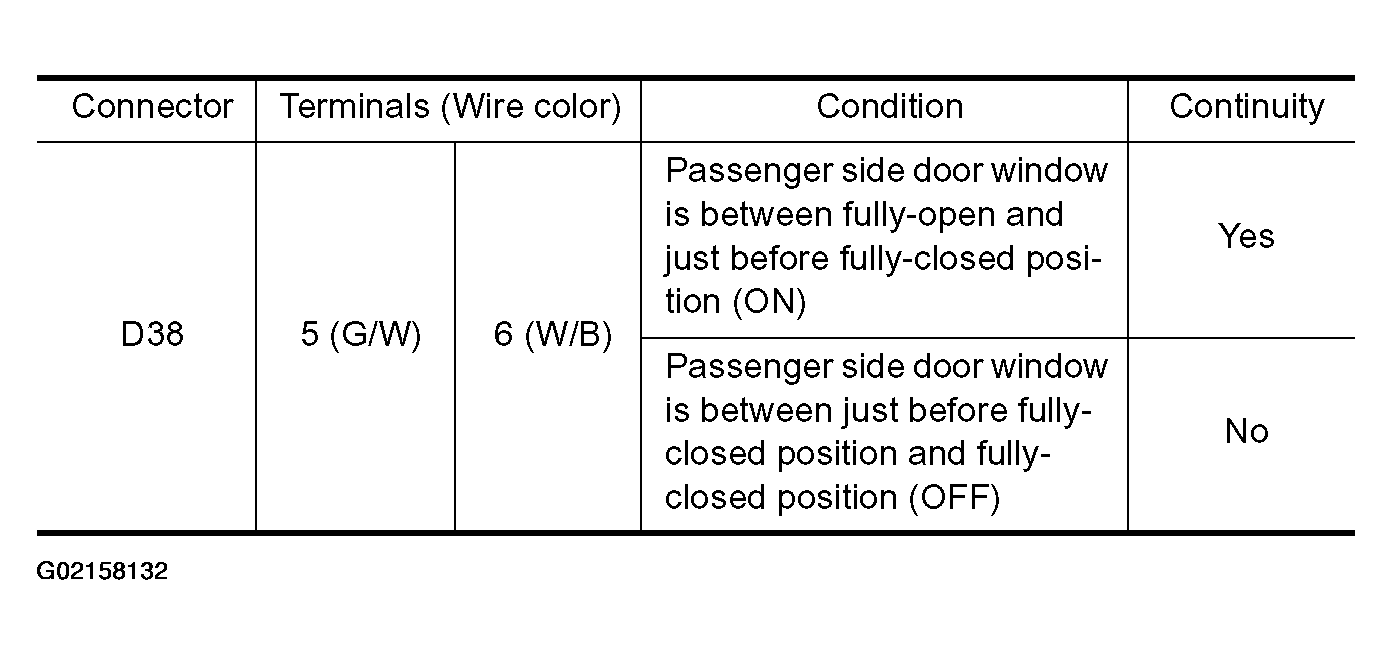

    Fig 7: Limit Switch Reference Data Table
    G02158132Courtesy of NISSAN MOTOR CO., U.S.A.
    Fig 8: Checking Continuity Between Connector D38 Terminals 5 And 6
    G02158133Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK : Check the condition of the harness and the connector.
    2. NG : Replace power window regulator (front passenger side).
