With Consult-II

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch ON.

Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT-II. Then check the "P/N POSI SW" signal under the following conditions.

PNP SWITCH POSITION - SIGNAL

Position (Shift lever)	Known-good signal
N or P position (A/T)	ON
Neutral position (M/T)	-
Except above position	OFF

If NG, go to Diagnostic Procedure .

If OK, go to following step.

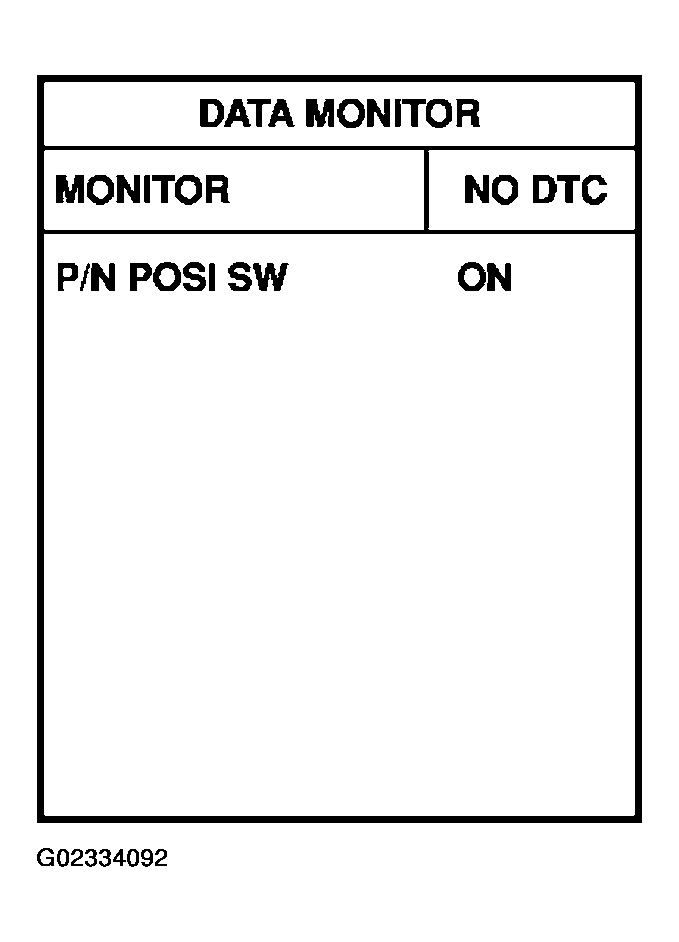

Fig 1: CONSULT-II Display - P/N POSI SW

Courtesy of NISSAN MOTOR CO., U.S.A.

Select "DATA MONITOR" mode with CONSULT-II.
Start engine and warm it up to normal operating temperature.

Maintain the following conditions for at least 60 consecutive seconds.

ENGINE CONDITION SPECIFICATION

ENG SPEED	1,400 - 6375 RPM
COOLAN TEMP/S	More than 70°C (158°F)
B/FUEL SCHDL	2.0 - 31.8 msec
VHCL SPEED SE	More than 64 km/h (40 MPH)
Shift lever	Suitable position

If 1st trip DTC is detected, go to Diagnostic Procedure .

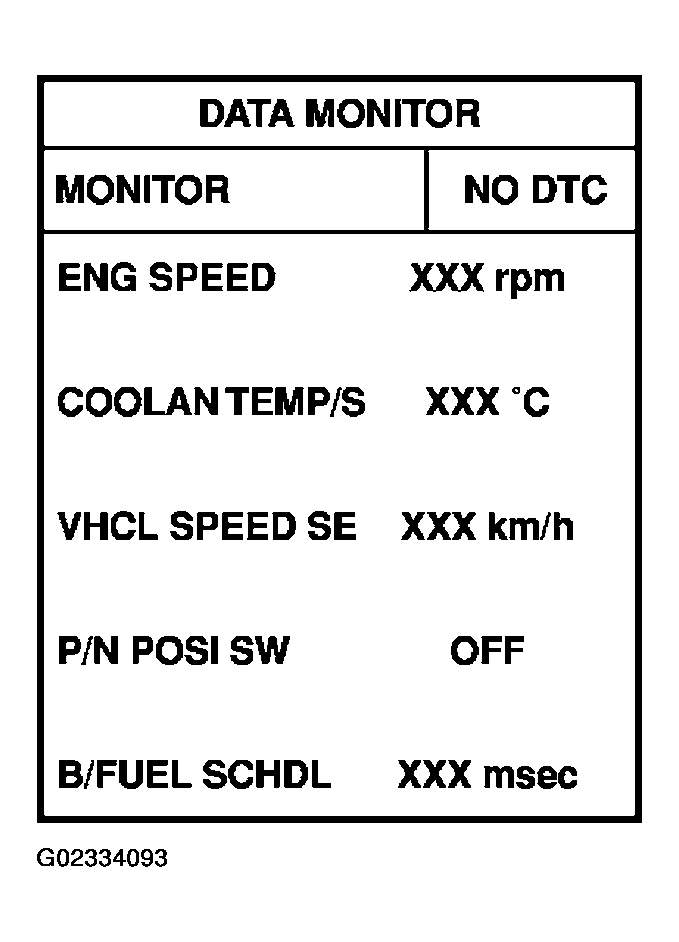

Fig 2: CONSULT-II Display - DATA MONITOR Engine Condition
Courtesy of NISSAN MOTOR CO., U.S.A.
